Hexagonal Aluminum Extrusion: Why Engineers Pick Hex Over Round Or Square

Understanding Hexagonal Aluminum Extrusion Fundamentals

When you need a profile that combines structural strength with practical functionality, hexagonal aluminum extrusion stands out as an engineering favorite. This manufacturing process forces heated aluminum alloy through a specially designed die to create a six-sided profile that offers distinct advantages over round or square alternatives.

But what exactly makes this shape so valuable to engineers and designers? Let's break it down.

What Makes Hexagonal Profiles Unique

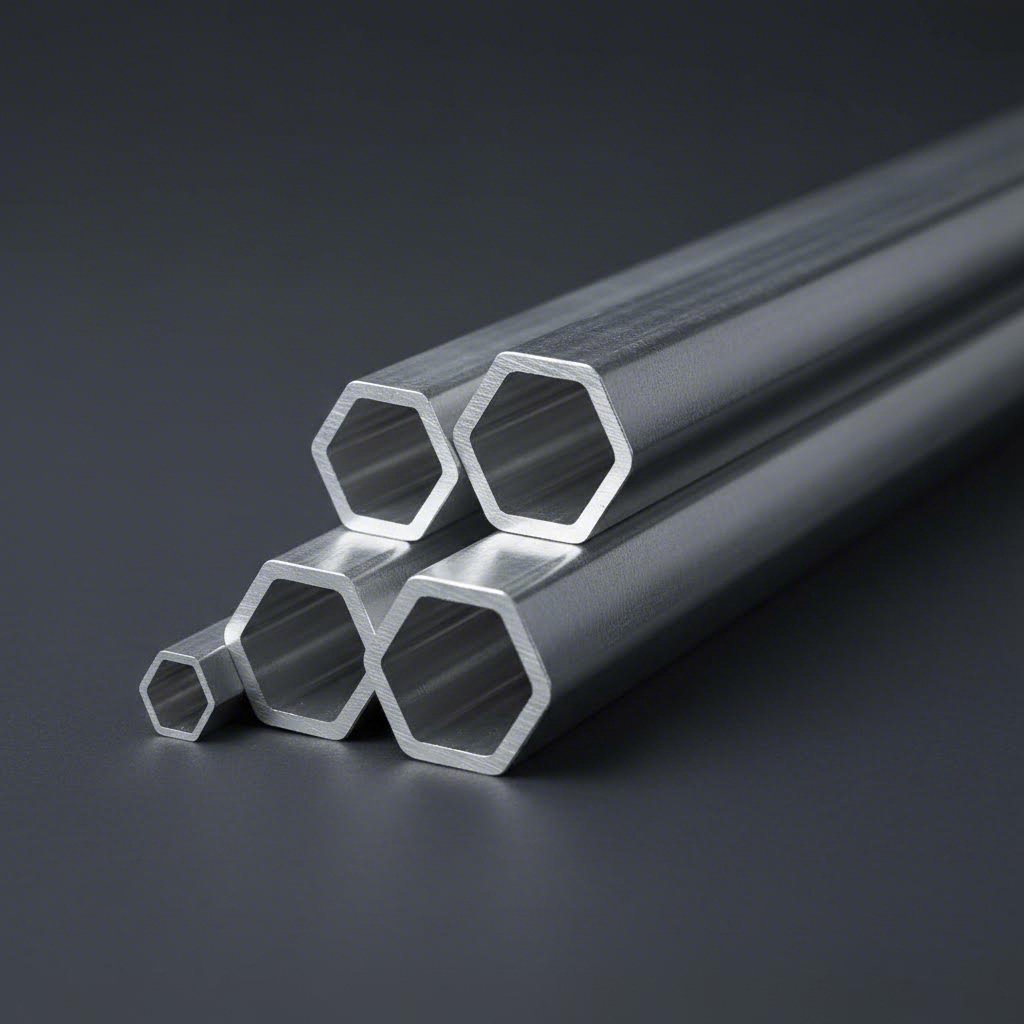

A hexagonal aluminum extrusion features six equal sides arranged at 120-degree angles, creating what machinists call "wrench flats." These flat surfaces allow tools to grip the profile securely—something you simply cannot achieve with round stock. Imagine trying to tighten a cylindrical bolt with a wrench. It would slip immediately. The hex shape solves this problem elegantly.

The unique six-sided cross-section also provides easier clamping and stability during machining processes. According to industry sources, this geometric advantage results in higher accuracy and efficiency when fabricating components from hex stock.

The Six-Sided Advantage in Aluminum Engineering

Engineers choose hexagonal profiles over other shapes for several compelling reasons. The geometry distributes stress differently than round or square alternatives, and the flat surfaces enable manual adjustment or fitting into hexagonal sockets with minimal effort.

Here's an important distinction many suppliers overlook: hexagonal aluminum extrusions come in two primary forms.

• Hex Tubes (Hollow): A hexagonal aluminum tube features a hollow center, reducing weight while maintaining the external hex geometry. These are ideal when you need the gripping advantages of the hex shape without unnecessary material weight.
• Hex Bars (Solid): Solid hex bar stock offers maximum strength and is commonly machined into fasteners, shafts, and structural components where material removal is part of the manufacturing process.

Understanding this difference matters because hollow hex tubing serves entirely different applications than solid bars, despite sharing the same external profile.

Key Characteristics That Define Hex Extrusions

What sets quality hexagonal aluminum extrusions apart? Here are the defining features you should understand:

• Lightweight with High Strength-to-Weight Ratio: Aluminum is inherently lightweight while providing excellent strength, making hex extrusions ideal for structural applications where minimizing weight is crucial.
• Natural Corrosion Resistance: A protective oxide layer forms naturally on the aluminum surface, providing durability in outdoor and industrial environments without additional treatment.
• Precision Dimensional Tolerances: Quality hex profiles are manufactured with precise tolerances, ensuring consistent performance and compatibility in high-precision applications.
• Smooth Surface Finish Options: These extrusions can be polished, anodized, powder coated, or treated with various finishes depending on your application requirements.
• Versatile Material Options: Common alloys include 6061 and 6063, each offering different mechanical properties suited to specific engineering needs.

The hexagonal shape also allows for efficient stacking and nesting during storage and shipping—a practical advantage that reduces logistics costs for high-volume applications. Whether you're designing modular frameworks, manufacturing fasteners, or creating architectural elements, understanding these fundamentals helps you specify the right profile for your project.

How Hexagonal Aluminum Extrusions Are Manufactured

Have you ever wondered how a solid block of aluminum transforms into a perfectly symmetrical hexagonal profile? The manufacturing process behind hexagonal tubing and hex bars involves precise engineering, specialized tooling, and carefully controlled conditions. Understanding this process helps you appreciate why quality varies between suppliers—and why specification matters.

From Aluminum Billet to Finished Profile

The journey from raw material to finished hexagonal aluminium tube follows a well-defined sequence. Each stage builds upon the previous one, and precision at every step determines the final product quality.

1. Billet Preparation and Heating: The process begins with cylindrical aluminum billets—typically 6 to 9 inches in diameter. These billets are preheated to temperatures between 750°F and 925°F (400°C to 500°C), softening the metal enough to flow through the die while maintaining its structural integrity. Temperature control is critical; too hot and the aluminum becomes unworkable, too cold and it won't flow properly.

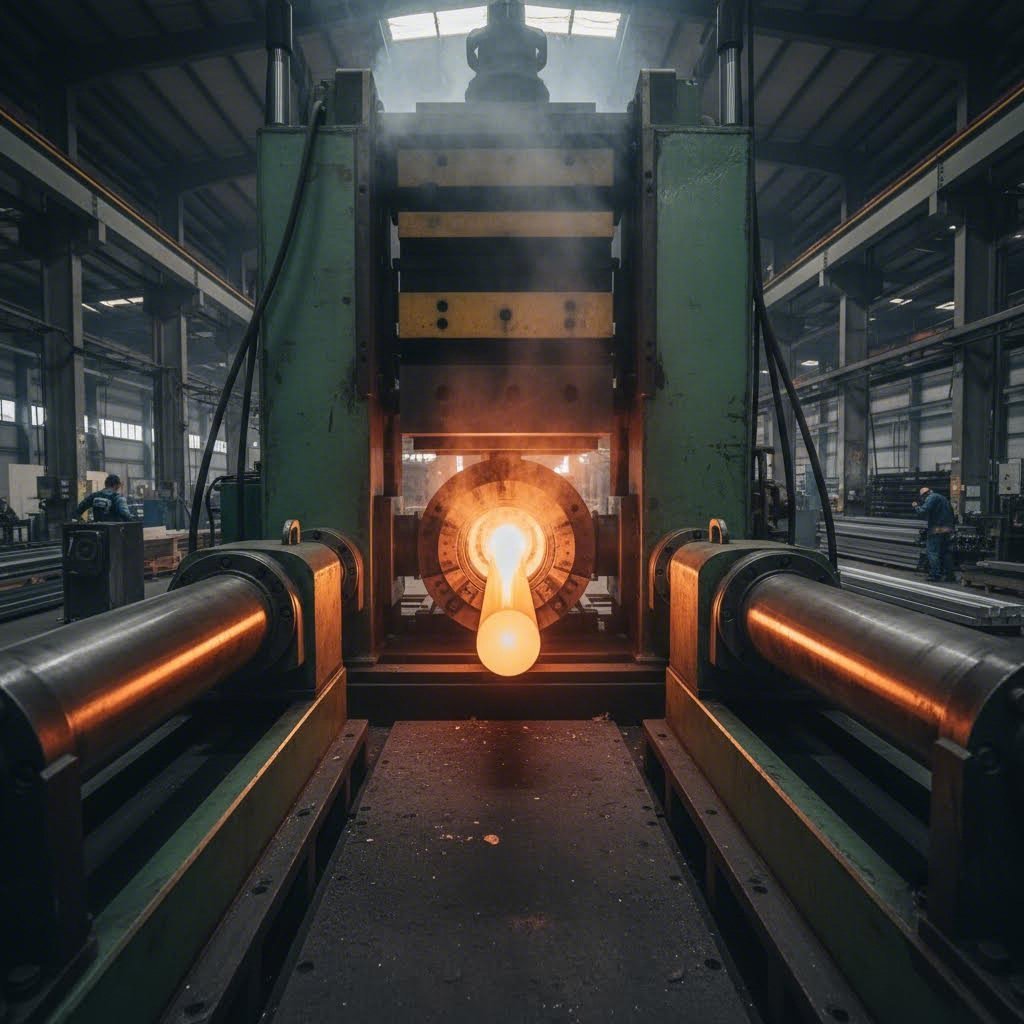

2. Die Loading and Pressing: The heated billet is transferred to the extrusion press where a powerful ram forces it through the hexagonal die opening. Press tonnage ranges from 600 to over 5,500 tons depending on the profile complexity and size. As the aluminum passes through the die, it assumes the precise six-sided shape engineered into the tooling.
3. Cooling and Quenching: Once the aluminium hex tube emerges from the press, it travels along a runout table where cooling begins. Depending on the alloy and required properties, profiles may be air-cooled or water-quenched. This cooling rate affects the metal's final mechanical characteristics.
4. Stretching and Straightening: Extruded profiles often exhibit slight curves or twists. A stretching operation applies controlled tension to straighten the profile and relieve internal stresses, ensuring dimensional accuracy across all six sides.
5. Cutting to Length: After straightening, profiles are cut to specified lengths—typically 8 to 24 feet for standard production runs. Precision cutting equipment ensures clean, square ends ready for further processing.
6. Heat Treatment (Aging): For alloys requiring enhanced mechanical properties, profiles undergo heat treatment. According to industry data, untreated 6061 aluminum (T4) has a tensile strength of 241 MPa, while heat-treated 6061 (T6) reaches 310 MPa—a significant strength improvement.
7. Surface Finishing: Final treatments such as anodizing, powder coating, or mechanical polishing prepare the hexagonal extrusion for its intended application.

Die Design for Hexagonal Shapes

The die is where the magic happens—and where precision engineering becomes absolutely essential. Creating a hexagonal profile presents unique challenges that round or square dies simply don't face.

Why is hex die design so demanding? The aluminum must flow uniformly to all six corners of the die opening simultaneously. Any imbalance creates profiles with uneven wall thickness, inconsistent dimensions, or visible surface defects. Research published in the Journal of Mechanical Science and Technology demonstrates that streamlined die designs using cosine curve profiles produce more efficient extrusion with lower forming forces compared to conventional shear-faced dies.

Modern die design employs advanced techniques including:

• Area Mapping: Mathematical transformation of peripheral points from the round billet to corresponding positions on the hexagonal output
• Finite Element Analysis: Computer simulation predicts stress distribution and material flow before physical tooling is manufactured
• Streamlined Entry Geometry: Curved entry surfaces reduce dead metal zones and improve dimensional consistency

For hollow hex tubes, the die design becomes even more complex. A mandrel must be precisely positioned within the die opening to create the internal cavity while maintaining uniform wall thickness across all six sides.

Alloy Selection for Hexagonal Extrusions

Not all aluminum alloys extrude equally well—and the alloy you choose directly impacts both manufacturability and final performance.

The 6063 alloy is the most popular choice for hexagonal aluminum extrusions, particularly for applications requiring thin walls and architectural features. Its popularity stems from excellent extrudability, superior anodizing response, and the high-quality surface finish it provides. When you need a decorative hex profile with clean lines, 6063 delivers.

For applications demanding higher strength, 6061 offers better mechanical properties with good weldability and corrosion resistance. The 6005 alloy provides a middle ground—stronger than 6063 with better extrusion characteristics than 6082—making it suitable for structural hexagonal tubing in furniture and rail applications.

The alloy selection ultimately depends on your priorities: Will the profile undergo significant machining? Does it need maximum corrosion resistance? Is surface appearance critical? Answering these questions guides you toward the optimal material choice for your hexagonal extrusion project.

Mechanical Properties and Performance Characteristics

You've selected the right alloy and understand how hex profiles are manufactured. But here's the question that really matters: how will your hexagon tubing actually perform under load? Engineers need hard numbers—tensile strength, yield strength, hardness values—to make confident specification decisions. Let's dig into the mechanical properties that separate adequate hex pipe from exceptional structural components.

Strength Characteristics of Hex Profiles

The mechanical performance of hexagonal aluminum extrusions depends primarily on two factors: the base alloy composition and the temper designation. Think of temper as the "training" your aluminum receives—heat treatment and aging processes that dramatically alter its strength characteristics.

Two alloys dominate the hex extrusion market: 6061-T6 and 6063-T5. While they share approximately 99% of their alloy composition, their mechanical properties differ significantly. According to MakeItFrom.com, these differences become critical when selecting materials for demanding applications.

Notice the pattern? 6061-T6 delivers nearly double the strength of 6063-T5 across most categories. However, 6063-T5 offers better thermal conductivity (210 W/m-K versus 170 W/m-K) and superior electrical conductivity—making it the preferred choice for heat sinks and electrical applications despite lower mechanical strength.

Performance Under Load

Here's where hexagonal geometry becomes genuinely interesting. Unlike round profiles that distribute stress uniformly across their circular cross-section, hex profiles create distinct stress concentration patterns at their corners and flat surfaces.

What does this mean practically? When you apply torque to a t hexagon profile—like tightening a hex bolt—the flat wrench surfaces transfer force efficiently without the slippage that round profiles experience. Research published in Materials Today on hexagonal aluminum honeycomb structures demonstrates how this geometry handles stress distribution in sandwich panel applications, noting that face sheet thickness significantly influences overall structural behavior.

For hex pipe applications, consider these performance factors:

• Bending Loads: The flat sides provide natural orientation reference points, ensuring consistent load alignment during assembly
• Torsional Stress: Wrench flats enable high torque transmission without surface damage—critical for fastener and coupling applications
• Compression: The six-sided geometry resists buckling differently than round tubes, with flat surfaces potentially providing greater stability in certain orientations
• Impact Resistance: 6061-T6 offers a fracture toughness of 29 MPa-m½, according to ASM material data, making it suitable for applications requiring impact absorption

The practical takeaway? Choose 6061-T6 when structural integrity is paramount—machinery components, aerospace fittings, or load-bearing frames. Select 6063-T5 when appearance, extrudability, and corrosion resistance matter more than maximum strength.

When to Choose Hexagonal Over Other Profile Shapes

You understand the fundamentals, manufacturing process, and mechanical properties of hex profiles. Now comes the decision engineers face constantly: should you specify hexagonal, round, or square aluminum extrusion for your project? Each shape solves different problems—and choosing incorrectly means compromised performance, wasted material, or unnecessary fabrication complexity.

Let's examine exactly when the hex shape earns its place in your design.

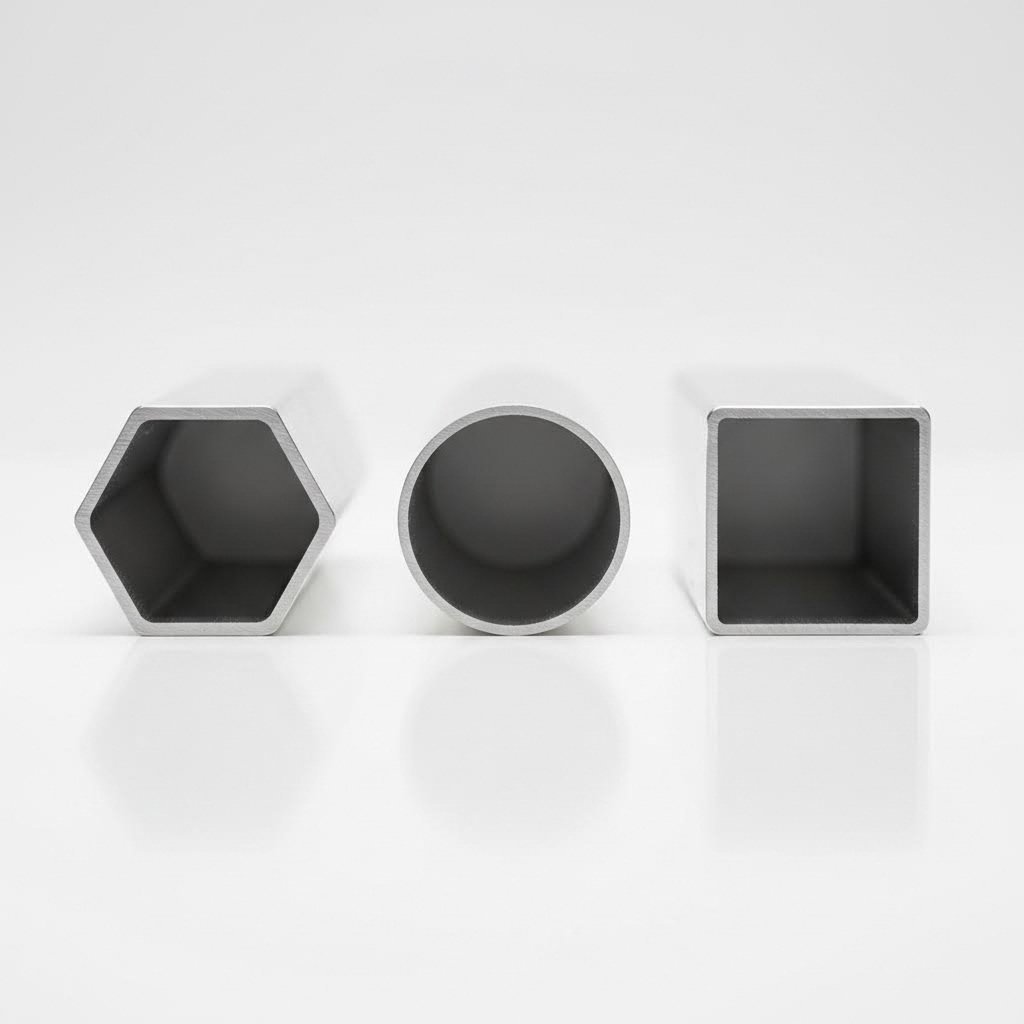

Hexagonal vs Round and Square Profiles

The geometry of your extrusion profile isn't decorative—it's a fundamental engineering decision that affects load transfer, connection design, and fabrication efficiency. According to Steel Hollow Section research, the tube profile matters as much as the material grade itself.

Round tubing excels at handling internal pressure and torsional loads due to its symmetrical stress distribution. Pipelines, handrails, and rotating shafts rely on this uniform geometry. Square tubing prioritizes stability and simple connections—flat sides make welding, bolting, and alignment straightforward.

So where does hexagonal fit? Right in the middle, offering capabilities neither round nor square can match.

Geometric Advantages for Specific Applications

Why do engineers specifically reach for hexagonal profiles? Three geometric advantages make the difference.

Wrench Flats for Tool Engagement: Imagine tightening a coupling that's recessed inside machinery. With round stock, you'd need specialized gripping tools or risk slippage. Hex tube steel or aluminum provides six flat surfaces that standard wrenches engage securely. This isn't just convenient—it's essential for applications requiring repeated adjustment or high-torque assembly.

Efficient Nesting for Storage and Shipping: Here's a practical advantage many overlook. Hexagonal profiles tessellate—they fit together without wasted space, exactly like honeycomb cells. This geometry reduces packaging volume and shipping costs for high-volume orders. According to MiniTec's application guide, hexagon-shaped enclosures can be "nested together like a beehive to save even more space."

Aesthetic Appeal for Architectural Applications: The six-sided profile offers visual interest that round and square simply cannot replicate. Furniture designers, architectural specifiers, and product engineers choose hex profiles when they need components that stand out while remaining functional.

T-Slot Hexagonal Extrusion for Modular Construction

Have you encountered T-slot hexagonal profiles? This specialized variant combines the gripping advantages of hex geometry with the modularity of T-slot framing systems.

Traditional T-slot extrusions use square or rectangular profiles with channels that accept sliding hardware. Hexagonal T-slot profiles take this further—they serve as angled posts that enable enclosures matching circular work envelopes. Robot cells, for example, often have circular reach patterns. Building a rectangular enclosure around a circular workspace wastes floor space. A hexagon-shaped enclosure follows the robot's natural work envelope more closely.

Applications benefiting from T-slot hex profiles include:

• Robot Enclosures: Six-sided safety barriers that minimize wasted perimeter space around circular automation cells
• Machine Guards: Protective barriers conforming to equipment with radial operating patterns
• Modular Workstations: Ergonomic configurations requiring angles other than 90 degrees
• Custom Clean Rooms: Hexagonal or octagonal shapes using angled connecting posts

The modularity advantage matters for production flexibility. Instead of welding custom frames, T-slot hex systems allow rapid reconfiguration as equipment or processes change.

Making the Right Profile Decision

Selecting a profile shape ultimately depends on matching geometry to real performance demands. Choose hexagonal when you need tool engagement, rotational control, or space-efficient nesting. Specify round profiles for pressure containment, torsional loads, or fluid handling. Select square or rectangular when connection simplicity and bidirectional strength matter most.

The right choice aligns tube shape with application requirements—and when geometry matches function, your aluminum works more efficiently throughout the project lifecycle.

Surface Finishes and Treatment Options

You've selected the right alloy, verified the mechanical properties, and confirmed hexagonal geometry suits your application. But here's a question that often separates good specifications from great ones: what surface finish does your aluminum hex bar need? The answer affects everything from corrosion resistance to visual appeal—and getting it wrong means premature failure or costly rework.

Let's explore the finishing options that transform raw hexagonal extrusions into application-ready components.

Surface Treatment Options for Hex Profiles

Every hexagonal aluminum extrusion starts with what manufacturers call a mill finish—the raw surface condition as it exits the extrusion die. According to Gabrian's finishing guide, mill finish surfaces may show die marks, oxidation, and a dull appearance. While acceptable for hidden structural components, most applications demand more.

Here are the primary surface treatment categories available for your anodized hexagonal extrusion or powder coated hex tube projects:

• Anodizing: An electrochemical process that thickens the natural oxide layer, dramatically improving corrosion and wear resistance. Unlike coatings that sit on top of the surface, anodizing becomes part of the aluminum itself. Color options are available through dye absorption, though the palette is more limited than paint-based finishes.
• Powder Coating: Dry polymer powder applied electrostatically and heat-cured into a thick, durable finish. Powder coated hex tube offers exceptional scratch resistance and virtually unlimited color options—ideal when visual impact matters as much as protection.
• PVDF Coating: Polyvinylidene fluoride resin-based coatings excel in exterior applications. According to industry sources, PVDF finishes are highly resistant to fading, corrosion, and chemical exposure—making them excellent for architectural hex profiles exposed to harsh environments.
• Mill Finish: The unprocessed state suitable only for applications where cost minimization outweighs durability and appearance concerns. Expect shorter service life in corrosive environments.
• Mechanical Finishes: Polishing, grinding, or abrasive blasting to achieve specific surface textures. Often used as preparation before other treatments or for specialized aesthetic requirements.

Matching Finishes to Application Requirements

Choosing between decorative and functional finishes isn't always straightforward. Sometimes you need both. Understanding how each treatment performs helps you match aluminum hex bar finish to real-world demands.

When Corrosion Resistance Matters Most: Anodizing creates an integral oxide layer that won't chip or peel like applied coatings. For hex tubing steel alternatives in marine environments or outdoor machinery, anodized aluminum provides decades of reliable service. PVDF coatings offer similar protection with added UV resistance for architectural applications like window frames and exterior cladding.

When Wear Resistance is Critical: Anodized surfaces are significantly harder than the base aluminum, resisting abrasion in high-contact applications. According to materials engineering experts, this increased surface hardness makes anodizing ideal for mechanical components experiencing repeated tool engagement or sliding contact.

When Appearance Drives the Decision: Powder coating wins for visual versatility. Need a specific Pantone color for brand consistency? Powder coating delivers. Require a matte finish that hides fingerprints? Available. The trade-off is slightly less durability than anodizing—powder coatings protect well as long as the coating remains intact.

When Budget Constraints Apply: Mill finish costs the least upfront but typically costs more over time through replacement and maintenance. For temporary installations or concealed components, it may suffice. For everything else, the modest investment in surface treatment pays dividends through extended service life.

The right surface finish can elevate products from "good" to "outstanding," making extrusions last longer and look better.

Consider your application environment carefully. Indoor architectural features may only need decorative powder coating. Outdoor structural hex tubes demand the corrosion protection of anodizing or PVDF. Industrial components subject to tool contact benefit from anodizing's wear resistance. Matching finish to function ensures your hexagonal aluminum extrusions perform as expected—and that performance translates directly into dimensional specifications and tolerances covered next.

Dimensional Specifications and Tolerance Standards

You've selected the perfect alloy, finish, and profile shape. Now comes the specification detail that separates successful projects from costly rework: dimensions and tolerances. Getting hexagonal extrusion dimensions right means your components fit precisely, assemble smoothly, and perform as designed. Getting them wrong? Expect machining delays, assembly headaches, and budget overruns.

Let's walk through the specification data you need for confident procurement decisions.

Standard Dimensions and Size Ranges

Aluminum hex bar sizes and hex tube dimensions follow established industry standards, though availability varies by supplier and production capability. Understanding what's readily available versus what requires custom tooling helps you balance lead time against design flexibility.

For solid hexagonal bar stock, across-flat dimensions (the distance between parallel sides) typically range from 1/4 inch to 4 inches. Hollow hex tubing offers additional complexity—you're specifying both the outer across-flat measurement and the hex tube wall thickness.

According to Chalco Aluminum's specifications, standard hex tube sizes commonly available include:

Wall thickness categories generally fall into three ranges:

• Thin-Wall (1.0mm to 2.0mm): Suitable for display frames, lighting supports, and electronic housings where weight matters more than load-bearing capacity
• Standard-Wall (2.0mm to 4.0mm): The most common specification for general structural applications balancing strength and weight
• Heavy-Wall (4.0mm and above): Designed for high-stress environments including industrial equipment supports and hydraulic system components

Custom lengths up to 6 meters are available from most manufacturers, with precision cutting services eliminating the need for downstream trimming operations.

Understanding Tolerance Classes

Here's where many specifications fall short: assuming all hexagonal profiles meet the same dimensional accuracy. They don't. Tolerance standards govern how much variation is acceptable—and understanding these limits prevents assembly failures.

According to the Aluminum Association's published standards (ANSI H35.2), mechanical tolerances for extrusions vary based on several factors:

• Circumscribing Circle Size: The smallest circle that fully encloses the profile's cross-section directly affects achievable tolerances
• Profile Complexity: Hexagonal profiles with uniform wall thickness hold tighter tolerances than complex asymmetric shapes
• Alloy Selection: Certain alloys influence specific tolerances and are reflected in standard tolerance tables

For practical estimation, industry "rules of thumb" provide useful guidance when exact calculations aren't yet necessary:

What about hexagonal profile tolerances tighter than standard? They're achievable—but at a cost. According to industry guidance, achieving closer tolerances may require die modifications, slower extrusion speeds, increased inspection frequency, and potentially higher rejection rates. These factors translate directly to higher unit costs.

Standard tolerances are easy to achieve for properly designed extrusion profiles, but can be very difficult for improperly designed ones.

Standard Catalog Products vs Custom Extrusion

When should you specify off-the-shelf hex profiles versus investing in custom tooling? The decision hinges on volume, dimensional requirements, and timeline.

Standard Catalog Products offer faster delivery, lower minimum orders, and proven dimensional consistency. If your design accommodates common aluminum hex bar sizes—like 1/2", 3/4", or 1" across-flat dimensions—catalog products typically ship within days rather than weeks.

Custom Extrusion makes sense when:

• Your across-flat dimension falls outside standard ranges
• You need non-standard wall thickness combinations
• Internal bore geometry requires special configurations (round bore vs hex bore)
• Volume justifies die investment—typically 500 kg minimum orders
• Integrated features like threading profiles or mounting channels would eliminate secondary machining

The minimum wall thickness achievable depends on your profile's circumscribing circle. According to Bonnell Aluminum's design guide, hollow shapes in the 2-3 inch circumscribing circle range require minimum wall thickness of 0.062 inches. Larger profiles demand proportionally thicker walls—a 6-7 inch circle requires 0.125 inch minimum walls.

Before finalizing specifications, discuss critical dimensions directly with your extrusion supplier. As the Aluminum Association recommends, "all critical dimensions should be discussed between the purchaser and extruder to determine the most practical tolerances for each specific application." This consultation prevents specification conflicts and ensures your hexagonal profiles arrive ready for immediate use—without the machining and fabrication challenges we'll address next.

Machining and Fabrication Best Practices

Your hexagonal aluminum extrusion has arrived—dimensions verified, surface finish confirmed, tolerances within spec. Now what? The real challenge begins when you start cutting hexagonal aluminum, drilling holes, or machining features into your hex profiles. Get the fabrication right, and your components assemble perfectly. Get it wrong, and you're facing scrap material, missed deadlines, and frustrated machinists.

Let's walk through the practical techniques that separate clean fabrication from costly rework.

Cutting and Drilling Hex Profiles

Cutting hexagonal aluminum requires different considerations than round or square stock. Those six flat surfaces that make hex profiles so useful for tool engagement also create unique clamping and alignment challenges during machining.

Cutting Methods That Work: For most hex tube and bar applications, CNC machining centers deliver the best results. According to Modig's extrusion machining guide, CNC centers perform sawing, drilling, milling, and tapping operations with the precision hexagonal profiles demand. The key is proper workholding—those wrench flats provide excellent clamping surfaces when fixtures are designed to engage multiple sides simultaneously.

For shop-floor cutting without CNC equipment, consider these approaches:

• Band Saws: Ideal for straight cuts on hex bar aluminum. Use a blade with 10-14 teeth per inch for clean edges without excessive heat buildup
• Cold Saws: Produce burr-free cuts with excellent dimensional accuracy—worth the investment for high-volume hexagonal extrusion fabrication
• Miter Saws with Carbide Blades: Acceptable for lighter-gauge hex tubing when equipped with non-ferrous cutting blades designed for aluminum

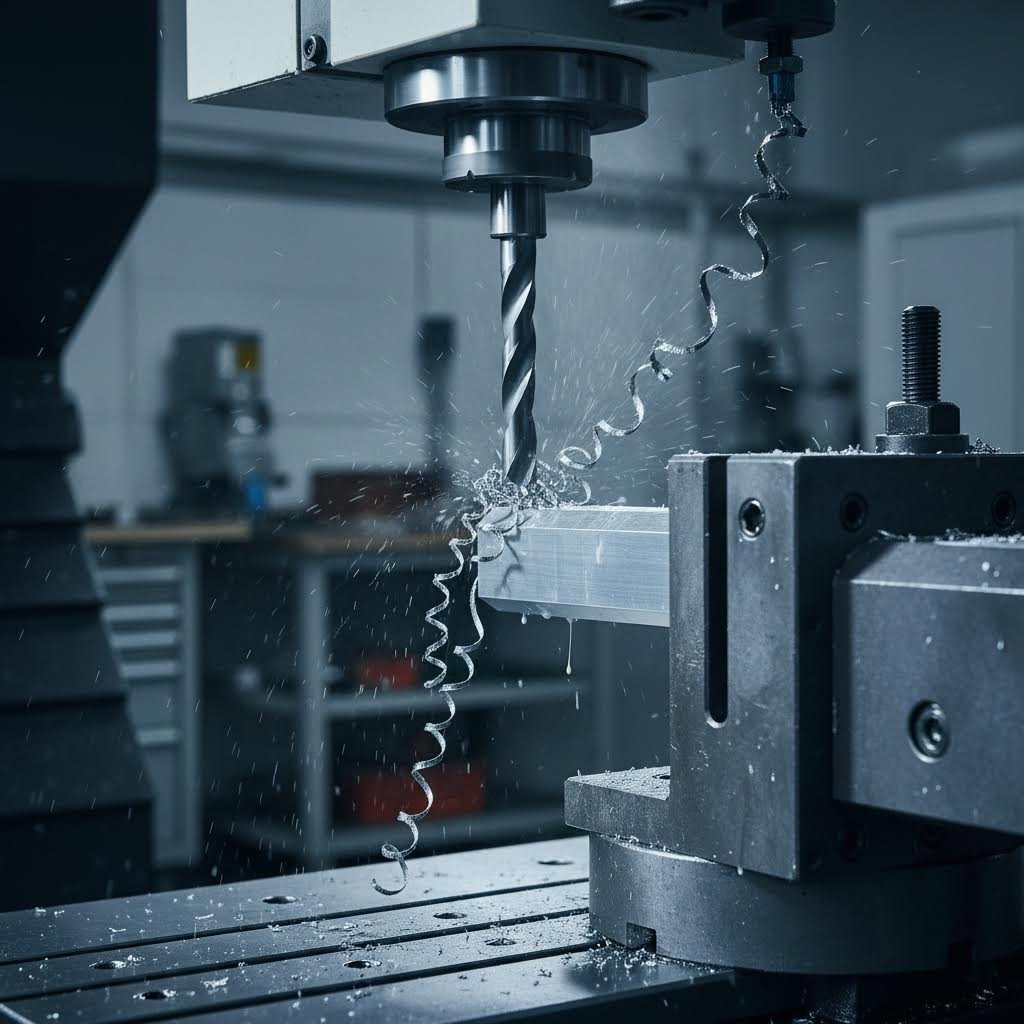

Drilling Hex Bar Aluminum Successfully: Drilling aluminum sounds simple until you're chasing wandering holes or clearing clogged flutes. The experts at HPMT Industries emphasize that proper tool selection prevents most drilling problems before they start.

For machining hex tube operations, follow these drilling guidelines:

• Use Solid Carbide Twist Drills: They offer excellent heat resistance and maintain sharp cutting edges longer than high-speed steel alternatives
• Start with a Center Drill: Create a starter indentation before drilling with larger bits—this prevents the drill from wandering across the flat hex surface
• Apply Cutting Fluid: Aluminum-specific lubricants reduce friction, extend tool life, and produce smoother hole finishes
• Employ Peck Drilling for Deep Holes: Drill a short distance, retract to clear chips, then continue. This technique prevents chip clogging and overheating that can gall aluminum to the drill flute

Avoiding Common Fabrication Mistakes

Even experienced fabricators encounter problems when working with hexagonal profiles for the first time. Here are the mistakes we see most often—and how to prevent them.

Dimensional Inaccuracies from Worn Tooling: According to Alumac Industries' fabrication analysis, variations in profile dimensions often trace back to die wear, temperature fluctuations, or improper cutting techniques. The solution? Regular inspection of cutting tools and strict process control during machining operations.

Surface Damage During Handling: Those pristine anodized or powder-coated surfaces scratch easily. Improper handling, tooling marks, or even metal shavings left on work surfaces create defects that require expensive refinishing—or scrapping the part entirely. Use protective fixtures, clean work areas between operations, and handle finished profiles with care.

Warping After Machining: Removing material from one side of a hex profile can release internal stresses, causing the part to bow or twist. For critical applications, consider stress-relief heat treatment before final machining, or plan your material removal symmetrically to balance residual stresses.

Bending Limitations: Can you bend hexagonal extrusions? Technically yes, but the results rarely satisfy. The corners concentrate stress during bending, leading to cracking or severe distortion of the hex geometry. If your design requires curves, specify round tubing for those sections or redesign using multiple straight hex segments joined at angles.

Best Practices for Machining Hexagonal Profiles

Follow these proven practices to achieve consistent, high-quality results when fabricating hex aluminum components:

• Secure Multiple Flats Simultaneously: Clamp at least two opposing hex surfaces to prevent rotation during cutting or drilling operations
• Control Cutting Speeds: Aluminum machines easily, but excessive speed generates heat that causes galling, burrs, and dimensional distortion
• Clear Chips Frequently: Aluminum chips can re-weld to cutting tools or workpieces—use compressed air or vacuum extraction to keep the work area clean
• Inspect Tools Before Each Setup: Dull cutting edges or damaged drill flutes cause most surface quality problems
• Verify Dimensions Early: Measure the first piece thoroughly before committing to a full production run
• Store Tools Properly: Keep drilling and cutting tools in dry, clean environments to prevent corrosion that degrades cutting performance

By following these fabrication fundamentals, your hexagonal aluminum extrusions transform from raw material into precision components ready for assembly. Understanding where these profiles ultimately serve—across industries from aerospace to architecture—helps you appreciate why getting fabrication right matters so much.

Common Applications and Industry Uses

You've mastered the fabrication techniques. Now imagine walking through a factory floor, an architectural showroom, or an aerospace facility. Where would you actually spot hexagonal aluminum extrusions in action? The answer might surprise you—these six-sided profiles appear in applications ranging from high-precision machinery components to stunning architectural facades.

Let's explore how different industries leverage the unique advantages of hex profiles to solve real engineering challenges.

Industrial and Architectural Applications

The hexagonal shape isn't just visually distinctive—it serves critical functional purposes across demanding environments. According to Orange Aluminum's industry analysis, hexagonal profiles offer improved load-bearing capabilities that make them particularly well-suited for industrial settings requiring structural integrity and visual appeal.

Machinery and Equipment Manufacturing: Think about every fastener, coupling, and connector in heavy machinery. Hex tube industrial uses dominate here because the geometry enables secure tool engagement during assembly and maintenance. Valve bodies, gears, and precision fittings rely on hexagonal aluminum applications where rotational control and high-torque transmission matter most.

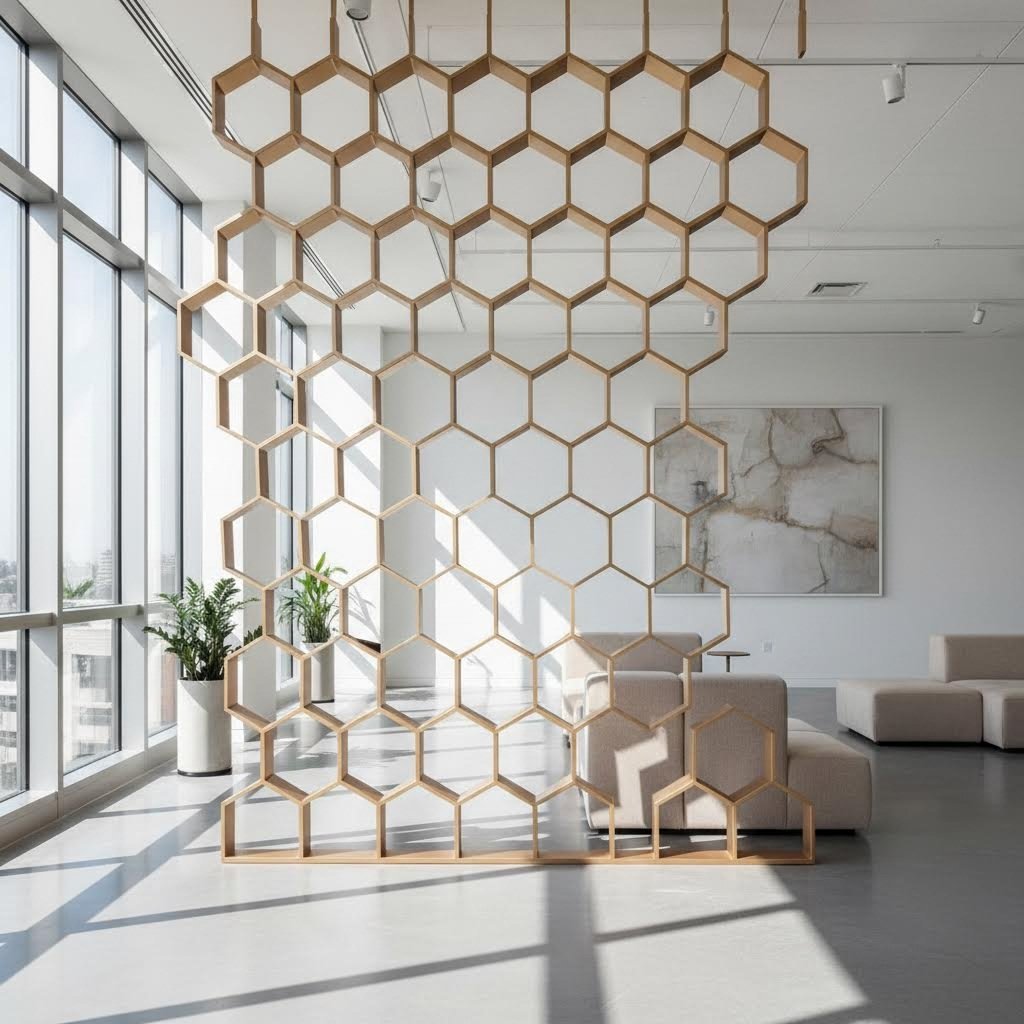

Architectural Elements: Architects increasingly embrace hexagonal forms for both structural and decorative purposes. According to Architizer's architectural research, the hexagon is considered one of the most efficient shapes for covering surfaces—using the least amount of separating walls while creating visually striking patterns. Architectural hex extrusion applications include decorative facades, window framing systems, and interior design elements where the six-sided profile adds geometric interest.

Construction and Structural Framing: When standard 90-degree connections won't suffice, hexagonal T-slot profiles enable angled assemblies that conform to circular work envelopes. Robot enclosures, machine guards, and modular workstations benefit from this flexibility—creating perimeters that minimize wasted floor space compared to rectangular alternatives.

Specialized Uses Across Sectors

Beyond general industrial applications, specific sectors leverage hexagonal profile machinery and components for specialized requirements.

• Aerospace and Defense: Lightweight strength matters critically here. Solid aluminum hex bars are frequently chosen for marine components, couplings, valves, fittings, and structural components, according to American Stainless Corp's specifications. The 6061-T6 alloy's superior strength-to-weight ratio makes hexagonal profiles ideal for aerospace applications where every gram counts.
• Automotive Manufacturing: From engine components to custom chassis elements, hex profiles provide the tool engagement surfaces needed for assembly-line efficiency. The predictable geometry enables automated tooling systems to grip, position, and fasten components reliably.
• Medical Device Manufacturing: Precision requirements in medical equipment demand the dimensional accuracy hexagonal extrusions provide. Instrument handles, positioning systems, and equipment supports benefit from the combination of corrosion resistance and machinability.
• Furniture and Interior Design: Modern furniture designers appreciate how hex tubing creates visual interest while maintaining structural integrity. Table legs, shelving supports, and decorative frames showcase the aesthetic potential of six-sided profiles—functional art that supports real loads.
• Renewable Energy Equipment: Solar panel mounting systems and wind turbine components use hexagonal profiles where anti-rotation features prevent loosening under vibration. The wrench flats enable field maintenance without specialized tooling.
• Marine and Offshore: Aluminum's natural corrosion resistance combined with hexagonal geometry's tool-engagement advantages makes these profiles ideal for marine hardware, dock equipment, and offshore platform components exposed to harsh saltwater environments.

Functional Versus Aesthetic Applications

What's fascinating about hexagonal aluminum applications is how often functional and aesthetic purposes overlap. Consider the Liverpool Insurgentes Department Store in Mexico City, where Rojkind Arquitectos created a facade featuring differently sized hexagons that overlap and combine—using fiberglass, steel, aluminum, and glass to create patterns that appear animated while managing transparency and light.

This dual-purpose design philosophy extends across industries:

• Tool Engagement + Brand Identity: Custom hex fasteners serve mechanical functions while reinforcing product aesthetics
• Structural Support + Architectural Statement: Load-bearing hexagonal columns that also serve as design focal points
• Efficient Nesting + Display Appeal: Products packaged in hex containers that stack efficiently while creating eye-catching retail presentations

The HEX-SYS project by OPEN Architecture demonstrates this perfectly—a sustainable building typology using 430-square-foot hexagonal cells that can be arranged into different configurations, dismantled after use, or transported and reassembled. The hexagonal form serves both modular construction efficiency and distinctive visual identity.

Modular Framing System Applications

T-slot hexagonal extrusions deserve special attention for their role in modular construction. Unlike welded frames that require permanent commitment, T-slot hex profiles allow rapid reconfiguration as production needs evolve.

Key modular framing applications include:

• Robot Cell Enclosures: Hexagon-shaped safety barriers that nest together efficiently while conforming to circular robot reach patterns
• Cleanroom Partitions: Pharmaceutical and semiconductor facilities requiring configurable controlled environments
• Trade Show Displays: Portable exhibition structures that assemble quickly and break down for transport
• Laboratory Workstations: Adjustable research benches accommodating changing experimental setups
• Prototype Fixtures: Development jigs that adapt as designs evolve through iteration

Whether your application demands the structural integrity for hexagonal profile machinery, the visual distinction for architectural hex extrusion facades, or the modularity for reconfigurable workspaces, hexagonal aluminum profiles deliver capabilities that round and square alternatives simply cannot match. Understanding these real-world applications helps you envision exactly how hex profiles might solve your specific engineering challenges—and knowing where to source quality extrusions becomes the final piece of the puzzle.

Sourcing and Supplier Selection Considerations

You've defined your hexagonal profile requirements—alloy, dimensions, tolerances, surface finish. Now comes the decision that determines whether your project succeeds or stalls: which hexagonal extrusion supplier earns your business? The wrong choice means missed deadlines, quality issues, and frustrating communication breakdowns. The right partner delivers precision profiles on schedule while anticipating problems before they derail your timeline.

Let's walk through the evaluation criteria that separate capable aluminum hex tube manufacturers from those who'll leave you scrambling for alternatives.

Evaluating Extrusion Suppliers

Not all extrusion facilities operate equally. According to industry procurement guidance, a supplier's press capacity defines what profiles they can actually produce—and press range matters tremendously for hexagonal profile sourcing.

Here's what to evaluate when vetting potential suppliers:

• Press Capacity and Equipment Range: Shengxin Aluminium operates 35 extrusion presses ranging from 600T to 5500T—covering everything from thin precision hex tubing to heavy structural profiles. A supplier with multiple press capacities maintains flexibility when your production volumes change or when you need both delicate and robust profiles from the same source.
• Die Design and Maintenance Capability: Many suppliers outsource die manufacturing, creating longer lead times and slower problem resolution when issues arise. Suppliers with in-house die workshops can modify or repair dies quickly, ensuring production continuity. According to procurement experts, if a die fails or produces inaccurate dimensions, delays ripple across your entire project.
• Surface Treatment Integration: Does your supplier handle anodizing, powder coating, and specialty finishes in-house? Shengxin Aluminium offers comprehensive surface treatments including anodizing in custom colors like Champagne and Rose Gold, powder coating, PVDF, and micro-arc oxidation. Integrated finishing reduces transportation between subcontractors, prevents damage, and shortens lead time.
• Quality Control Systems: Look for dimensional inspection to EN755-9 standards, surface roughness testing, hardness verification, and CMM reports with each batch. Ask whether the factory provides traceable lot data and QA certificates—essential for industrial customers requiring documentation.
• Technical Support Availability: Strong suppliers provide Design for Manufacturability (DFM) feedback on your drawings, offer feasibility assessments, and share inspection photos before shipment. Proactive communication prevents issues rather than reacting after defects occur.
• Experience and Track Record: With over 30 years of aluminum extrusion experience, established manufacturers understand the nuances of hexagonal profiles—from die geometry challenges to alloy selection for specific applications. Industry longevity signals reliability.

Custom vs Standard Product Decisions

Before contacting suppliers, determine whether your project requires custom hex aluminum extrusion or can utilize standard catalog products. This decision significantly impacts cost, lead time, and minimum order requirements.

When Standard Products Make Sense:

According to aluminum sourcing experts, stock extrusions—standard angles, channels, tubes, and bars kept in inventory—offer immediate availability with no tooling costs. They're best for prototyping, small projects, replacement parts, or simple structural applications where your design accommodates common dimensions.

When Custom Extrusion Justifies the Investment:

Custom extrusions require unique dies designed to your specifications. The benefits include optimized weight and material usage, reduced secondary machining operations, and exact dimensional control. However, expect higher upfront tooling costs and longer lead times.

Consider custom hex aluminum extrusion when:

• Your across-flat dimension or wall thickness falls outside standard ranges
• Production volume justifies die investment—typically 500 kg minimum orders
• Integrated features like threading profiles or mounting channels would eliminate secondary operations
• Weight optimization or material savings matter for high-volume applications
• Performance requirements exceed what standard catalog products deliver

Lead Time Realities and Project Planning

Understand this clearly: aluminum extrusion lead times are long. According to Profile Precision Extrusions, a new project for a simple design with no fabrication takes approximately 16 weeks to ship. Designs requiring multiple fabrication steps and anodizing can extend to 20 weeks or longer.

Typical production benchmarks for hexagonal profile sourcing include:

• Die Manufacturing: 10-20 days
• Extrusion Production: 7-15 days
• Surface Finishing: 5-10 days
• Total Project Timeline: 4-6 weeks for standard projects; longer for complex specifications

The practical implication? Start your sourcing process early. If you're considering new hexagonal extrusion projects, begin design discussions and supplier evaluations now rather than waiting until production deadlines loom.

What Information Suppliers Need From You

When you've identified potential aluminum hex tube manufacturers, provide enough information for accurate quotation. According to industry best practices, the following details enable suppliers to evaluate your project properly:

• PDF drawing specifying alloy and temper requirements
• Dimensional tolerances clearly identified
• Cosmetic surfaces marked on drawings
• CAD file for additional evaluation if needed
• Required cut lengths
• Number of pieces to quote
• Estimated annual usage for volume pricing consideration

Providing complete information upfront prevents back-and-forth delays and ensures your quotation reflects actual project requirements rather than supplier assumptions.

Making Your Final Supplier Selection

The question of where to source hexagonal extrusions doesn't have a one-size-fits-all answer. It comes down to balancing cost, lead time, capability, and support.

For projects requiring end-to-end capability from die development through mass production, suppliers offering integrated services reduce coordination complexity. Shengxin Aluminium's combination of extensive press capacity, in-house surface treatments, and CNC machining centers for precise cutting, drilling, and bending means your hexagonal profiles can arrive ready for assembly—not requiring additional subcontractor coordination.

For straightforward applications using standard dimensions, local distributors with inventory may offer faster delivery despite potentially higher unit costs.

Work with a supplier who can walk you through both standard and custom options—and help you decide which approach makes the smarter choice for your specific needs.

By evaluating press capability, surface treatment options, quality systems, and technical support before committing to a supplier, you position your hexagonal aluminum extrusion project for success from specification through final delivery.

Frequently Asked Questions About Hexagonal Aluminum Extrusion

1. What is hexagonal aluminum extrusion used for?

Hexagonal aluminum extrusion serves diverse applications across multiple industries. In machinery manufacturing, hex profiles create fasteners, couplings, and valve bodies requiring secure tool engagement. Architectural applications include decorative facades, window framing, and interior design elements. The six-sided geometry also enables modular T-slot framing systems for robot enclosures, machine guards, and reconfigurable workstations. Additional uses include aerospace components, automotive parts, medical device handles, furniture design, and marine hardware where corrosion resistance and wrench-flat functionality are essential.

2. What are the standard hexagonal aluminum extrusion sizes available?

Standard hex bar across-flat dimensions typically range from 1/4 inch to 4 inches. For hollow hex tubing, common sizes include 1/2", 5/8", 3/4", 1", 1-1/4", 1-1/2", and 2" across-flat measurements. Wall thickness options fall into three categories: thin-wall (1.0mm to 2.0mm) for lightweight applications, standard-wall (2.0mm to 4.0mm) for general structural use, and heavy-wall (4.0mm and above) for high-stress industrial environments. Custom lengths up to 6 meters are available from most manufacturers.

3. What is the difference between 6061 and 6063 aluminum for hex extrusions?

The primary difference lies in mechanical strength versus surface quality. 6061-T6 offers significantly higher tensile strength (310 MPa versus 180 MPa), making it ideal for structural and load-bearing hexagonal components. 6063-T5 provides superior extrudability, better anodizing response, and excellent surface finish—preferred for architectural and decorative applications. 6063 also delivers better thermal and electrical conductivity, making it suitable for heat sinks. Choose 6061 when strength is paramount; select 6063 when appearance and corrosion resistance matter more.

4. How much does custom hexagonal aluminum extrusion cost?

Custom hexagonal extrusion costs depend on several factors including die tooling investment, order volume, alloy selection, surface finishing requirements, and dimensional complexity. Die costs represent the primary upfront expense for custom profiles. Minimum order quantities typically start around 500 kg to justify tooling investment. Standard catalog hex products cost less per unit but offer limited dimensional options. For accurate pricing, suppliers like Shengxin Aluminium provide quotations based on your specific drawings, tolerances, annual usage estimates, and finishing requirements.

5. What surface finishes are available for hexagonal aluminum extrusions?

Multiple surface treatment options enhance hexagonal aluminum extrusions for specific applications. Anodizing creates an integral oxide layer providing excellent corrosion and wear resistance with color options including Champagne and Rose Gold. Powder coating offers unlimited color choices and superior scratch resistance for decorative applications. PVDF coatings deliver exceptional UV and chemical resistance for exterior architectural use. Mill finish serves cost-sensitive applications where appearance is secondary. Mechanical finishes like polishing or abrasive blasting prepare surfaces for additional treatments or achieve specific textures.
