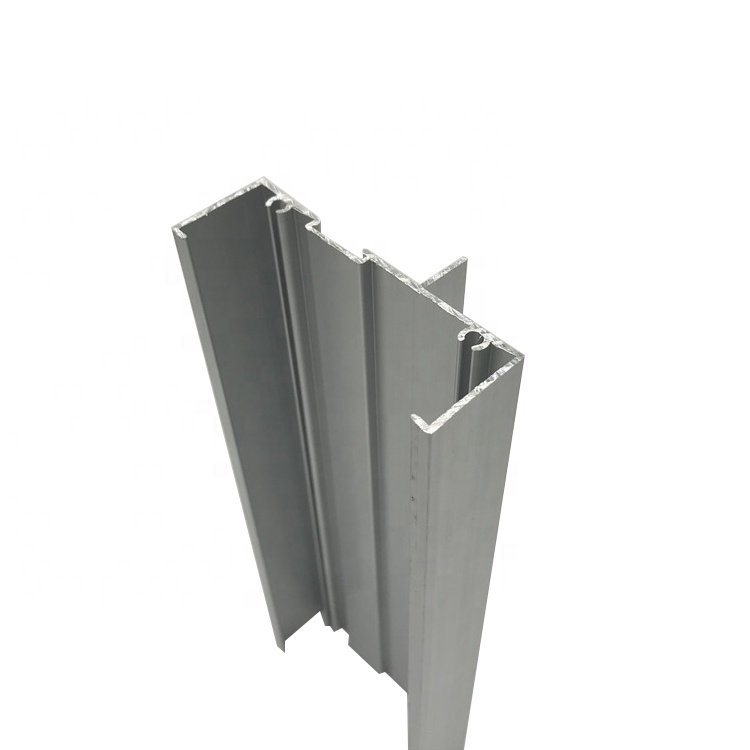

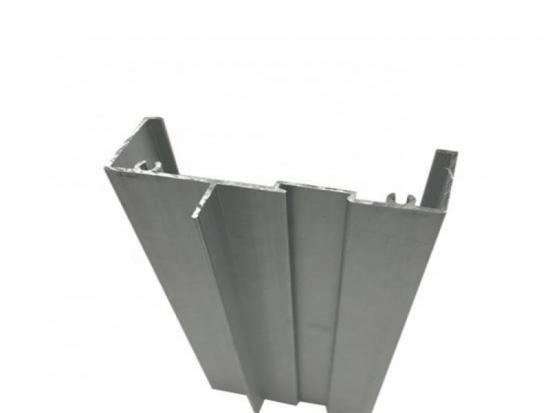

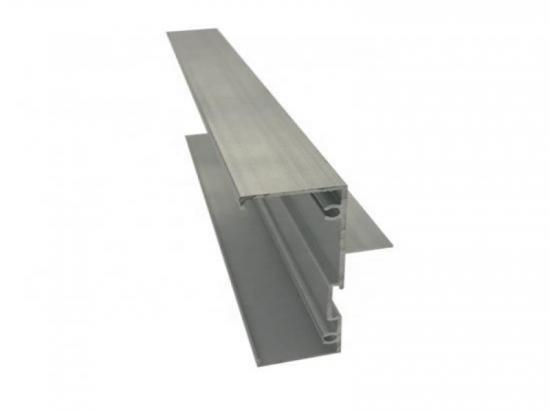

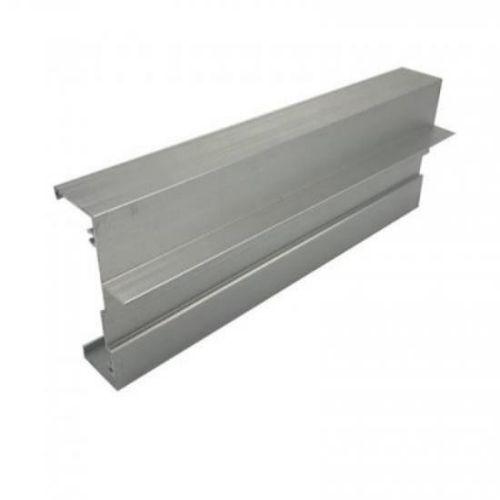

Shengxin Mill Finish Industrial Aluminium Extrusion Profiles

These aluminum products are ultimately deep processing of this step. In particular, he is the surface of the electrophoretic material, in the deep processing of the first focus on the protection of aluminum surface is not damaged, scratches and so on.
  • Brand:

    ANHUI SHENGXIN
  • Item NO.:

    SX-0918
  • Payment:

    T/T, or LC at sight
  • Price:

    $2500/Tons
  • Product Origin:

    Anhui China
  • Color:

    Customized
  • Shipping Port:

    Shanghai/Ningbo/Wuhu
  • Lead Time:

    15 - 25 Days

Product Categories

Hot Products

  • Product Details

Shengxin Mill Finish Industrial Aluminium Extrusion Profiles



PRODUCT PARAMETERS

Business Trip

Manufacturer/OEM/ODM

Alloy&Temper

AL 6063 T4/T5/T6 or as customer’s requirement

Designs and Tolerances

As per drawings/samples,or re-design as requested or market needs.Tolerance will be shown on each drawing

Size

1.Round Tube(Max Dia:180mm)

2.Square Tube(Max:140mmX140mm or 240mm)

3.Max width:260mm

Moulds/Dies

Making moulds and producing as per designed drawing

1. Using our existing moulds,no extra charge

2. Using client drawings,opening mould,actually about 10tons the moulding fee is free

3. Moulding fee will be by return when order arrived to fixed quantity

Surface Treatment

Powder coating,Anodized,Wooden grain,

Polishing,Electrophoresis,Brushed,PVDF,Sanding blasting etc.

Application

Aluminum tubes/pipes,Aluminum profiles for

Doors,Aluminum profiles for windows,Aluminum profiles for curtain wall,Thermal break aluminum profiles,Industrial aluminum profiles,Heat sink,Solar frame,Aluminum profiles for kitchen cabinet,Aluminum profiles for wardrobe,Aluminum profiles railing,Aluminum profiles  for furniture,Aluminum profiles for office partition,Aluminum roller shutter,Aluminum tile trim,Sun room aluminum profiles,Shower room aluminum profiles etc.

Length

 ≤7.5meters
Wall Tickness  ≥0.7mm


Further Process Ability

 Drilling,Bending,Welding,Precise cutting,punching,

fabrication of finished products etc.

Certificate  ISO9001;ISO14001
Standard&Warranty

1. GB5237-2008 equal to EN12020-1.2(2001);

2. Within 10 years without surface quality problem

Packing


 1.Inside 1st layer:protective sticky film with or without logo,peal foam interval between each profile,poly bag for each profile etc.
 2.Outside 2nd layer:shrink film,single wrapping film,kraft paper,waterproof paper etc.
Price System  Usually we adopt one day one price system.Price will be updated on shanghai metal price(http://www.smm.cn/).

Trade Terms

 FOB WUHU OR FOB SHANGHAI,

EX-WORKS,CFR,CIF,ETC.

 Payment Terms 1. L/C at sight

2. 2.T/T 30% deposit,70%balance against of B/L copy

3.D/P at sight 15-30 days

Lead Time of Goods 15-30days

Lead Time of Moulds

7-15days

Container Type

20FEET GP 40FEET GP 40FEET HC 45FEET HC

Minimum Order Quantity

1X20GP FOB CHINA for FCL or 5 TONS EX HUANCHENG WAREHOUSE for LCL

Origin

 ANHUI,CHINA



 Chemical Composition of Aluminum Profile



Alloy

Si

Mg

Fe

Cu

Mn

Zn

Cr

Ti

Impurity

  Ai

Unit

Total

6063 0.2-0.6 0.45-0.9   <0.35 <0.1 <0.1

<0.1

<0.1

<0.1

<0.05

<0.15

Surplus

6061 0.4-0.8 0.8-1.2  <0.7 <0.15-0.4 <0.15

<0.25

0.04-0.35

<0.15

<0.05

<0.15

Surplus

6060 0-0.6 0.35-0.6 0.1-0.3

 ≤0.1

 ≤0.1

0.15

0.05

<0.1

<0.05

<0.15

Surplus

6005 0.6-0.9 0.4-0.6   0.35    0.1   0.1

  0.1

  0.1

  0.1

 0.05

<0.15

Surplus



 Surface Treatment

Class

                         Min-average film thickness

                    Min-part film thickness

AA10

10 8

AA15

15 12

AA20

20 16

AA25

25 20



(The anodized of goods is generally supplied in grade AA10 or is controlled according to clients request.)

Electrophoresis Surface Treatment

Class



Anodizing

Paint film

Composite film

Min-average film thickness(um)

Min-part film

thickness(um)

Min-part film thickness(um)

Min-part film

thickness(um)

A

10

8

12

21

B

10

8

≥7

 6

 (Electrophoresis coating profiles is generally supplied by Class B,but also supply other levels according to customers requirement.)
