Master Passive Ventilation: A Complete Design Guide

Introduction to Passive Ventilation

Ever walked into a room and instantly felt refreshed by a gentle breeze, even though no fans or air conditioners were running? That’s the magic of passive ventilation. Sounds complex? In reality, it’s a simple, smart, and sustainable way to keep your indoor spaces comfortable and healthy—without relying on mechanical systems.

Passive ventilation, sometimes called natural ventilation, is all about using the forces of nature—like wind and temperature differences—to move fresh air through a building. Instead of flipping a switch or cranking up the AC, you let the environment do the work for you. Imagine opening windows on opposite sides of your home and feeling a cool draft sweep through, or noticing how warm air naturally rises and escapes through vents near your ceiling. These everyday moments are passive ventilation in action.

But why should you care about this approach? Here are a few compelling reasons:

• Sustainability: By minimizing or eliminating the need for powered ventilation, you reduce your home’s energy consumption and carbon footprint.
• Cost-effectiveness: With fewer mechanical systems, you save on installation, maintenance, and utility bills.
• Healthier indoor air: Continuous, gentle airflow helps dilute indoor pollutants, supporting better air quality and comfort for you and your family.
• Comfort: Properly designed natural ventilation can prevent stuffy rooms and help regulate temperature without drafts or noise from machines.

So, how does it work? At its core, passive ventilation relies on two main natural forces:

• Wind-driven ventilation—using pressure differences created by wind around a building to move air inside.
• Buoyancy-driven ventilation (or stack effect)—using temperature differences between indoors and outdoors to create upward air movement (Wikipedia).

Throughout this guide, you’ll discover the foundational science behind passive ventilation, explore practical design strategies, and learn how to apply these principles in various settings—from homes to workplaces and even specialized environments. We’ll also compare passive and active (mechanical) systems, so you can make informed decisions for your unique needs.

Ready to take a breath of fresh air—naturally? Let’s dive into the core principles that make passive ventilation so effective.

Understanding the Core Principles of Passive Ventilation

When you open a window and instantly feel a breeze sweep through your space, have you ever wondered what drives that movement of air? The answer lies in the core passive ventilation principles—simple, natural forces that work together to create healthier, more comfortable environments without using electricity or machinery. Let’s break down exactly how these forces operate, and why they matter for your home or building.

How Passive Ventilation Works: The Science Simplified

At its heart, passive ventilation is powered by two main natural phenomena: wind pressure and the stack effect (also known as thermal buoyancy). Understanding these can help you make smart choices about window placement, room layout, and even landscaping to maximize fresh airflow.

• Wind Pressure (Cross-Ventilation): Imagine wind blowing against one side of your house. This creates a higher air pressure on the windward side and a lower pressure on the opposite, or leeward, side. By positioning openings (like windows or vents) on both sides, you create a pathway for air to move straight through—a process known as cross-ventilation. This is especially effective when openings are directly opposite each other, allowing a continuous stream of fresh air to sweep through and flush out stale indoor air.
• Stack Effect Ventilation (Thermal Buoyancy): Ever notice how hot air seems to rise? That’s the stack effect in action. Warm air inside a building is lighter and less dense than cooler outside air. As it rises, it creates an upward airflow, drawing in cooler air from lower openings (like ground-level windows or vents) and pushing hot air out through higher outlets (such as clerestory windows or roof vents). The greater the height difference between these openings—and the bigger the temperature difference—the stronger the effect (SimScale).

Key Terms Explained

• Air Pressure Differential: The difference in air pressure between two points, which drives air from areas of high pressure to low pressure. In buildings, this is often created by wind or temperature differences.
• Thermal Buoyancy: The tendency of warmer air to rise above cooler air, creating natural upward air movement. This is the driving force behind stack effect ventilation.

Why Passive Ventilation Matters: The Main Benefits

By harnessing these natural forces, passive ventilation offers a range of practical advantages that go far beyond just saving energy. Here’s what you’ll notice when passive ventilation principles are put into practice:

• Improved Indoor Air Quality: Constant air exchange helps remove indoor pollutants, moisture, and odors, supporting a healthier living or working space (Abioclima).
• Reduced Energy Consumption: With less reliance on fans or air conditioning, you’ll see lower utility bills and a smaller environmental footprint.
• Enhanced Comfort: Fresh air flows help regulate temperature, prevent stuffiness, and create a more pleasant indoor climate.
• Lower Costs: Fewer mechanical systems mean less maintenance and lower installation costs.
• Sustainability: Passive ventilation supports eco-friendly building design and contributes to long-term environmental goals.

By understanding and applying these passive ventilation principles, you’re not just making your space more comfortable—you’re also taking a significant step toward healthier, more sustainable living. Next, let’s explore how architects and designers use these principles to shape buildings that truly breathe with nature.

Key Design Strategies for Effective Natural Airflow in Buildings

When you picture a comfortable, naturally cool home on a hot day, what comes to mind? Maybe it’s open windows letting in a gentle breeze, or shady trees outside keeping things cool. Achieving this isn’t just luck—it’s the result of smart passive ventilation design strategies that take full advantage of nature’s forces. Let’s break down how architects and homeowners can maximize natural airflow for healthier, more sustainable spaces.

Building Orientation: Working with the Wind and Sun

Imagine your home as a sailboat. Just as a sailor positions the sails to catch the wind, you can orient your building to harness prevailing breezes and sunlight. The best orientation depends on your local climate, but here’s what you need to know:

• Position the windward wall perpendicular to prevailing summer winds. This amplifies cross ventilation by allowing fresh air to enter and flow through the building (gb&d Magazine).
• Maximize southern exposure (in the Northern Hemisphere) to capture winter sun for warmth, but use overhangs or shade for summer cooling.
• Minimize long stretches of east and west-facing walls to reduce unwanted heat gain.

Strategic orientation is the foundation for all other passive ventilation strategies.

Building Form and Layout: Shaping for Airflow

The shape and layout of your building can either help or hinder natural ventilation. Open floor plans, breezeways, and minimized interior barriers allow air to move freely. Consider these tips:

• Keep main living spaces free of walls and obstructions. This lets wind passively ventilate the home, as seen in projects like Cowboy Modern Desert Retreat.
• Incorporate courtyards or atriums. Central open spaces encourage air to circulate throughout the building.
• Limit building depth. For effective cross ventilation, keep room depth within five times the ceiling height, or 2.5 times for single-sided ventilation.

Cross Ventilation Pathways: Creating the Breeze

Cross ventilation is one of the most effective passive ventilation design strategies. But how do you make it work? Here’s a quick checklist:

• Place operable windows or vents on opposite or adjacent walls. This allows air to enter from one side and exit the other, sweeping through the space.
• Align openings with prevailing winds. Use local wind data to guide window placement.
• Vary window heights. Higher openings on the leeward side help draw warm air out, while lower openings on the windward side bring cool air in.
• Use larger windows on the windward side. This increases the pressure differential and boosts airflow.
• Reduce interior obstructions. Open-plan layouts and wide doorways let air move without resistance.

Real-world examples—like the Nike Icon Studios LA and Ha Ha Haus—show how thoughtful window placement and unobstructed interiors can deliver up to 14 times more air exchange than single-sided ventilation.

Stack Effect Design: Letting Warm Air Rise

Stack effect, or thermal buoyancy, is another powerful tool. Here’s how to design for it:

• Include high-level vents, clerestory windows, or skylights. These allow warm air to escape naturally.
• Provide low-level inlets. Cool air enters at the bottom, replacing rising warm air.
• Maximize vertical distance between inlets and outlets. The greater the height difference, the stronger the stack effect.

Buildings like Foyle House and the Pearl Academy of Fashion combine stack effect with cross ventilation for even better performance.

Landscaping for Airflow: Nature’s Cooling System

Don’t underestimate the power of your landscape. Thoughtful planting can enhance ventilation and comfort:

• Plant trees and shrubs to direct breezes. Remove low branches to let air flow freely (University of Florida IFAS).
• Use shade-casting plants on east and west walls. This can lower indoor temperatures by up to 20°F in summer.
• Place trellises away from the building. This allows air circulation while still providing shade.
• Leverage evaporative cooling. Plants release moisture, creating cooler zones around the home.

Putting It All Together: Actionable Steps

• Study your site’s prevailing winds and sun paths before designing or renovating.
• Orient your building and openings to maximize natural airflow and daylight.
• Keep layouts open and minimize obstructions.
• Use landscaping to enhance comfort and airflow while reducing heat gain.
• Combine cross ventilation and stack effect strategies for best results.

By integrating these passive ventilation design strategies, you’ll create spaces that stay cooler, healthier, and more comfortable—all with minimal energy use. Next, let’s explore the specific building components that make these strategies possible, from window types to innovative vent designs.

Integrating Passive Ventilation Windows and Trickle Vents for Superior Indoor Air Quality

When you picture a home that feels fresh, comfortable, and healthy—without the constant hum of fans or air conditioners—what’s the secret ingredient? Much of it comes down to the right combination of passive ventilation windows, thoughtfully positioned vents, and innovative solutions like window trickle vents. Let’s break down how these elements work together to keep your indoor environment naturally balanced.

Designing for Airflow: Window Placement and Types

Imagine opening windows on opposite sides of your house and feeling a cool breeze sweep through. This isn’t just luck—it’s strategic design. The placement and type of windows play a huge role in how effectively air can circulate:

• Cross-ventilation: Placing operable windows on opposing or adjacent walls allows wind to flow straight through, flushing out stale air and bringing in fresh air. This is especially effective when windows are aligned with prevailing winds.
• Stack effect: Installing windows at different heights—such as lower-level inlets and upper-level outlets—lets warm air rise and escape, drawing in cooler air below.
• Window type matters: Casement and awning windows are particularly effective for passive ventilation. Casement windows, hinged at the side, can be angled to catch breezes. Awning windows, hinged at the top, can remain open even during light rain, ensuring continuous airflow.

Choosing windows with high energy performance—such as those with Low-E glass coatings and multi-pane construction—ensures you don’t sacrifice comfort or efficiency while maximizing ventilation.

Essential Structural Elements: Vents, Louvers, and Louvers

While windows are the main players, other components quietly support passive ventilation:

• Fixed and operable vents: These can be built into walls or window frames, providing additional pathways for air to enter and exit. Operable vents allow you to adjust airflow as needed.
• Louvers: Slatted openings that direct airflow while blocking rain and debris. Louvers are often used in utility areas or as part of larger ventilation stacks.
• Aluminum extrusions: Modern window and vent frames often use aluminum profiles for their strength, durability, and ability to form airtight seals. High-performance extruded frames help maintain insulation and reduce unwanted drafts.

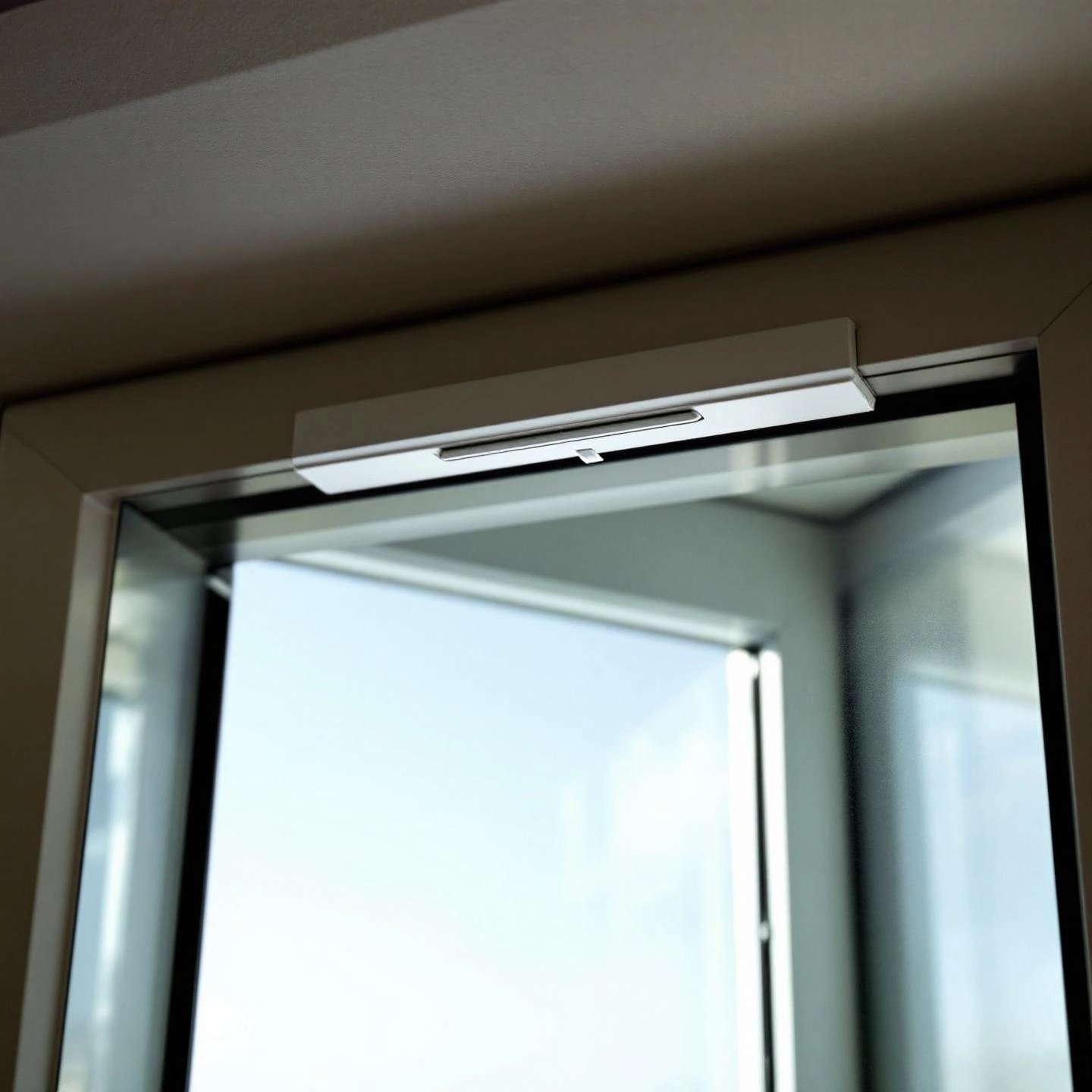

Modern Innovation: Window Trickle Vents

Ever wish you could enjoy fresh air—even when your windows are closed for security, weather, or noise reasons? That’s where window trickle vents come in. These small, discreet vents are installed in the upper section of window frames, providing a continuous, controlled flow of fresh air into your rooms.

Trickle vents are especially valuable in well-sealed, energy-efficient homes where natural air exchange can otherwise be limited. They’re also ideal for rooms prone to moisture, such as kitchens, bathrooms, and laundry areas.

Spotlight: Shengxin Aluminum’s Window Trickle Vents

If you’re searching for a solution that balances fresh air, security, and energy savings, Shengxin Aluminum’s Window Trickle Vents are a standout option. Designed for modern uPVC window frames, these slim-profile vents offer:

• Simple manual sliders for easy airflow regulation
• Lightweight, weather-resistant, and unobtrusive design
• Retrofitting capability for existing windows
• ISO 9001:2015 certified manufacturing and RoHS compliance for safety and durability

By letting you enjoy a gentle, continuous flow of outdoor air—even with windows locked—Shengxin’s trickle vents help maintain a healthy, comfortable, and energy-efficient living space. They’re a practical example of how passive ventilation can be seamlessly integrated into any home or commercial building.

When you combine thoughtful window placement, high-quality frames, and innovative background ventilation like trickle vents, you create a home that truly breathes. Next, let’s explore how these principles extend to your roof and attic—two key areas for optimizing passive air exchange and managing heat buildup.

Optimizing Your Roof and Attic for Passive Air Exchange

Ever wondered why some homes feel cooler and fresher in the summer, even without air conditioning? The secret often lies above your head—in the design of passive roof ventilation and attic ventilation systems. Let’s break down how your roof and attic work together to naturally remove heat, prevent moisture problems, and create a more comfortable, energy-efficient living space.

Why Roof and Attic Ventilation Matters

When the sun beats down on your roof, your attic can become a heat trap, causing indoor temperatures to rise and placing extra strain on your cooling systems. Without proper ventilation, moisture from daily activities—like cooking and showering—can also build up, leading to mold, mildew, and even structural damage. Passive ventilation offers a reliable, low-maintenance solution by harnessing natural airflow to keep your attic dry and cool, all without consuming electricity.

Key Components of Passive Roof and Attic Ventilation

Effective passive ventilation relies on a balanced system of intake and exhaust vents. Here’s how each element contributes:

• Soffit Vents (Intake): Installed under the eaves, soffit vents allow cool, fresh air to enter the attic from below. This incoming air acts as a gentle force, pushing warmer air upward and out.
• Ridge Vents (Exhaust): Running along the peak of the roof, ridge vents provide a continuous outlet for hot, humid air to escape. Their position at the roof’s highest point takes advantage of the natural tendency of warm air to rise (Roof Hub).
• Gable Vents (Exhaust/Intake): Mounted on the walls at each end of the attic, gable vents use wind-driven pressure differences to help move air horizontally through the space. They can serve as both intake and exhaust, depending on wind direction, but are most effective when paired with soffit vents.
• Turbine Vents (Exhaust): Also known as "whirlybirds," these vents spin with the wind, creating a slight suction that helps pull hot air out of the attic. They require no electricity and can be especially useful in areas with consistent breezes.

The Ideal Airflow Path: How Passive Ventilation Works

Imagine your attic as a tunnel for air movement. The goal is to create a steady flow that removes heat and moisture efficiently. Here’s the typical airflow path in a well-designed passive roof ventilation system:

• Cool, fresh air enters through soffit vents located under the eaves.
• This air travels upward along the underside of the roof deck, picking up heat and moisture as it goes.
• Warm, humid air rises naturally toward the highest points of the attic.
• Hot air exits through ridge vents, gable vents, or turbine vents positioned at or near the roof’s peak.

This continuous cycle keeps attic temperatures closer to outdoor levels, reducing the risk of ice dams in winter and lowering cooling costs in summer.

Best Practices for Balanced Ventilation

• Balance intake and exhaust: The most effective systems have roughly equal amounts of intake (soffit) and exhaust (ridge/gable/turbine) vent area. Too much exhaust with not enough intake can draw conditioned air from your living space, while too much intake without enough exhaust limits airflow (IIBEC).
• Follow building codes: Most codes recommend a minimum net free ventilating area (NFVA) of 1/150 or 1/300 of the attic floor area, with at least 50% at the eaves (intake) and the remainder at or near the roof peak (exhaust).
• Keep vents unobstructed: Ensure insulation or debris doesn’t block soffit vents, and avoid combining multiple exhaust types (like static and ridge vents) that could short-circuit airflow.
• Adapt to your roof style: Use continuous ridge and soffit vents for simple rooflines, and supplement with box or gable vents for complex shapes or hip roofs.

Common Pitfalls and Solutions

• Missing intake vents: Ridge or gable vents alone are ineffective without soffit vents. Always pair exhaust with intake for a complete system.
• Improper vent placement: Avoid placing exhaust vents lower than intake vents, as this can trap hot air in the attic.
• Overventilating: More isn’t always better—too many vents can disrupt airflow and reduce effectiveness.

By understanding and applying these principles, you’ll not only prolong the life of your roof but also create a healthier, more comfortable home. Next, we’ll explore how vertical stacks and solar chimneys can further enhance passive ventilation, especially in multi-story or complex buildings.

Harnessing the Power of Passive Stack Ventilation

Ever notice how, in some buildings, warm air seems to drift effortlessly upwards and out, leaving the space below cool and refreshed? That’s passive stack ventilation at work—a natural phenomenon you can harness to create healthier, more energy-efficient buildings. But how does it actually function, and what design choices make it effective? Let’s break it down.

What Is Passive Stack Ventilation?

At its core, passive stack ventilation leverages the fact that warm air rises. As indoor air heats up—either from people, appliances, or sunlight—it becomes less dense and naturally moves upward. By providing a vertical pathway (a stack or shaft), this warm air can escape through outlets at the top of the building, drawing in cooler air from lower inlets. This cycle creates a gentle, continuous flow, ventilating the space without fans or mechanical systems.

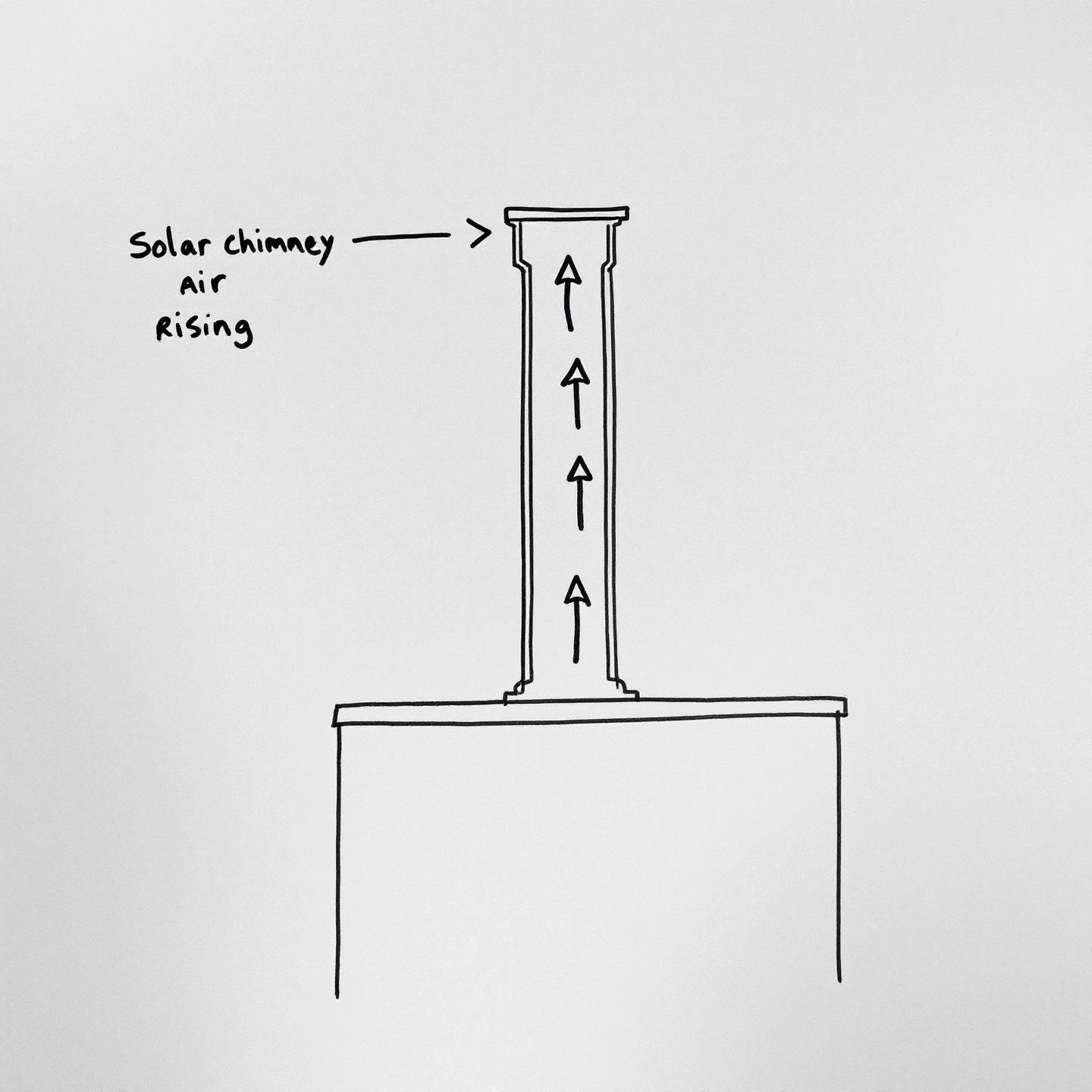

Designing Ventilation Stacks and Solar Chimneys

Imagine a tall, vertical duct running from a bathroom or kitchen up through the roof. That’s a basic ventilation stack. Now, take it a step further with a solar chimney—a vertical shaft, often glazed or painted dark, designed to absorb solar heat. As the sun warms the chimney, the air inside heats up, rises, and exits, pulling more fresh air in from below. This approach combines the stack effect with solar energy for an even more powerful natural ventilation system.

• Ventilation stacks are typically used in wet rooms (like bathrooms and kitchens), with extract vents routed vertically to roof outlets.
• Solar chimneys can be integrated into the building’s facade or roof, often facing the sunniest direction to maximize heat absorption.

Key Construction Considerations

Getting stack or solar chimney ventilation right means paying attention to a few critical details:

• Height: The taller the stack, the greater the pressure difference between the bottom and top—this increases airflow. For example, a stack height of 6 meters with an optimum cavity width of 0.55–0.6 meters has been shown to maximize buoyancy-induced flow (ScienceDirect).
• Diameter (or width): The size of the shaft affects both the volume and speed of airflow. Too narrow, and resistance increases; too wide, and natural draft may weaken. Studies suggest an air gap (chimney depth/width) of 0.2–0.3 meters often works well for solar chimneys.
• Materials: For solar chimneys, high-absorptivity materials like black-painted metal or glass help capture and retain heat. Low-emissivity coatings can further boost efficiency by reducing heat loss.
• Openings: Adjustable inlets and outlets allow you to control airflow and respond to changing weather or occupancy needs.
• Location and Orientation: Solar chimneys perform best when oriented toward the sunniest facade or roof area, maximizing solar gain throughout the day.

Real-World Examples: Tradition Meets Innovation

• Traditional Windcatchers (Badgirs): In Iran and the Middle East, tall wind towers have been used for centuries to channel breezes and promote stack-driven ventilation, cooling homes naturally in hot climates.
• Modern Solar Chimneys: Recent buildings, like the Empresa de Desarrollo Urbano headquarters in Colombia, use internal solar chimneys with thermal mass to create air currents, refreshing workspaces without mechanical cooling (ArchDaily).
• Residential Applications: Homes with vertical stacks in bathrooms and kitchens, connected to roof outlets, achieve continuous background ventilation—especially when paired with window trickle vents for fresh air supply.

Why Use Passive Stack and Solar Chimney Ventilation?

• Zero energy use—no fans or motors required.
• Low maintenance and long-term reliability.
• Improved indoor air quality, with constant removal of moisture and pollutants.
• Adaptability to both new builds and retrofits.

By understanding and applying these principles, you can design buildings that breathe naturally—reducing energy costs, supporting occupant health, and embracing both tradition and innovation. Next, we’ll explore how these passive strategies can be balanced with airtightness and advanced mechanical systems in certified Passive House projects.

Meeting Ventilation Requirements in a Certified Passive House

When you hear about Passive Houses, you might picture a fortress of insulation—airtight, energy-efficient, but maybe a bit stifling. But how do these ultra-sealed homes actually breathe? And how can you ensure fresh, healthy air without sacrificing the energy savings that make Passive House design so appealing? Let’s unravel the essentials of passive house ventilation and discover how both mechanical and passive elements work together for optimal comfort.

Why Ventilation Is So Critical in Passive Houses

Imagine living in a home so tightly sealed that almost no air sneaks in or out. Sounds good for energy bills, right? But without careful planning, this airtightness can quickly lead to stale air, excess humidity, and even mold. That’s why the Passive House standard doesn’t just demand low energy use—it also sets strict requirements for fresh air and indoor comfort (Passive House Institute).

• Airtightness: Passive Houses must achieve a maximum of 0.6 air changes per hour at 50 Pascals (ACH50), verified with a pressure test.
• Thermal Comfort: All living spaces must maintain comfortable temperatures—no more than 10% of the year above 25°C.
• Ventilation with Heat Recovery: At least 75% of the heat from exhaust air must be transferred to incoming fresh air using a heat exchanger.

These requirements ensure that energy isn’t wasted, but they also mean that natural, uncontrolled air leaks (like those in older homes) are nearly eliminated. So, how do you get enough fresh air inside?

MVHR: The Heart of Passive House Ventilation

The answer is Mechanical Ventilation with Heat Recovery (MVHR). This system acts like the lungs of a Passive House, providing a steady supply of filtered, pre-warmed (or pre-cooled) fresh air while extracting stale air from kitchens, bathrooms, and utility spaces.

• How it works: MVHR draws in outdoor air, filters and tempers it using heat recovered from outgoing air, and distributes it evenly throughout living spaces.
• Benefits: Up to 90% of heat is recovered, drastically reducing heating (and cooling) demand while ensuring superior indoor air quality and humidity control.
• Continuous operation: Unlike traditional systems that cycle on and off, MVHR runs at low, steady rates to maintain a healthy environment 24/7.

But even with a top-notch MVHR system, there are real-world challenges—like ensuring the system is properly sized, maintained, and that the building remains compartmentalized for consistent pressure and airflow (U.S. Department of Energy).

Where Passive Components Come In: Supplementing MVHR with Trickle Vents

So, is there still a place for passive ventilation in these high-performance homes? Absolutely. While MVHR is the backbone, passive elements like window trickle vents can provide valuable supplemental air exchange—especially in transitional seasons or when short-term, localized ventilation is needed.

• Background ventilation: Trickle vents offer a gentle, controlled flow of fresh air, preventing stuffiness when windows are closed for security or weather.
• Moisture and pollutant control: In rooms prone to higher humidity (like kitchens and bathrooms), passive vents help reduce condensation and prevent mold growth.
• Flexibility: Trickle vents allow for user-adjustable airflow, giving occupants more control over comfort without compromising airtightness or energy performance.

However, for passive vents to work effectively in a Passive House, airtightness and compartmentalization are crucial. Poorly sealed units can disrupt pressure balance and reduce the efficiency of both MVHR and passive systems.

Spotlight: Shengxin Aluminum’s Window Trickle Vents in Passive House Applications

If you’re seeking a passive solution that complements MVHR, Shengxin Aluminum’s Window Trickle Vents are designed with Passive House needs in mind. Their slim, uPVC-compatible profile allows for discreet installation in new builds or retrofits, supporting:

• Consistent, background ventilation without compromising window insulation or security
• Manual airflow adjustment to suit changing weather or occupancy
• Durable, weather-resistant construction that stands up to repeated use
• ISO 9001:2015 and RoHS compliance for peace of mind in quality and safety

By integrating high-quality trickle vents, you ensure that your Passive House remains both airtight and fresh—giving you the best of both worlds: energy efficiency and everyday comfort.

In summary, achieving optimal passive house ventilation is about smartly combining airtight construction, advanced MVHR systems, and targeted passive solutions like trickle vents. This approach not only meets the stringent standards of Passive House certification but also delivers a living space that’s as healthy as it is efficient. Next, let’s compare how passive and active ventilation systems stack up in terms of energy use, cost, and control—so you can make the best choice for your project.

Passive vs Active Ventilation

When you’re deciding how to keep your home or building fresh and comfortable, you might wonder: Should you rely on nature’s forces, or trust in technology? The debate of passive vs active ventilation is at the heart of modern building design. Let’s break down the differences, so you can choose the right approach for your needs—whether you want simplicity, control, or the best of both worlds.

What’s the Real Difference Between Passive and Mechanical Ventilation?

Imagine you’re opening windows to let in a breeze (passive), versus flipping a switch to activate a fan or HVAC system (mechanical). Both aim to bring in fresh air and remove stale air, but how they do it—and the impact on your wallet, comfort, and sustainability—can be quite different.

Pros and Cons at a Glance

Passive (Natural) Ventilation

• Pros:
  • Low installation and running costs
  • Minimal maintenance
  • No energy consumption for airflow
  • Simple and reliable
• Cons:
  • Less control over airflow and temperature
  • Dependent on weather and outdoor conditions
  • May not be suitable in noisy or polluted environments

Active (Mechanical) Ventilation

• Pros:
  • Precise, automated control of air quality
  • Works in any climate or location
  • Can filter and condition air for health and comfort
• Cons:
  • Higher upfront and ongoing costs
  • Requires regular maintenance
  • Energy consumption adds to utility bills

Hybrid Systems: The Best of Both Worlds?

Can’t decide between mechanical vs natural ventilation? You’re not alone. Many modern buildings use hybrid (mixed-mode) systems that combine passive and active strategies. For example, you might use natural ventilation during mild weather, and switch to mechanical systems when it’s too hot, cold, or polluted outside.

• Hybrid benefits:
  • Lower energy and capital costs than full mechanical systems
  • More robust and flexible for varying climate and occupancy
  • Can be automated for seamless transitions between modes

Hybrid approaches are gaining popularity in schools, offices, and homes—especially where sustainability and comfort are top priorities.

Enhancing Passive Ventilation with Modern Solutions

If you’re leaning toward passive strategies but want more control and consistent air quality, consider integrating background ventilation products like Shengxin Aluminum’s Window Trickle Vents. These slim, unobtrusive vents provide a gentle, regulated flow of fresh air—even when windows are closed for security or weather—bridging the gap between fully passive and mechanical systems. They’re ideal for energy-efficient homes and buildings where airtightness is key, offering a cost-effective way to maintain healthy indoor air without the complexity or energy use of mechanical fans.

Ultimately, your choice between passive, active, or hybrid ventilation should reflect your climate, building type, and comfort needs. Next, we’ll see how passive ventilation plays a vital role in specialized environments like healthcare and industrial settings—where air quality and safety are paramount.

Passive Ventilation in Medical, Industrial, and Emergency Environments

When you picture passive ventilation, you might think of homes or offices. But did you know it’s also a critical solution in hospitals, factories, and even emergency shelters? Let’s explore how passive ventilation medical and passive ventilation industrial strategies deliver safety, efficiency, and comfort in some of the most demanding environments.

Passive Ventilation in Healthcare: Infection Control and Energy Efficiency

Imagine a hospital operating room where the air must be kept clean, fresh, and free of contaminants—all while minimizing energy use. Sounds challenging? Hospitals face unique ventilation demands: some spaces require high air exchange rates to maintain hygiene, while others can benefit from demand-based, energy-saving approaches. According to a baseline study on Passive House hospitals, optimizing ventilation design and controlling outdoor air demand can reduce energy consumption dramatically, even in areas with strict hygiene requirements.

• Operating rooms and labs: Require high-volume airflows to ensure sterile conditions, but smart controls allow for reduced ventilation outside of active use, cutting energy use by up to 65% compared to 24/7 operation.
• Filtration: Multi-stage filters (M7, F9, H13/HEPA) are crucial for airborne particle removal, but careful sizing and placement can lower pressure losses and power consumption.
• Heat recovery: High-efficiency systems (≥75%) can reclaim warmth from exhaust air, further reducing hospital energy bills.

By tailoring passive and low-energy ventilation strategies to each hospital zone, healthcare facilities can maintain strict air quality standards while supporting sustainability and cost savings (Passipedia).

Passive Ventilation in Industrial and Technical Spaces: Heat and Air Quality Management

Ever walked into a factory or warehouse and noticed how fresh the air feels—without a single fan running? In industrial settings, passive ventilation isn’t just about comfort; it’s about safety and productivity. Large open spaces, heat-generating equipment, and fluctuating occupancy all create unique airflow challenges. Thoughtfully designed passive systems use natural forces to:

• Remove excess heat: Buoyancy-driven ventilation (stack effect) lets hot air rise and escape through roof vents or turbine ventilators, drawing in cooler air from below.
• Improve air quality: Continuous fresh air flow dilutes dust, fumes, and odors, supporting worker health and focus.
• Reduce energy use: Passive approaches can cut energy consumption by up to 30% compared to mechanical systems, while also lowering maintenance needs.
• Ensure reliability: With no moving parts, passive systems keep working even during power outages or equipment failures.

Key components like weather-protected louvers and roof-mounted turbine vents are chosen based on climate and building layout, ensuring the solution is as robust as the environment demands.

Emergency and Temporary Structures: Passive Ventilation for Safety in Crisis

Now, imagine a storm shelter or emergency medical tent packed with people during a crisis. Proper air exchange isn’t just about comfort—it’s a matter of survival. In these temporary or sealed environments, passive ventilation systems use protected openings (like impact-resistant louvers) to:

• Maintain a steady flow of fresh air, preventing dangerous CO₂ buildup
• Operate reliably without electricity, crucial during disasters
• Meet strict safety standards—such as FEMA guidelines, which recommend 15 cubic feet per minute (cfm) of airflow per person and require louvers to withstand extreme winds

These passive solutions are simple, durable, and inherently resilient—making them a first line of defense when mechanical systems might fail.

From infection control in hospitals to heat management in factories and life-saving air supply in emergency shelters, passive ventilation adapts to the most challenging conditions. As you consider your own project, remember how these principles scale from everyday comfort to critical safety—highlighting the versatility and value of natural airflow. In our final section, we’ll recap the key benefits and design takeaways, and inspire you to optimize your own spaces for health, efficiency, and resilience.

Reaping the Benefits of Passive Ventilation

Imagine stepping into a home that feels naturally fresh, comfortable, and free from musty odors or stuffiness—even on days when all the windows are closed. That’s the everyday reality for those who embrace passive ventilation. But what exactly makes this approach so powerful, and how can you bring its advantages into your own space?

Why Passive Ventilation Matters: The Core Benefits

Let’s recap the benefits of passive ventilation—not just as a design trend, but as a practical strategy for healthier, more efficient living:

• Improved Indoor Air Quality: By letting fresh outdoor air circulate and dilute indoor pollutants, passive ventilation helps improve indoor air quality and reduce the risk of mold, condensation, and lingering odors. You’ll notice rooms feel lighter, cleaner, and more inviting(EPA).
• Energy and Cost Savings: Since passive systems rely on natural forces—wind and thermal buoyancy—they require little to no electricity. That means lower utility bills and a smaller carbon footprint, all while maintaining comfort.
• Low Maintenance and Reliability: With fewer moving parts and no motors to break down, passive systems are inherently robust and simple to maintain. You get long-term performance with minimal upkeep.
• Year-Round Comfort: Whether it’s cooling your home on a summer afternoon or expelling excess humidity in winter, passive ventilation adapts to the seasons, making spaces more pleasant without the noise or complexity of mechanical systems.
• Sustainability: By reducing reliance on powered ventilation and supporting natural airflow, passive strategies contribute to greener, more resilient buildings—an important step toward sustainable communities.

Design Principles to Optimize Your Space

Ready to make the most of passive ventilation? Here are a few actionable design principles to guide your next project or renovation:

• Strategic Window Placement: Position operable windows on opposite or adjacent walls to enable cross-ventilation. Vary window heights to harness the stack effect—drawing cool air in low and letting warm air escape high.
• Integrate Background Ventilation: Even the best-sealed homes need a constant supply of fresh air. Modern solutions like window trickle vents offer a discreet, continuous airflow—even when windows are locked for security or weather.
• Balance Intake and Exhaust: Use soffit, ridge, or gable vents in attics and roofs to maintain a steady flow of air, removing heat and moisture without mechanical assistance.
• Consider Your Climate: Adapt strategies to your location—factor in prevailing winds, humidity, and temperature swings for best results.
• Stay Flexible: Combine passive approaches with supplemental mechanical systems or hybrid solutions if your environment demands extra control or filtration.

Take the Next Step: Enhance Your Home with High-Quality Solutions

Optimizing your space for passive airflow doesn’t have to be complicated or expensive. Sometimes, the smallest upgrades make the biggest difference. For example, installing Shengxin Aluminum’s Window Trickle Vents can dramatically improve indoor air quality by providing a controlled, quiet stream of fresh air—without compromising energy efficiency or security. Their slim, weather-resistant design fits seamlessly into new or existing uPVC windows, making them a smart choice for anyone seeking a healthier, more comfortable environment.

So, as you assess your own home or workspace, ask yourself: Are you making the most of nature’s free and abundant resources? With thoughtful design, practical upgrades, and the right products, you can unlock all the benefits of passive ventilation—creating spaces that breathe, save energy, and support well-being for years to come.

Frequently Asked Questions about Passive Ventilation

1. What is the meaning of passive ventilation?

Passive ventilation refers to the use of natural forces—such as wind and temperature differences—to move air through a building without mechanical fans or energy use. This method improves air quality and comfort while reducing energy consumption, making it a sustainable alternative to powered ventilation systems.

2. What is the difference between passive and active ventilation?

Passive ventilation relies on natural airflow through windows, vents, or architectural design, while active ventilation uses mechanical devices like fans to circulate air. Passive systems are energy-efficient and low-maintenance, whereas active systems offer precise control but require electricity and regular upkeep.

3. Are passive vents any good?

Yes, passive vents are effective for maintaining fresh indoor air, reducing condensation, and helping prevent mold. They operate without electricity, require minimal maintenance, and are environmentally friendly. Modern options, such as window trickle vents, provide controlled airflow even when windows are closed.

4. What is the passive ventilation strategy?

A passive ventilation strategy involves designing buildings to optimize natural airflow, using features like cross-ventilation, stack effect, window placement, and vents. This approach harnesses wind and thermal buoyancy to keep indoor air fresh and comfortable without relying on mechanical systems.

5. How do window trickle vents enhance passive ventilation?

Window trickle vents offer a discreet way to ensure continuous background ventilation, especially in airtight or energy-efficient homes. They allow fresh air to enter even when windows are closed, supporting healthy air quality and reducing moisture without impacting security or insulation. Shengxin's trickle vents are a reliable, high-quality option for this purpose.
