Aluminium Extrusion Profiles: The Costly Details Most Buyers Miss

What Are Aluminium Extrusion Profiles?

If you have ever asked, what are aluminum extrusions, the short answer is simple: they are long aluminum shapes made with a fixed cross-section for use in products, buildings, and equipment. In practice, aluminum extrusion profiles and aluminium extrusion profiles can range from plain bars and channels to highly specialized frame parts, facade members, and enclosure components.

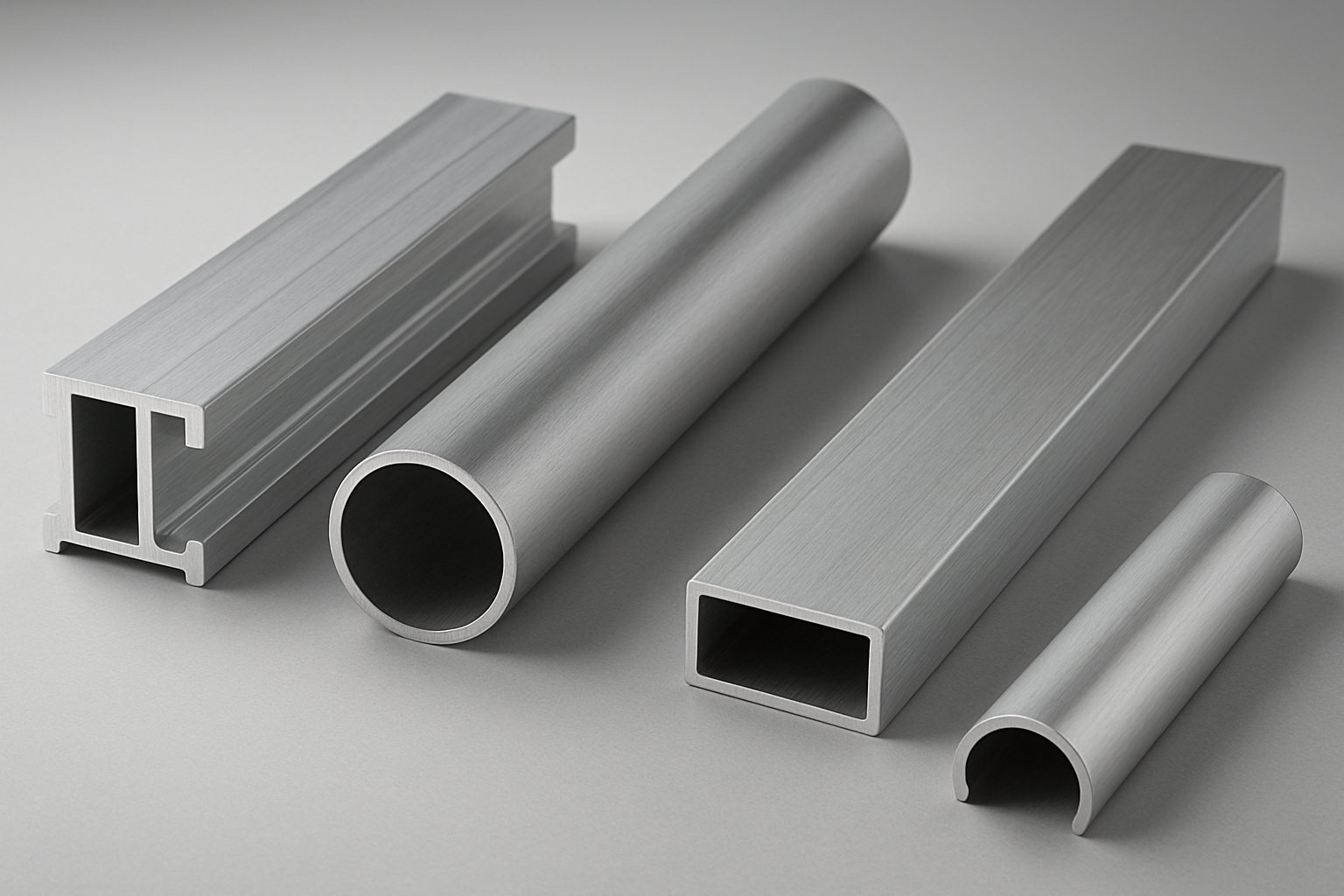

What Aluminium Extrusion Profiles Are

Aluminium extrusion profiles are shaped aluminum sections made by pushing heated metal through a die so the same cross-section can be produced again and again.

A profile is the cross-sectional shape itself, such as a channel, tube, rail, or slot-based frame member. General extrusions cover basic shapes. Structural framing profiles are designed for assembly and support. Architectural profiles place more emphasis on visible surfaces, finish quality, and appearance. That distinction matters because one aluminum extrusion profile may be optimized for stiffness, while another is chosen for clean sightlines and surface finish.

How Extruded Aluminum Gets Its Shape

Guides from JM Aluminium and American Douglas Metals describe the same basic process: an aluminum billet is heated until it becomes malleable, then forced through a steel die. As the material exits, the extruded aluminum takes on the die opening's shape. It is then cooled, cut, and, when needed, further finished or machined for the final use.

Helpful terms to know:

• Alloy: the aluminum grade and chemistry used.
• Temper: the condition of the metal after processing or heat treatment.
• Finish: the surface treatment, such as mill finish, anodizing, or coating.
• Rigidity: how well a shape resists bending or deflection.
• Aluminium profile: a common shorthand for a specific extruded section.

Why Designers Use Aluminum Profiles

• Low weight for easier handling and reduced structural burden
• Natural corrosion resistance from aluminum's protective oxide layer
• Repeatable shapes for consistent assembly and fit
• Design flexibility for simple or complex cross-sections
• Useful across architecture, machinery, electronics, and transport

That broad category is where many buying mistakes begin. A smooth architectural aluminium profile, a machine-frame member, and a plain extruded aluminum channel may all look similar at a glance, yet they behave very differently once load, accessories, and finish requirements enter the picture.

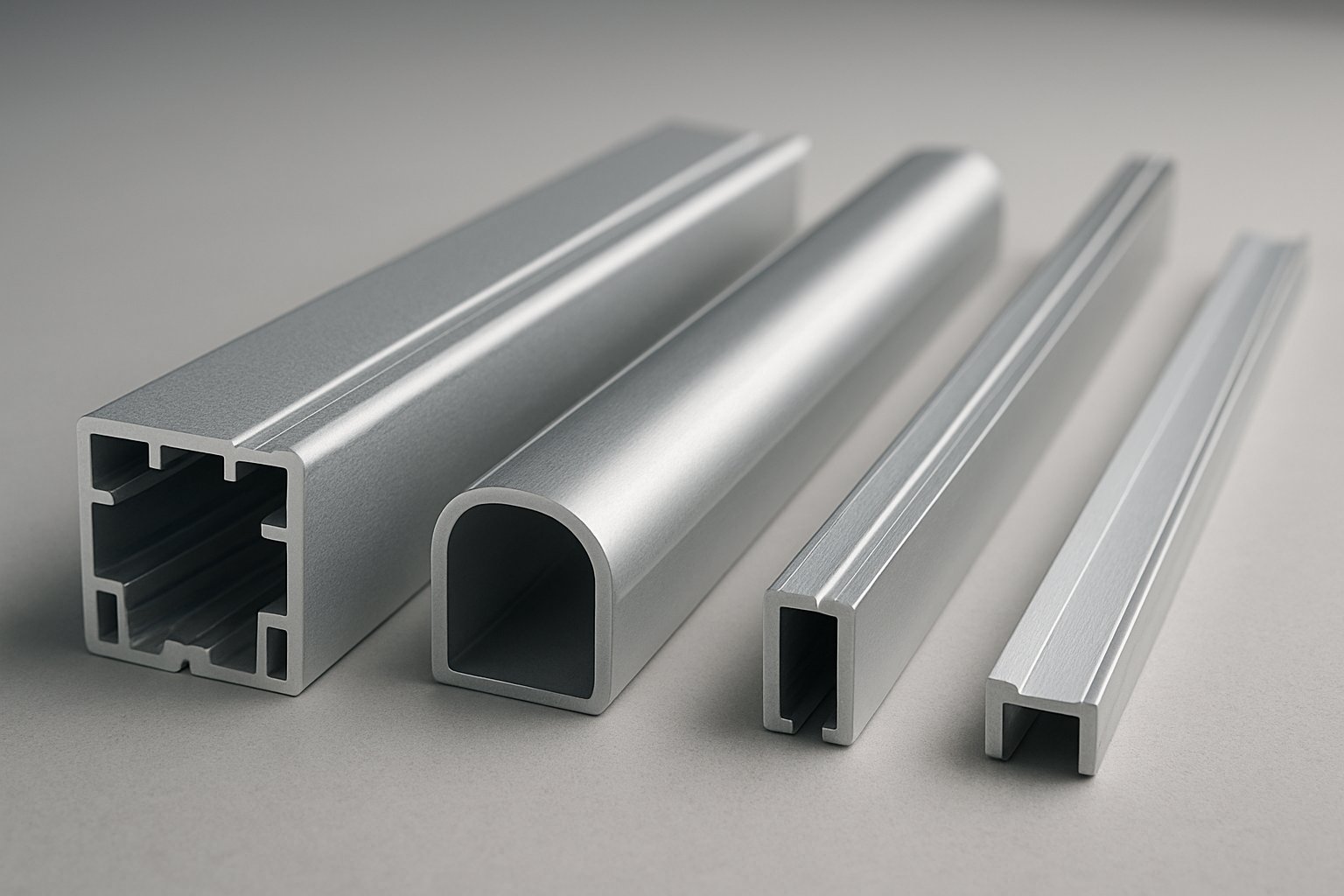

T-Slot Aluminum and Smooth Profile Families

Not every extrusion belongs in the same buying bucket. Some profiles are built to become modular structures. Others are meant to trim an edge, hold a panel, act as a cover, or present a cleaner visible surface. That distinction matters early, because the right family is usually defined by how the part will be assembled and adjusted, not just by how it looks in a catalog.

T-Slot and Smooth Profile Families

A t-slot aluminum profile is primarily a structural member. Its slots are designed to capture T-nuts, bolts, and brackets, which is why it shows up so often in machine frames, safety guarding, workstations, carts, and jigs. A PTSMAKE guide also separates V-slot profiles from T-slot systems: V-slot uses a V-shaped groove for wheel-based linear motion, while T-slot is focused on framing and connection. Outside modular aluminum framing, buyers also run into smoother non-T-slot shapes used for channels, rails, covers, trim pieces, and facade-related assemblies where clean surfaces matter more than universal slot access.

How 20 30 40 and 45 Series Differ

In modular aluminum framing systems, series names generally track the outside size family. The reference material uses examples such as 20x20, 40x40, 40x80, 45x45, and 45x90. In practical terms, a 2020 aluminum extrusion is usually treated as a light-duty option for compact frames or lighter attachments. A 4040 aluminum extrusion is a common mid-range choice when more stiffness is needed. Larger 45-style profiles are often selected for higher-rigidity builds. Searches for an 80/20 framing extrusion usually point to this same broader category of modular slot-based systems. Exact capacity still depends on geometry, wall thickness, alloy, support span, connection style, and allowable deflection.

Best Fits for Frames Guards and Workstations

• Choose slot-based profiles when a machine frame may need sensors, cable clips, panels, or later changes.
• Use T-slot for guards and workstations when easy accessory attachment is part of the design from day one.
• Use smooth channels or cover profiles when flush surfaces, tighter envelopes, or easier cleaning matter more than modular add-ons.
• Consider V-slot only when the profile itself must support wheel-based linear motion.

Profiles with similar outside dimensions can behave like very different systems once hardware, span, and future changes enter the picture. That is where selection starts to shift from family recognition to actual engineering fit.

Choosing Extruded Aluminum Profiles Step by Step

Engineering fit starts with the job, not the catalog page. Two extruded aluminum profiles can share similar outside dimensions yet behave very differently once span, mounting, surface exposure, and assembly method are considered. Guidance from Can Art and MAP points in the same direction: define the application first, then narrow the profile family and details.

Start With the Application and Load Path

Choose function first. Picking a series before defining the job is usually just guessing.

1. Define the application. Is the part a machine frame, guard, enclosure, rail, display, or visible architectural member? The right aluminum profile type changes with the job.
2. Map the load path. Identify where force enters, where the profile is supported, and whether it will mainly bend, twist, carry panels, or hold mounted equipment.
3. Check span and deflection sensitivity. Long unsupported members, instrument mounts, and guarding systems often depend as much on stiffness as on basic strength.
4. List mounting points and add-ons. Sensors, cable routing, hinges, doors, and covers often determine whether open slots are helpful or unnecessary.
5. Note the environment. Indoor dry service, outdoor exposure, washdown conditions, and visible surfaces push the shortlist in different directions.
6. Plan for future changes. If the build may be expanded or reconfigured, leave room for accessory attachment and later machining.

Match Profile Family to Strength and Space

Among the many types of extruded aluminum, family choice usually comes down to stiffness, slot compatibility, and available room. The MAP guide shows a practical pattern: 20 mm systems are typically used for very light-duty builds, 30 mm and 40 mm families cover many light-to-medium and general industrial frames, and 45 mm or larger sections are more common when rigidity matters more. Common aluminum extrusion sizes can narrow the shortlist, but size alone is not a design method. A larger member can still underperform if support conditions, orientation, or connection details are poor.

This is where buyers often misread catalog photos. Smooth channels may save space and look cleaner. Slot-based sections make adjustment and later changes easier. Many real assemblies mix types of aluminum extrusion so the main frame carries load while lighter members handle panels or accessories.

Check Alloy Finish and Hardware Before Finalizing

Before locking in a part number, pressure-test the shortlist. Will the chosen hardware fit the slot or face geometry? Does the part need drilling, tapping, milling, or cut-to-length service? Is appearance important, or is corrosion exposure the bigger issue? Can Art highlights finish and tolerance checks early, while Alu4All explains that alloy and temper affect strength, formability, corrosion behavior, and surface quality. That means similar cross-sections may stop being interchangeable once fabrication and service conditions are added. The shape gets you close. Material and finish decide how confidently you can move from shortlist to specification.

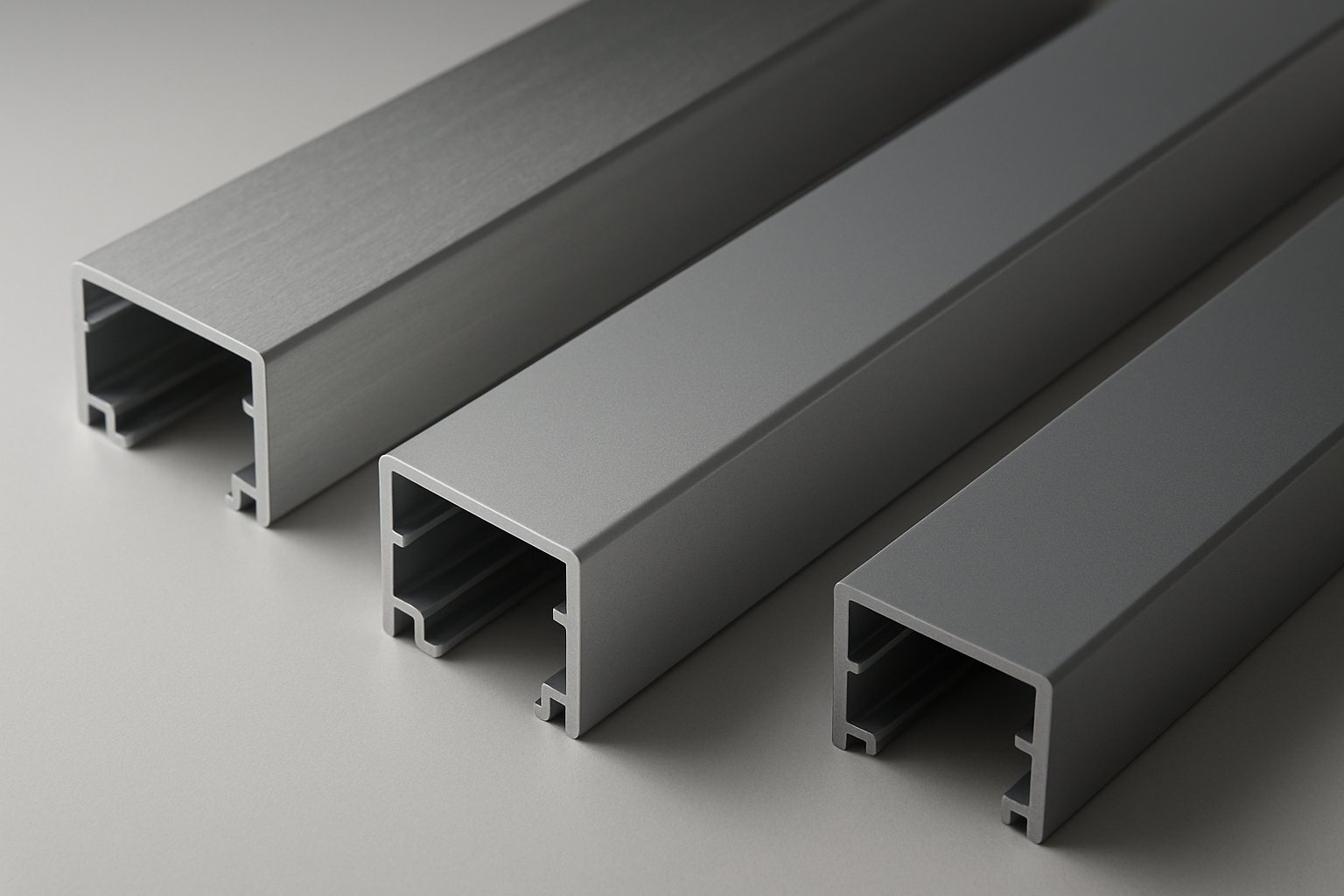

Alloys, Tempers, and Finishes for Aluminum Profiles

Shape gets a profile onto the shortlist, but material details decide how it will actually perform. For buyers comparing extruded aluminium profiles, the real differences often show up in surface quality, corrosion behavior, machining response, and how the part looks after assembly. That is why a profile that works well in a machine frame may not be the best choice for a facade, a handrail, or an extruded aluminium enclosure.

How Common Alloys Differ in Use

Comparison data from Ya Ji Aluminum shows a clear pattern across common 6000 series alloys. 6061 is the balanced option when strength and machinability both matter, which is why it appears so often in structural members and machined parts. 6063 is known for smoother surface finish, strong corrosion resistance, and better extrusion capability, making it a frequent pick for visible architectural aluminum profiles. 6005 sits in the middle as a structural extrusion alloy used in modular structures, walkways, and transport-related builds. 6082 pushes further toward heavy-duty service, with higher strength tendencies and strong marine and industrial credibility, though it is less friendly for intricate, appearance-driven shapes.

What Temper Means in Plain Language

Temper is not the alloy itself. It is the condition created by mechanical or thermal treatment. Guidance from Metal Supermarkets explains why the code after the alloy matters so much. A label such as 6063-T5 or 6061-T6 tells you how the metal was treated and, in turn, how it is likely to behave in use. In simple terms, temper affects strength, hardness, ductility, and resistance to stress. The same alloy can feel very different from one temper to another. Their examples note that T5 means the alloy was cooled from a high-temperature shaping process and artificially aged, while T6 means it was solution heat treated and then artificially aged. That difference matters when you are choosing between easier forming and higher-performance aluminum extrusion parts.

How Finishes Change Performance and Appearance

Finish is where appearance and environment finally meet. Sino Extrud describes mill finish as the raw extrusion straight from the press, with a duller look and only a thin natural oxide layer. By contrast, anodized aluminum material has a thicker electrochemically formed oxide layer that becomes part of the metal, not a coating that peels away. That improves corrosion, wear, and UV resistance, and it also supports cleaner decorative color options.

In practice, visible extruded aluminium profiles often lean toward 6063 plus anodizing, while industrial parts may lean toward 6061, 6005, or 6082 depending on load and fabrication needs. Yet even the right alloy and finish combination can become expensive if the geometry is difficult to extrude or the tolerance expectations are unrealistic.

Engineering Constraints Behind Aluminum Extrusion Shapes

That cost jump usually comes from geometry, not chemistry. A profile can have the right alloy, temper, and finish and still become expensive if the cross-section is hard to extrude consistently. The Ya Ji DFM guide puts it plainly: CAD freedom is not the same as extrusion feasibility. For buyers evaluating aluminium extrusion profiles, that is the point where quoting starts to separate realistic designs from risky ones.

Key Dimensional Terms Engineers Should Read First

A profile can look simple on screen and still be difficult to extrude if the geometry is unbalanced or the tolerance band is too tight.

When comparing aluminum extrusion shapes, do not stop at width, height, and length. Standards such as ASTM B221 and EN 755 are common starting points because they frame how suppliers discuss tolerance, straightness, and shape control.

Wall Thickness Radii and Die Constraints Explained

Uniform walls are one of the biggest design levers. The Ya Ji guide recommends keeping wall-thickness variation within about a 2:1 ratio across the section when possible, because thick areas and thin areas do not flow through the die at the same speed. It also suggests gradual tapers and internal fillets around 0.5 to 1.0 mm or larger where space allows. Sharp internal transitions, knife-edge lips, and deep recesses may look harmless in CAD, but an aluminum extrusion machine has to push real metal through those details without tearing, twisting, or leaving visible streaks.

Catalogs also make extruded aluminum sizes look simpler than they are. Even with common 2020 aluminum extrusion dimensions, a small change in slot opening, wall design, or lip thickness can move a routine part into a harder die category. The same caution applies when reviewing 2020 extrusion dimensions in modular framing systems: the series name is only the start.

CCD deserves special attention too. The Ya Ji guide notes that general-purpose presses often prefer profiles with CCD at or below 203 mm, while larger sections may require more specialized capacity. Solid sections are generally easier and cheaper to run than semi-hollow or hollow shapes, and multi-void hollows are more demanding still.

How Tolerances and Straightness Affect Real Parts

The Hugh tolerance guide breaks tolerance into feature accuracy, angular alignment, flatness, straightness, twist, and overall shape deviation. It also notes that very high precision can raise tooling cost by up to 25 percent. That is why tight tolerances should be reserved for gasket lands, sliding fits, datum faces, and other true functional zones, not every surface on the drawing.

Long, slender profiles are especially sensitive to bow and twist, so buyers should define where straightness actually matters: across the full bar, at cut lengths, or only at assembly interfaces. Once those realities are written into the specification, the sourcing picture gets clearer. Some needs will fit stock profiles well. Others will only make sense with a custom section designed around manufacturability from the start.

Custom Aluminum Extrusion vs Standard Stock Profiles

Manufacturability usually decides the sourcing path faster than most buyers expect. If the section is simple, timing is tight, and the application can live with common shapes, standard aluminum extrusions are often the practical answer. If the design needs a unique cross-section, built-in features, or better weight-to-function efficiency, a custom aluminum extrusion starts to earn its extra upfront cost.

When Standard Profiles Save Time and Complexity

A sourcing overview from Paramount Extrusions describes stock profiles as standard shapes such as angles, channels, tubes, and bars that mills or distributors keep in inventory. That brings three immediate advantages: no tooling charge, faster availability, and lower upfront investment. For prototypes, replacement parts, and small builds, stock is often the cleanest path because you can move straight to cutting, drilling, or assembly.

The limitation is design fit. A readily available shape may solve the basic geometry, yet still force extra brackets, spacers, or machining because it was not created for your exact application.

When Custom Aluminum Extrusion Becomes the Better Fit

Custom profiles use a die made for your drawing. The same Paramount guide highlights why buyers accept that added step: the section can be tailored to the job, optimized for weight and function, and designed to combine features that might otherwise require multiple parts. In a well-matched design, that can reduce downstream machining and assembly work.

The tradeoff appears earlier in the project. Tooling cost comes first, lead time grows because the die must be built, and minimum order quantities are commonly part of the conversation. That route makes more sense when performance, repeatability, or higher production volume matters more than immediate availability.

How to Use Supplier Catalogs to Narrow Options

If you are asking where to buy extruded aluminum, start with the catalog before you start requesting quotes. A useful aluminum extrusion profiles catalog shows whether a supplier mainly supports stock shapes, custom programs, or both. It also helps you spot finish coverage, typical application focus, and whether secondary services are worth discussing early.

• Shengxin Aluminium: a helpful catalog example when you need to review custom profile options, anodized finishes, and architectural or industrial use cases in one place.
• Regional mills or fabricators: useful when close technical collaboration or local turnaround matters.
• Stock distributors: useful when common shapes are enough and custom tooling would add unnecessary time.

The broader sourcing question also has a location layer. The Paramount view notes that domestic buying generally supports faster turnaround and easier communication, while imports may appeal when price matters more and lead time is flexible. That distinction becomes sharper once hardware, machining, and finish details are added, because the easiest profile to buy is not always the easiest one to build with. Slot size, connectors, end prep, and secondary operations often decide that part.

Aluminum T-Slot Extrusion Compatibility Basics

A profile that looks right in a catalog can still be frustrating on the shop floor. Much of that comes down to compatibility. An aluminum t slot extrusion is not just a structural member. It is also the mounting interface for nuts, bolts, brackets, panels, doors, and motion parts. Guidance from AngleLock and Parco makes the practical lesson clear: check the accessory ecosystem before you commit to a series, not after the frame is drawn.

Slot Size and Connector Compatibility Basics

Hardware fit starts with the exact profile family and slot standard. T-nuts, T-bolts, corner brackets, joining plates, hinges, feet, and linear motion parts are often series-specific. Some nuts slide in from the end. Others are drop-in styles that can be added without taking the structure apart. AngleLock also notes that spring-loaded nuts can help keep alignment during vertical or overhead assembly.

• Match fasteners and brackets to the exact profile series and slot category.
• Check whether hardware must be inserted from the end or can be added after assembly.
• Verify thread size, bolt access, and whether a washer or specialty connector is required.
• Confirm compatibility for hinges, gussets, base plates, casters, and covers before ordering.
• If motion is involved, confirm mounting for bearings and extruded aluminum rails in the supplier documentation.

Panels Brackets Fasteners and End Prep

Panel planning often decides whether a system feels clean or improvised. Parco separates panel mounts, gaskets, door hardware, and slide track into their own groups, which is a reminder that panels are a system, not an afterthought. If your design uses extruded aluminum panels, polycarbonate, or mesh, verify how the panel is retained and whether it needs to be removable, hinged, or sealed. Fastener style matters too. AngleLock points out that some end-fastener methods require a tapped hole in one profile and a drilled access hole in the mating member, while drop-in fasteners make later add-ons much easier.

How Machining and Finishing Affect Profile Choice

Secondary fabrication should be planned with the profile, not added as an afterthought. Silver City Aluminum lists common follow-up operations such as sawing, deburring, punching, mitering, heli-coiling, and CNC fabrication, and it notes that some features can be designed into the extrusion itself. That changes buying decisions in a real way. A profile meant for precise cut lengths, drilled access holes, milled connector pockets, or tapped ends should be chosen with those operations in mind from the start. The same caution applies to finish order. If machining happens after anodizing or coating, exposed edges and cosmetic marks may become part of the result. Even simple aluminum channel extrusions or frames carrying extruded aluminum rails are easier to specify when hardware, end prep, and machining are defined together. That list of details also becomes the backbone of a solid quote request.

Aluminum Extrusion Quote Checklist and Catalog Research

All those slot, finish, and machining decisions only help if they make it into the RFQ. Buyers get better quotes on aluminum extrusion when they send a complete specification package instead of a rough sketch and a few assumptions. Guidance from Profile Precision Extrusions and inspection practices outlined by Ya Ji Aluminum point to the same lesson: clarity upfront reduces rework later.

Specification Checks Before You Request a Quote

1. Define the application: frame, trim, enclosure, rail, facade, or other end use.
2. Name the profile family: stock shape, T-slot, channel, tube, or custom aluminium extrusion profile.
3. List outside dimensions and cut length: include drawing, sketch, or CAD if available.
4. Specify alloy and temper: common examples in the references include 6061-T6 and 6063-T5.
5. Call out finish requirements: mill finish, anodize, powder coating, or other approved treatment.
6. Note machining and fabrication: drilling, tapping, milling, punching, or cut-to-length work.
7. Set tolerance priorities: identify which features are truly critical.
8. State standards and inspection needs: such as ASTM B221, EN 755, or GB/T 6892.
9. Clarify sourcing path: stock or custom production, plus expected quantity.

Documents and Certifications Worth Confirming

For higher-risk or higher-visibility aluminum extrusions, ask for inspection reports, mechanical property certificates, coating thickness records, and photos of inspected parts. Supplier quality systems such as ISO 9001 can also be worth confirming.

How to Compare Supplier Catalogs Efficiently

• Shengxin Aluminium: useful if you want to review custom profile options, anodized finishes, and architectural or industrial applications in one aluminum profile catalog.
• Check whether the supplier focuses on stock shapes, custom programs, or both.
• Verify finish range, machining services, and inspection documentation before asking where to buy aluminum extrusion.
• Match catalog data to engineering sheets, not marketing images.
• Confirm that the quoted aluminium extrusion profile matches your accessory, tolerance, and finish needs.

A final caution: gather data from real catalog pages, drawings, and QC documents before sending inquiries. In this market, assumptions are expensive.

FAQs About Aluminium Extrusion Profiles

1. What is the difference between T-slot aluminum and smooth aluminium extrusion profiles?

T-slot profiles are made for modular building. Their slots accept nuts, bolts, brackets, panels, and add-ons, which makes them a strong fit for machine frames, guards, and workstations. Smooth profiles are usually chosen when a project needs a cleaner appearance, a tighter footprint, easier cleaning, or a more architectural finish. The right option depends on whether easy reconfiguration or a simpler outer surface matters more.

2. How do I choose the right aluminium extrusion profile for a project?

Start with the application, not the catalog size. Think through where the load travels, how far the profile spans, what hardware or panels must connect to it, and whether the part will be exposed to weather, chemicals, or visible finish requirements. After that, narrow the choice by profile family, alloy, temper, finish, and machining needs. This method helps avoid picking a profile that looks suitable on paper but creates problems in assembly or service.

3. Which alloy is commonly used for visible aluminum profiles?

For finish-sensitive and visible parts, 6063 is often preferred because it extrudes well and supports attractive surface treatment. When machining needs or structural demands increase, buyers often compare 6061, 6005, or 6082 instead. In practice, the best alloy is the one that balances appearance, fabrication, corrosion resistance, and the way the finished part will be used.

4. When is a custom aluminum extrusion better than a standard stock profile?

Custom extrusion becomes the better route when stock shapes force too many extra brackets, too much machining, or a poor overall fit. It is especially useful when one profile can combine several functions into one section and the project has enough volume or repeatability to justify tooling. During the research stage, buyers often review custom profile catalogs and finish capabilities from suppliers such as Shengxin Aluminium to compare architectural and industrial options before requesting quotes.

5. What should be included in an RFQ for aluminium extrusion profiles?

A strong RFQ should include the application, profile type, drawing or cross-section, cut length, alloy, temper, finish, machining requirements, tolerance priorities, and any standards or inspection documents that matter. It also helps to state whether you want stock or custom production and what quantity you expect. The more complete the package, the easier it is for suppliers to quote accurately and recommend a profile that will actually fit the build.
