Custom Aluminum Bumper Beam for Tesla Model Y with Precision Manufacturing for EV Projects
High-strength aluminium bumper beam for Tesla model Y, offering lightweight durability and excellent crash protection.
Brand:
ANHUI SHENGXINItem NO.:
SX-PT0031Payment:
T/T, or L/C at sightPrice Range:
10 - 200000/$0.74MOQ:
100Product Origin:
Anhui ChinaColor:
Black/White/Black/CustomizedShipping Port:
Shanghai/Ningbo/Wuhu PortLead Time:

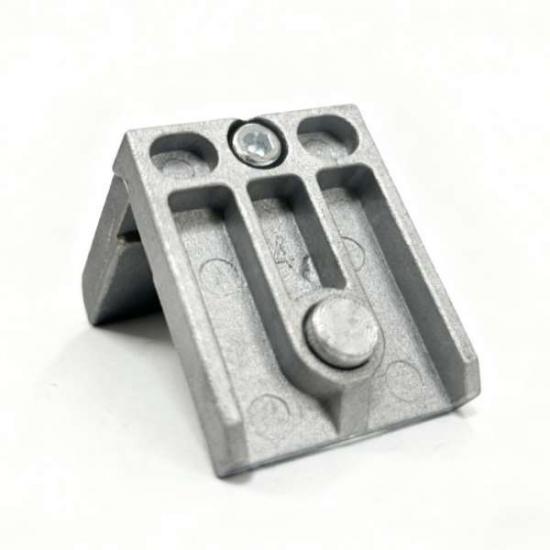

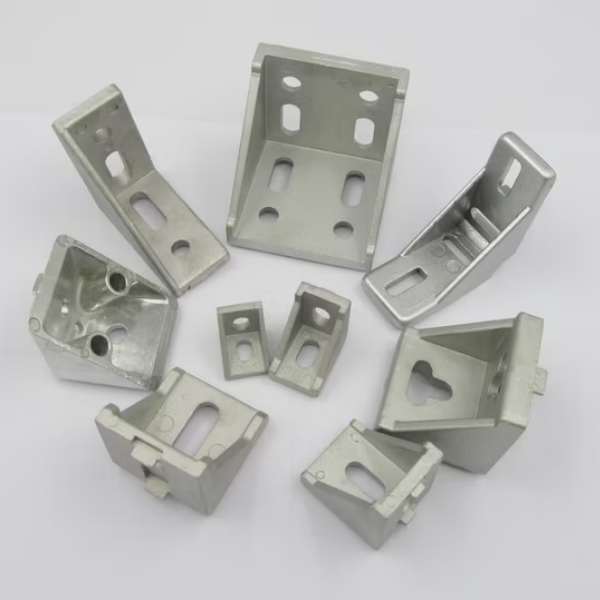

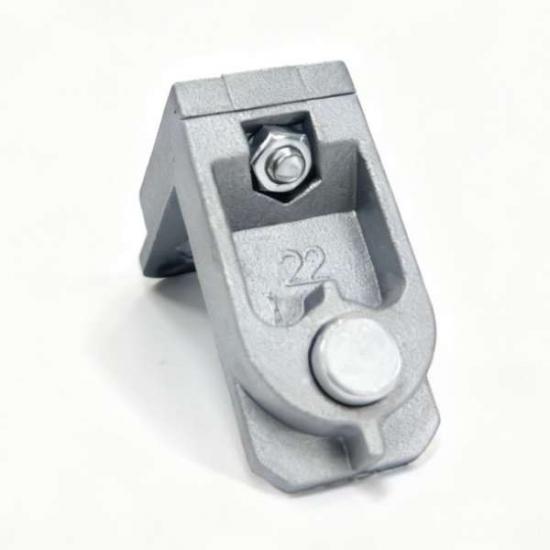

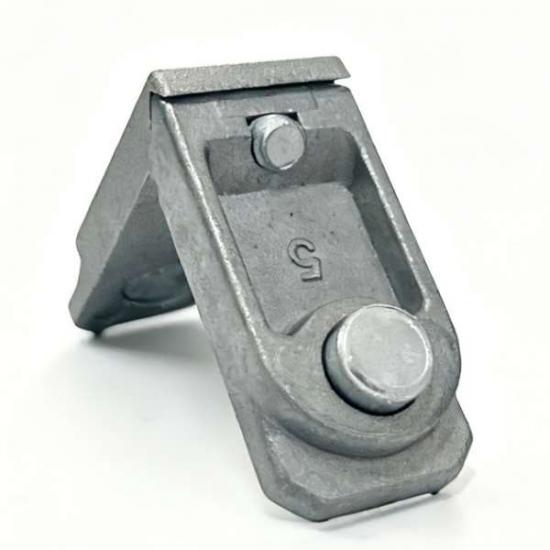

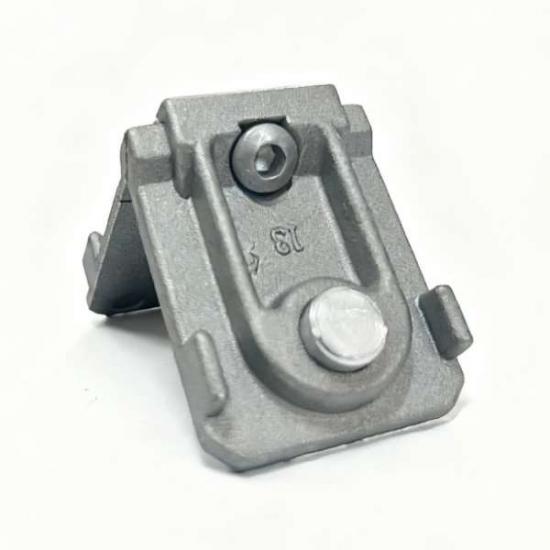

25 - 30 DaysThe Aluminum Profile Angle Bracket is a critical component for connecting, reinforcing and supporting aluminum profile frame structures in window and door systems. It provides reliable corner support and precise alignment at profile joints. Manufactured from high-strength aluminum alloy, this bracket is lightweight, corrosion-resistant and dimensionally stable. Typical uses include window and door frames, curtain walls, partition systems and other aluminum structural applications.
Compared with traditional steel fasteners, an Aluminum Alloy Angle Bracket offers lower weight, superior corrosion resistance and a more consistent aesthetic, which suits door and window applications that require precise assembly and long-term stability.
Our Aluminum Alloy Angle Bracket products are typically produced from 6063-T5 or 6061-T6 aluminum alloy. These alloys provide a good balance of tensile strength, machinability and corrosion resistance. Surface treatments commonly offered include anodizing, powder coating and electrophoretic coating to improve durability and environmental resistance.
| Item | Specification / Explanation |
|---|---|
| Material | 6063-T5 / 6061-T6 aluminum alloy |
| Surface treatment | Anodizing, powder coating, electrophoresis; color options: silver, black, champagne, custom colors |
| Mechanical properties | High tensile strength, stable dimensional tolerance, resistance to deformation under normal loads |
| Standards | Manufactured to meet common international standards (ISO / EN) where applicable |
| Typical lifespan | Long service life in normal environmental conditions with appropriate surface treatment |

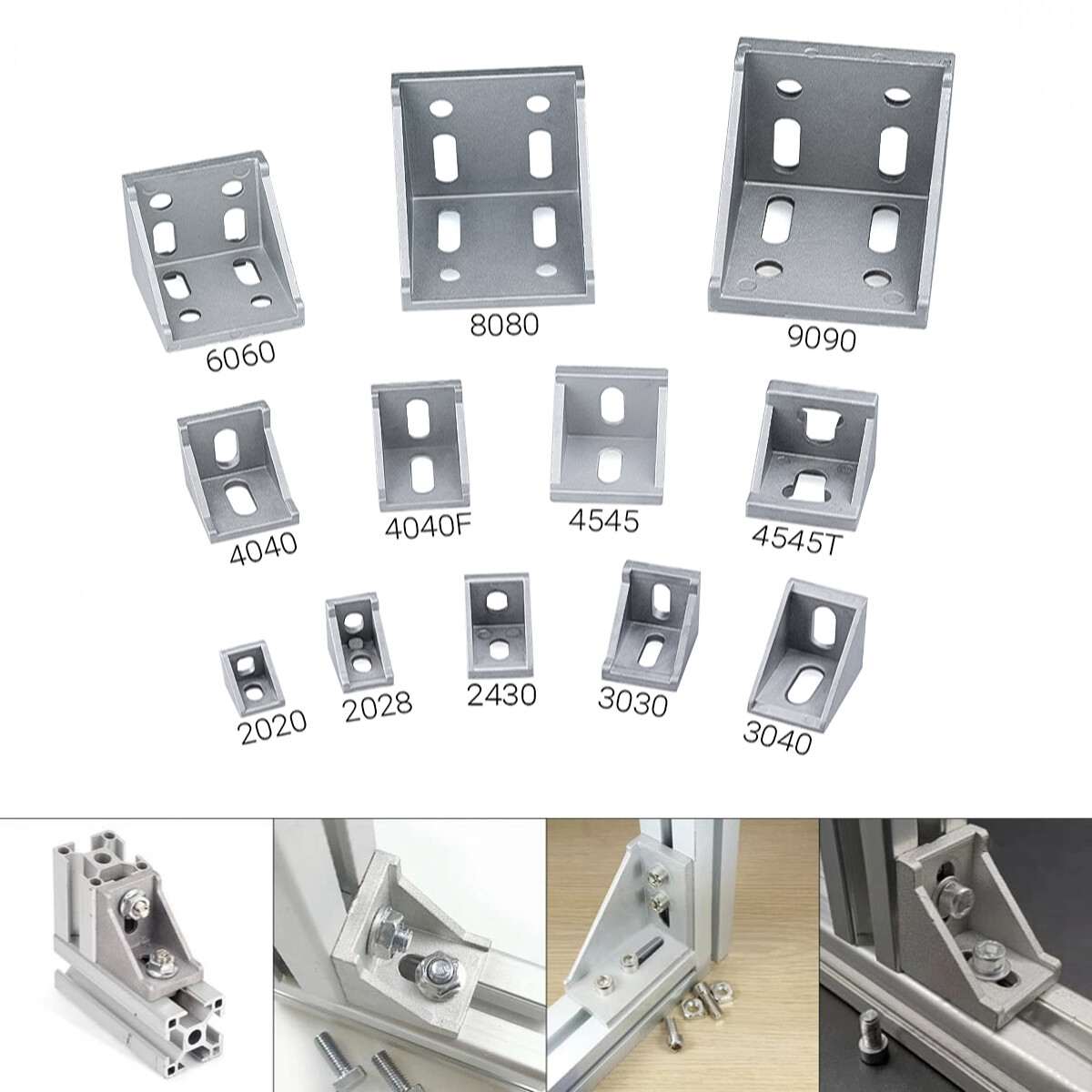

Angle Brackets For Aluminum Frames are available in a range of standard sizes and hole configurations to match common aluminium extrusion series. Standard models support 30, 40, 45, 50 and 60 series profiles. Thickness, hole spacing and mounting hole diameter can be customized to project requirements.
| Specification | Typical Options |
|---|---|
| Profile compatibility | 20, 30, 40, 45, 50, 60 series aluminum profiles |
| Common dimensions | 20×20 mm, 30×30 mm, 40×40 mm, 45×45 mm, 50×50 mm, and custom sizes |
| Thickness | 2.5 mm, 3 mm, 4 mm, 5 mm, or custom thicknesses for reinforced models |
| Hole configurations | Various hole diameters and patterns; slotted holes available for alignment adjustments |
| Special/custom options | Custom hole patterns, additional gussets, welded reinforcement, or special angles (45°, 135° etc.) |
A professional Aluminum Angle Bracket Manufacturer can produce custom variants following sample approval to ensure precise fit with existing profile systems.

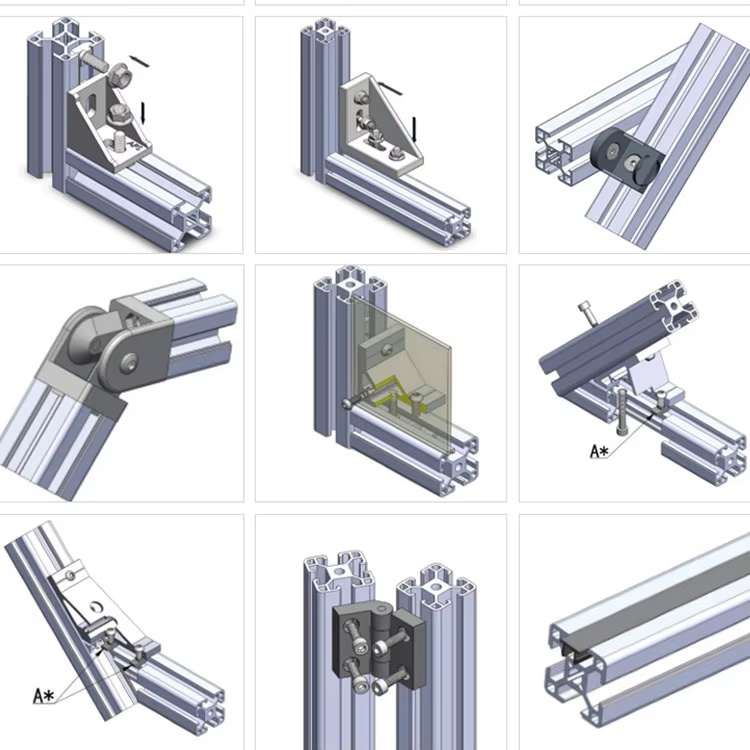

Aluminum Profile Accessories for frame connections vary by installation style and structural requirements. Common types include:
| Type | Characteristics | Typical Use |
|---|---|---|
| External angle bracket | Mounted on the outside of profiles; easy to install and service | Industrial frames, automation equipment |
| Internal angle bracket | Hidden installation for a clean appearance | Window and door frames, architectural frames |
| Adjustable angle bracket | Angle-adjustable (e.g., 45°–135°) for flexible assembly | Custom door/window geometries, special profiles |
| Reinforced / heavy-duty bracket | Thicker sections or gusseted design for higher load capacity | Heavy doors, high-wind curtain walls |
| Light-duty bracket | Low weight, cost-effective for non-critical connections | Decorative frames, light partition systems |
Selecting the correct Aluminum Profile Connector type depends on structural load, aesthetic requirements and installation accessibility.
As an experienced Aluminum Angle Bracket Manufacturer, our production flow includes mold design, extrusion, precision machining, surface finishing and multi-step quality inspection. Typical process steps:
| Inspection Item | Requirement | Method |
|---|---|---|
| Dimensional tolerance | ±0.1 mm (typical) | Digital calipers and inspection fixtures |
| Angle deviation | ≤ ±0.5° | Precision angle gauges |
| Tensile / strength | Meets alloy specification (dependent on material) | Universal testing machine |
| Surface film thickness | ≥ 10 µm for anodized coatings (as specified) | Coating thickness gauge |

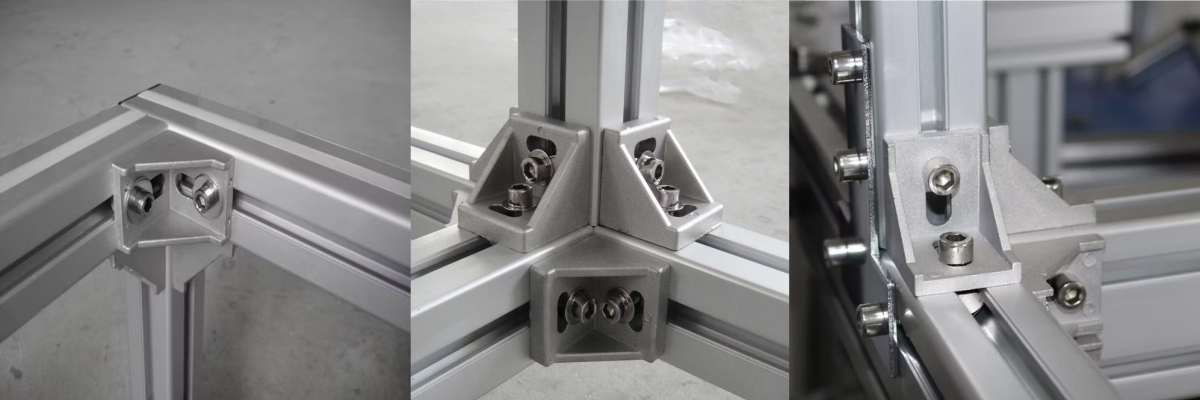

In door and window assemblies, an Aluminum Profile Angle Bracket secures corner joints, maintains frame squareness, and contributes to the overall wind-load and sealing performance of the system. Typical application examples:
| Application | Function |
|---|---|
| Casement and sliding windows | Fixes corner geometry and prevents frame distortion under load |
| Curtain wall systems | Connects mullions and transoms for stable curtain support |
| Glass partitions | Allows clean, secure connections between glass and profiles |
| Sunroom (conservatory) structures | Provides reinforcement for long-span aluminum frames |
Proper selection and correct installation of Angle Brackets For Aluminum Frames directly affect the sealing performance and lifetime of the door/window assembly.
| Accessory | Purpose | Best match |
|---|---|---|
| Spring nuts (T-nuts) | Provide secure threaded fastening within profile slot | Internal brackets and concealed connectors |
| Hex socket bolts | High clamping force for structural joints | Reinforced and heavy-duty brackets |
| End caps | Improve appearance and prevent dust ingress | External brackets and exposed profiles |
| Reinforcement plates | Distribute loads and increase stiffness | High-wind or heavy-door frames |
Use recommended fastener grades and torque settings to avoid loosening and to maintain warranty conditions.
Selecting the correct Aluminum Profile Angle Bracket requires consideration of profile series, connection type, load requirements and surface treatment. Use the following checklist:
| Selection Factor | Guidance |
|---|---|
| Profile series | Choose brackets that match the profile cross-section and slot geometry (20–60 series) |
| Connection style | Internal vs external depends on desired appearance and access for maintenance |
| Load requirements | For heavy doors or high wind loads, use reinforced or thicker brackets |
| Surface treatment | Outdoor installations: anodized or specialized coating for corrosion resistance |
| Budget | Light-duty brackets reduce cost for non-critical aesthetic frames; reinforce where safety or performance is required |
If in doubt, consult structural or window system documentation to determine design loads and recommended connector types.
| Question | Answer |
|---|---|
| Q1: What load can the Aluminum Profile Angle Bracket support? | A: Load capacity depends on bracket size, thickness and fastening arrangement. Standard light-duty brackets are suitable for normal window frames; reinforced brackets or gusseted designs are recommended for heavy doors or curtain wall connections. We can provide a technical load table for specific bracket models on request. |
| Q2: Are these brackets compatible with all window and door profiles? | A: The brackets are designed to work with mainstream aluminum profile series (20–60). For non-standard profiles, custom brackets can be manufactured to match slot geometry and wall thickness. |
| Q3: Can you customize dimensions or hole patterns? | A: Yes. As an Aluminum Angle Bracket Manufacturer, we support customization for dimensions, hole spacing and special features after sample confirmation. |
| Q4: Do brackets come with screws and other fasteners? | A: Fasteners can be supplied as an optional kit. Typical accessory kits include hex socket bolts and spring T-nuts or dedicated profile connectors. Confirm your preferred fastener type at inquiry. |
| Q5: Which surface treatments are available? | A: Anodizing, powder coating and electrophoresis are available. Colors and film thickness are produced to agreed specifications for outdoor durability. |
| Q6: Will these brackets rust or corrode? | A: Aluminum alloys are inherently corrosion-resistant. Combined with proper anodizing or coating, the Aluminum Alloy Angle Bracket exhibits excellent corrosion resistance for typical indoor and outdoor environments. |
| Q7: What are shipping lead times and packaging? | A: Standard models often have stock availability. Custom products typically require a 3–7 day production lead time after sample approval. Export packaging uses protective film and neutral cartons to prevent damage during transit. |
| Q8: What is the minimum order quantity (MOQ)? | A: Typical MOQ is 500 pieces, but project-based MOQ can be negotiated based on size and customization requirements. |
| Q9: Are samples available for testing? | A: Yes. Samples can be provided for evaluation; sample costs and delivery depend on size and customization. Contact us to arrange a sample. |
The Aluminum Profile Angle Bracket is a fundamental Aluminum Profile Accessory for door and window frame assemblies and other aluminum structures. Proper selection, precise manufacturing and correct installation of these brackets ensure frame accuracy, durability and long-term performance. Choose the appropriate bracket type and surface finish for the intended environment and load conditions to achieve reliable results.
If you require technical drawings, load tables or custom design support, provide the profile series, expected loads and desired surface finish. Our technical team can supply detailed suggestions and sample production guidance.
