Brand:
ANHUI SHENGXINItem NO.:
SX-PW105Payment:
T/T, or L/C at sightMOQ:
2 Tons (Negotiable)Product Origin:
Anhui ChinaColor:
Natural/CustomShipping Port:
Shanghai/Ningbo/Wuhu PortLead Time:

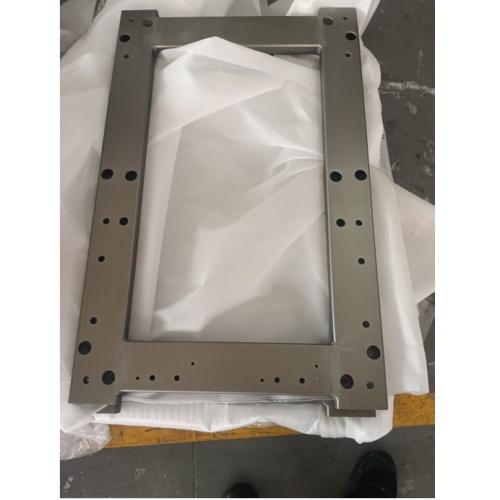

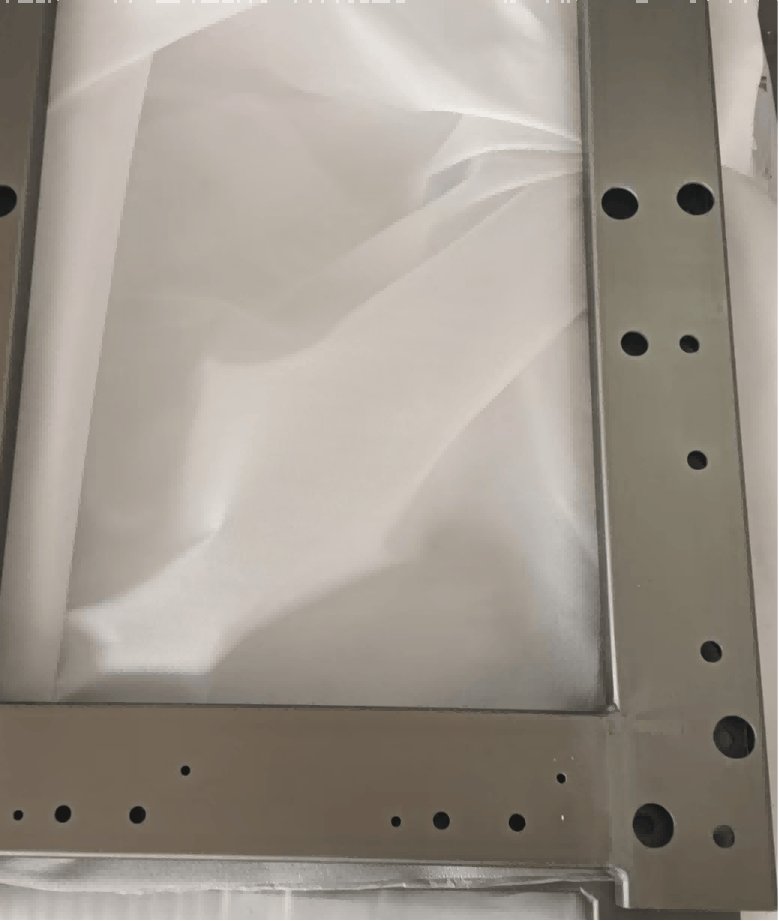

15 - 25 DaysOur battery rear base is designed for seamless integration with the overall battery tray or enclosure system. It features pre-machined mounting holes and precisely controlled tolerances, enabling fast assembly on production lines. Whether for passenger electric vehicles, commercial trucks, or retrofit applications, this part can be customized in dimensions, hole patterns, and surface treatment to meet your exact requirements.
As an experienced aluminum battery tray and structural parts manufacturer, we support full customization from concept to serial production. All our products are manufactured under strict quality control and are compatible with international standards for EV safety and performance.
| Material Grade | Al 6005A / 6061 / 6063 (T6 temper) |
| Manufacturing Process | Extrusion + CNC machining + welding (optional) |
| Surface Treatment | Mill finish / Anodized (clear, black) / Powder coat |
| Machining Tolerance | ±0.1 mm (for CNC-drilled holes and milled surfaces) |
| Application | EV battery pack rear end, module support base |
| Customization | Dimensions, hole pattern, coatings, packaging |
We fully tailor the Battery Rear Base to your project specifications. The table below outlines common customizable parameters.
| Parameter | Standard Range | Remarks |
|---|---|---|
| Length & Width | 200mm - 1200mm | According to drawing |
| Wall Thickness | ≥0.5mm | Extrusion capability limit |
| Hole Pattern | Fully customizable | CNC drilled or milled |
| Surface Finish | Anodizing / Powder / PVDF | Full RAL colors available |
| Packaging | Bulk / Custom pallet & sticker | 5 container loading bays |

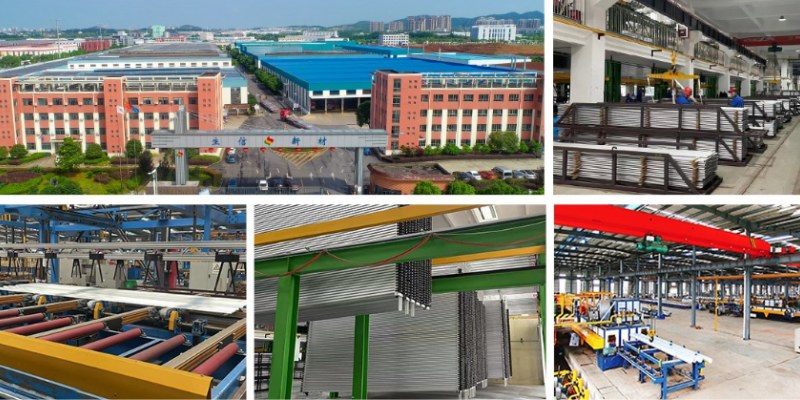

With nearly three decades in aluminum manufacturing, Shengxin delivers engineering-grade battery structural parts backed by massive in-house capacity.
Since establishment, we’ve accumulated deep know-how in complex aluminum profiles, serving industries from automotive to clean energy.
100,000-ton annual capacity across 35 extrusion lines (up to 5500 tons). Outer diameter ≤550mm, wall thickness ≥0.5mm. In-house mold library with 500,000 molds ready.
3 anodizing lines, 3 powder coating lines (2 vertical, 1 horizontal), 1 PVDF line, and 4 wood grain transfer lines. Full RAL color and 3D wood grain customization.
Imported CNC equipment handles cutting, milling, drilling, and tapping to tight tolerances, ensuring every Battery Rear Base fits perfectly.
Global Trust: Exported to 97 countries across 6 continents. Compliance with GB5237, Qualanod, BS3987, JIS H8601, JIS H8602, EN755, EN12020 and more. 5,000-ton warehouse and 5 independent container loading platforms ensure efficient, damage-free delivery.
A: It’s the aluminum structural plate that supports the rear portion of an EV battery module or pack, providing secure mounting points and helping maintain the integrity of the entire enclosure under dynamic loads.
A: Absolutely. We accept 2D/3D drawings in common formats. Our engineering team will review manufacturability and suggest optimizations if needed before prototyping.
A: Prototype samples can be ready in as fast as 2–3 weeks, depending on complexity. Mass production lead times vary from 4–8 weeks, discussed case by case.
A: We are flexible. For initial trials, we can produce smaller quantities. MOQ will depend on the specific extrusion die and finishing requirements; we’ll confirm it after design review.
A: Yes. The 6000-series aluminum we use is fully recyclable without loss of properties, supporting your sustainability targets and compliance with environmental regulations.
