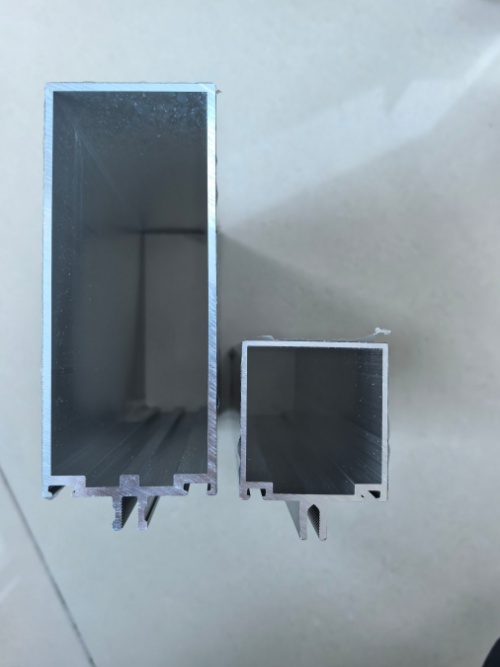

The Bridge-Cut Aluminum Alloy Profile solves the fundamental weakness of traditional aluminum window and door frames: their high thermal conductivity. Aluminum is an excellent conductor of heat — a solid aluminum frame acts as a thermal bridge, allowing indoor heat to escape and outdoor cold to penetrate, causing energy loss and condensation. Bridge-cut technology physically interrupts this heat path by separating the profile into two distinct aluminum sections — interior and exterior — and joining them with a low-conductivity PA66 GF25 polyamide insulating strip. This is the “broken bridge” or “bridge-cut” principle, and it transforms ordinary aluminum profiles into high-performance thermal-insulating components suitable for modern energy codes.

As an aluminum alloy profile, our bridge-cut sections inherit all the advantages of 6063-T5 aluminium: high strength-to-weight ratio, inherent corrosion resistance, excellent extrudability for complex multi-chamber geometries, and 100% recyclability at end of life. The PA66 strip, reinforced with 25% glass fibre, provides not only thermal insulation (0.30 W/m·K versus 160 W/m·K for aluminium) but also the mechanical integrity required to withstand wind loads, operating forces, and decades of thermal cycling. The composite profile is assembled in our factory using automated roll-forming equipment that crimps the strip into precision-knurled grooves, creating a mechanical interlock that is tested to EN 14024 shear strength standards.

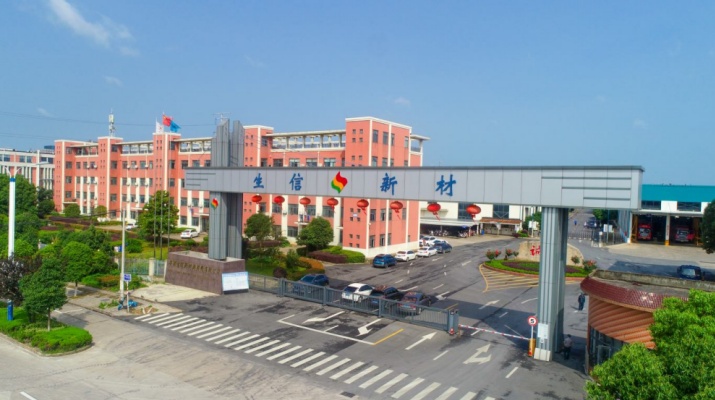

Shengxin produces bridge-cut aluminum alloy profiles entirely in-house — from billet casting and extrusion of the aluminum halves, through surface finishing (anodizing, powder coating, or PVDF), to final thermal break assembly. With 35 extrusion lines, a dedicated automated crimping line, and a 500,000+ die library, we supply bridge-cut profiles to window and door fabricators in 97 countries. Every profile batch is accompanied by mill certificates, PA66 material certs, and thermal break inspection reports, giving you full confidence in the thermal performance and structural integrity of your fenestration products.

Features & Benefits

• Effective thermal bridge elimination: The PA66 GF25 strip creates a physical gap of 14.8–40mm between the interior and exterior aluminum, reducing frame Uf values to 1.8–3.2 W/m²K — a 50–70% improvement over non-insulated aluminum frames.
• Aluminum alloy strength and lightness: 6063-T5 alloy provides structural integrity for large window sashes and door leaves while weighing significantly less than steel or timber alternatives. Multi-chamber profile designs further increase stiffness without adding material.
• Permanent condensation resistance: By keeping the interior aluminum surface close to room temperature, bridge-cut profiles eliminate the winter condensation that damages interior paint, wallpaper, and window boards — a key selling point for end-users.
• Fully recyclable at end of life: Unlike uPVC frames, aluminium bridge-cut profiles are 100% recyclable without loss of properties. The PA66 strip can be separated during recycling, and the aluminum re-enters the production cycle — supporting circular economy and green building certifications.
• Stable dimensions across temperature ranges: Aluminum's low coefficient of thermal expansion, combined with the flexible PA66 strip, maintains frame geometry even under extreme seasonal temperature swings — preventing jamming of sashes and ensuring consistent weather sealing.
• Versatile finishing options: The aluminum substrate accepts anodizing, powder coating, PVDF, and wood grain transfer — all applied in-house at Shengxin prior to thermal break assembly, ensuring a durable, uniform appearance inside and out.

Bridge-Cut vs. Non-Insulated Aluminum Alloy Profile: The Difference

The bridge-cut profile is no longer a premium upgrade — it is the baseline requirement for aluminum windows and doors in most developed markets. For general thermal break information, see our thermal break aluminum profile overview.

Technical Specifications

Where Bridge-Cut Aluminum Alloy Profiles Are Used

• Energy-efficient residential windows and patio doors: Bridge-cut profiles are the standard for new-build housing, apartments, and renovations where building regulations mandate thermally broken frames for energy performance and condensation control.
• Commercial aluminium doors and storefronts: High-traffic entrances, office partition doors, and retail shopfronts benefit from the slim sightlines and robust construction of aluminium, while the thermal break ensures interior comfort and energy compliance.
• Curtain wall and façade systems: For building envelopes, deep bridge-cut mullion and transom profiles provide the structural capacity to span floor-to-floor heights while achieving the U-values required by ASHRAE 90.1 and EN 13947.

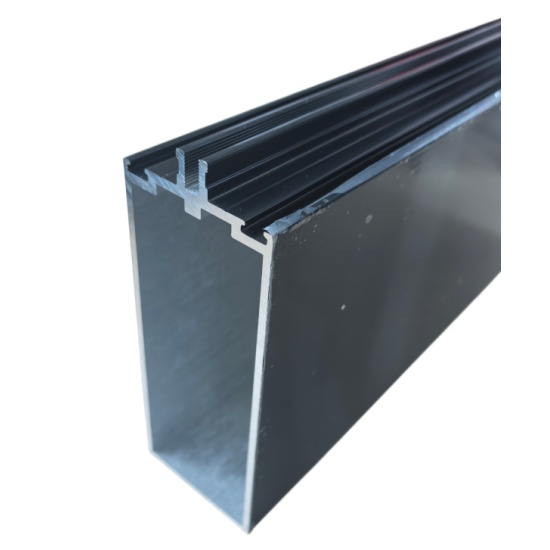

• Passive House and net-zero buildings: With PA66 strips up to 40mm wide, our bridge-cut profiles contribute to whole-window Uw values below 0.8 W/m²K — meeting the stringent thermal requirements of Passive House certification.
• Cold climate and high-altitude projects: In regions where winter temperatures regularly fall below -10°C, non-insulated aluminium frames become thermally uncomfortable and prone to ice formation. Bridge-cut profiles eliminate this issue entirely.
• Acoustic-rated glazing systems: The PA66 strip dampens sound transmission through the frame, contributing to overall window sound reduction when combined with appropriate acoustic glazing — important for urban, airport, and roadside buildings.

Value-Added Processing Options

Why Shengxin for Bridge-Cut Aluminum Alloy Profiles?

A bridge-cut profile is a composite structure. Its long-term performance depends equally on the quality of the aluminium extrusion, the precision of the PA66 strip, and the reliability of the mechanical bond between them. Shengxin’s 29 years of aluminium expertise and vertically integrated manufacturing give you certainty across all three factors.

Partnering with Fabricators Worldwide: 5,000-ton warehouse with 5 independent container loading platforms. We support your business with Uf value calculations, profile optimisation advice, and just-in-time delivery scheduling.

Bridge-Cut Aluminum Alloy Profile FAQ

Custom Bridge-Cut Aluminum Profile Solutions

From a specific PA66 strip width to a completely new multi-chamber bridge-cut profile design, Shengxin's custom extrusion and thermal break assembly service turns your window or door system concept into production-ready profiles with verified thermal and structural performance.

How It Works:

1. Send your drawing — 2D PDF/DWG or 3D STEP/IGES file of your desired bridge-cut profile geometry.
2. Our engineers review — we assess extrudability, thermal break placement, and provide Uf value and structural feedback.
3. Receive a quotation — covering die development, PA66 strip specification, unit pricing, and lead time.
4. Approve a sample — we extrude the aluminium halves, crimp the PA66 strip, apply the finish, and ship sample sections for your evaluation.
5. Full production — consistent quality with complete documentation, delivered to your schedule.

⚠️ Important Note: All profile images and dimensional drawings on this page are for reference only. Each bridge-cut profile is custom-engineered — final dimensions, PA66 strip specifications, Uf values, and surface finishes will be confirmed based on your approved production drawings and thermal simulations. Please contact our engineering team to discuss your specific project requirements before placing an order.
