Wood Grain Finish Aluminum Extrusion Profile
Customized Wood grain finish aluminum extrusion profile
Brand:
ANHUI SHENGXINItem NO.:
SX-WM464Payment:
T/T, or L/C at sightMOQ:
1Product Origin:
Anhui ChinaColor:
Customized ColorShipping Port:
Shanghai/Ningbo/Wuhu PortLead Time:

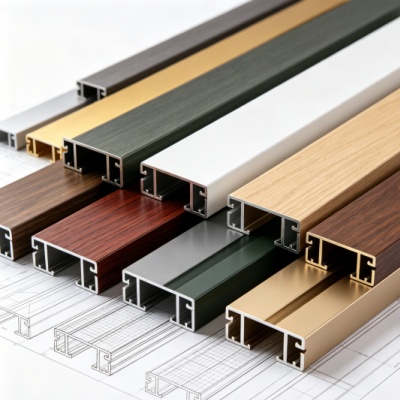

25 - 30 DaysArchitectural wood grain aluminum profiles are purpose-engineered for the building envelope — façades, curtain walls, sunshades, soffits, and cladding systems where aesthetic warmth must coexist with structural integrity and decades of weather exposure. Unlike interior-grade decorative trims, these profiles are specified to meet rigorous architectural coating standards, including AAMA 2604 and AAMA 2605, and are designed to integrate with curtain wall mullions, pressure plates, and cover caps commonly used in commercial construction.
At the core of our architectural wood grain system is a PVDF wood grain coating applied over a chromate-free pretreatment and high-durability primer. This multi-layer system locks in the wood pattern while providing exceptional resistance to UV degradation, salt spray, and industrial pollutants — critical for high-rise and coastal projects. For projects where budget and exposure permit, our 3D wood grain sublimation on architectural-grade powder coat offers a textured, tactile wood surface suitable for semi-exterior and sheltered applications such as entrance canopies, column cladding, and balcony soffits.
Every profile is extruded from 6063-T5 or 6061-T6 architectural-grade aluminum, then fabricated to project-specific lengths, mitered corners, and mounting hole patterns. We supply as individual profiles, pre-assembled panels, or unitized façade components — whatever your installation sequence demands. As a single-source manufacturer with 29 years of extrusion and finishing experience, Shengxin delivers architectural wood grain profiles that simplify specification, procurement, and site logistics for contractors and façade engineers worldwide.
| Standard | Scope | Shengxin Compliance |
|---|---|---|
| AAMA 2605 | Superior performance organic coatings | PVDF wood grain system certified |
| AAMA 2604 | High performance organic coatings | 3D wood grain + powder base certified |
| Qualanod | Quality label for anodized aluminum | Applicable for anodized base pretreatment |
| EN 755 / EN 12020 | Aluminum extrusion dimensional & tolerances | Full compliance across all profiles |
| ASTM E84 | Surface burning characteristics | Aluminum substrate Class A rated |
| Alloy & Temper | Al 6063-T5 / 6061-T6 (architectural grade) |
| Coating System | PVDF (70% Kynar® resin) or 3D sublimation on powder base |
| Finish Warranty | Up to 20 years for PVDF (exterior architectural) |
| Max Profile Width | 550 mm extrusion; wider panels via assembly |
| Profile Length | Up to 7 meters; optimized for container shipping |
| Thermal Break | Polyamide strip integration available (PA66 GF25) |
| Fire Rating | Non-combustible aluminum substrate (ASTM E84 Class A) |
| Parameter | Available Options |
|---|---|
| Profile Geometry | Custom die per architectural drawing; complex hollow and thermal-break profiles |
| Wood Pattern | Standard species + custom match from architect's material board |
| Gloss Level | Matte (5-15 GU), Satin (20-35 GU), Semi-gloss (40-60 GU) |
| Fabrication | Cut-to-length, mitered corners, drilled/tapped holes, assembly |
| Accessories | Matching gaskets, thermal breaks, mounting clips, fasteners |
| Packaging | Project-labeled bundles, protective interleaving, export pallets |
Specifying architectural finishes demands more than a beautiful sample — it requires manufacturing consistency across thousands of linear meters, project after project. Shengxin's vertically integrated platform, from billet casting to final wood grain finishing, provides the process control and traceability that architects, façade consultants, and general contractors rely on.
3D sublimation and PVDF wood grain lines operate side-by-side with our anodizing and powder coating facilities. Cross-process quality audits ensure finish consistency regardless of technology.
Our existing die library likely contains a profile geometry close to your specification, significantly reducing tooling lead time and cost for custom architectural shapes.
We label, bundle, and palletize by floor level, elevation, or zone — directly supporting your installation sequence and reducing on-site sorting labor.
From Middle Eastern high-rises to European commercial parks, our architectural profiles are proven in diverse climates. We understand regional building codes and documentation requirements.
End-to-End Architectural Support: $120 million total assets. 100,000-ton annual capacity. 5,000-ton professional warehouse. 5 independent container loading platforms. We provide material samples, mock-up panels, and full compliance documentation — including AAMA test reports and mill certificates — for every project.
A: Yes. Our PVDF wood grain system meets AAMA 2605, the highest architectural coating standard, and is specified on projects up to 40+ stories. We provide wind load test data, thermal movement calculations, and full submittal packages for consultant review.
A: Yes. Architects often need to coordinate aluminum profiles with timber doors, composite decking, or interior wood paneling. Send us your material board references, and we will formulate a matching wood grain film or PVDF coating, with A4 approval samples provided.
A: No. The wood grain finish is a surface treatment applied to standard architectural aluminum profiles. All structural calculations use the base aluminum alloy properties (6063-T5 or 6061-T6). Your façade engineer designs the support system as they would for any aluminum cladding system.
A: Standard submittal packages include: AAMA 2605 or 2604 test reports, coating thickness certificates, alloy mill certificates, profile dimensional reports, fire rating documentation (ASTM E84), and LEED/BREEAM contribution statements. Project-specific testing available upon request.
A: For curved architectural elements, we recommend bending the aluminum profile first, then applying the wood grain finish. Our team coordinates with bending specialists and manages the complete process, delivering finished curved profiles with uniform wood grain coverage.
