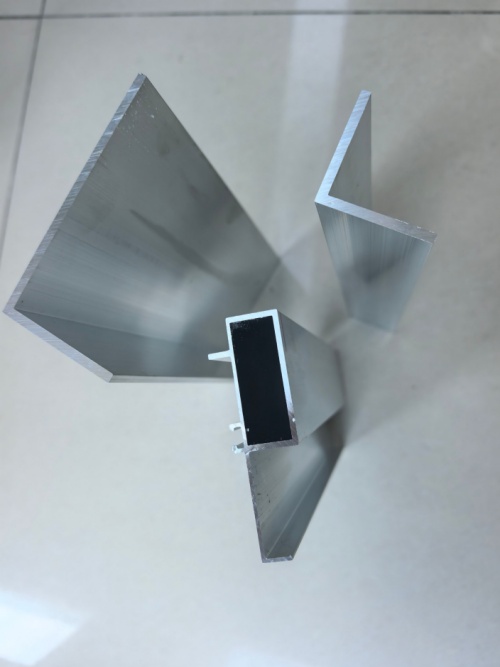

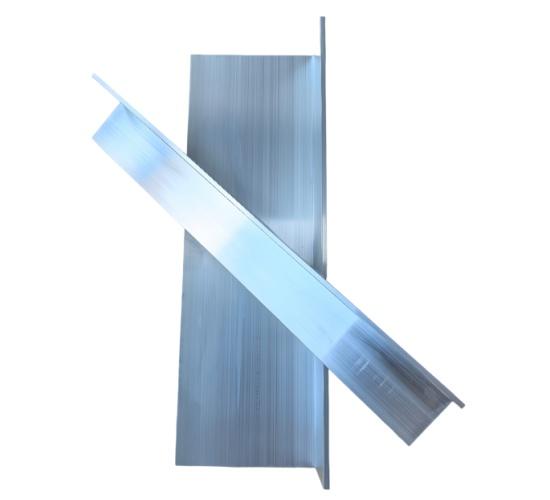

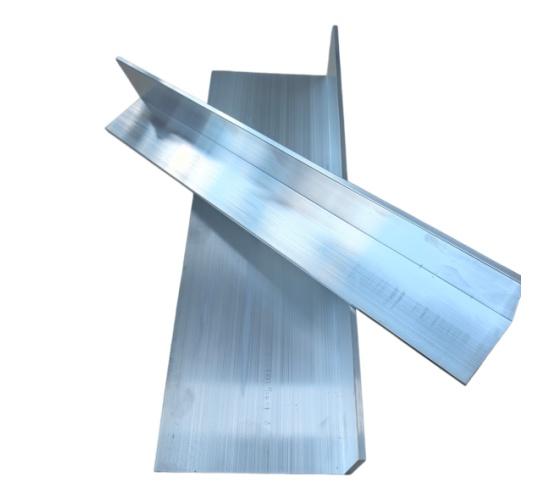

When standard structural angles are too bulky or imprecise, the Precision Aluminium Right Angle Strip delivers the exacting geometry and surface quality required by high-end engineering and manufacturing environments. Designed for applications where a sharp, accurate right angle is essential — such as optical alignment rails, electronic enclosure guides, measurement jigs, and miniature structural frames — these strips are extruded with enhanced attention to straightness, twist control, and angular precision.

Manufactured from 6061-T6 or 6063-T5 aluminium, each strip undergoes tension straightening after extrusion to minimise residual stress and ensure linearity. Post-extrusion processes may include precision saw cutting, surface grinding on critical faces, or vibratory finishing for a uniform matte appearance. The result is a right-angle profile that not only meets but often exceeds standard commercial angle tolerances, with angular deviation held well within ±0.5° and leg thickness consistency within ±0.05 mm on request.

Unlike general-purpose aluminium angle profiles, our precision range is frequently specified by research laboratories, automation integrators, and manufacturers of scientific instruments. These small to medium-sized profiles — commonly ranging from 5x5mm up to 50x50mm leg lengths — are available in both metric and imperial dimensions, and can be supplied as raw extrusions, precision-cut to length, or fully machined with holes, slots, and surface treatments to match your design.

Features & Benefits

• Enhanced angular accuracy: Standard profiles achieve ±0.5° or better on the 90° angle, significantly tighter than the typical ±1° of commercial angle extrusions. Tighter tolerances available on request.
• Superior straightness and minimal twist: Tension straightened and stress-relieved, these strips arrive flat and true — essential for building precision jigs, linear guides, and alignment fixtures.
• Fine surface finish: Mill finish is smoother than standard extrusion, with optional anodised, hard anodised, or vibratory finished surfaces for a clean, burr-free, professional appearance.
• Small cross-sections stocked: Leg lengths from as small as 5 mm with wall thicknesses from 1 mm — ideal for miniature and model-scale applications where larger structural angles are unusable.
• Cut-to-length and machining services: We deliver ready-to-use strips, precision-cut to exact millimetre lengths, with optional drilled holes, tapped threads, or custom end profiles per your engineering drawing.
• Material traceability: Full chemical and mechanical certificates are available for every batch, supporting quality assurance requirements in regulated industries.

Common Precision Angle Strip Sizes

These represent frequently requested small-scale dimensions. Custom sizes and tolerances are our speciality.

Larger or smaller dimensions are produced on demand. Contact us with your specific tolerance and length requirements.

Technical Specifications

Applications Requiring Precision Right Angle Strips

• Optical & laser alignment rails: The sharp 90° edge and flat surfaces serve as reference datums for aligning optics, lasers, and sensors in laboratory and industrial inspection systems.
• Printed circuit board (PCB) mounting and guides: Thin, lightweight aluminium angles function as PCB card guides, mounting rails, and edge protectors within electronic enclosures — often hard anodised for electrical insulation.
• Precision jigs and fixtures: Machinists and toolmakers use our precision angles as stops, fences, and alignment edges in CNC fixtures, welding jigs, and assembly tooling where repeatable accuracy is critical.
• Automation and linear motion: Small right angle strips serve as carriage guides or sensor mounting rails in linear motion systems, robotics, and automated test equipment.
• Scale modelling and prototyping: Hobbyists and R&D labs rely on precision aluminium angles for building accurate frameworks, chassis, and structural elements in prototypes and architectural models.
• Heat sinks and thermal management: The L-shape can double as a small heat-dissipating element when fixed to a hot component — 6061 aluminium’s thermal conductivity makes it a functional and space-efficient choice.

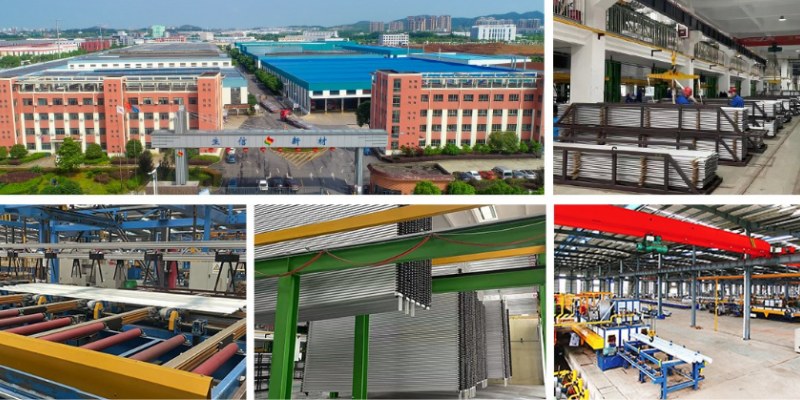

Customisation & Secondary Services

Why Shengxin for Precision Angle Strips?

Precision engineering demands more than generic extrusions — it requires process control at every stage. Shengxin’s 29-year expertise in aluminium extrusion is underpinned by advanced die design, in-house tension straightening equipment, and a fully equipped CNC machining department. We understand that a 0.1 mm deviation on a small right angle strip can render it useless for a scientific instrument or an automated test fixture.

From Prototype to Volume: We work with R&D teams on one-off prototypes and seamlessly transition to full production — all on the same extrusion lines. 500,000+ dies in stock often reduce lead times for custom precision profiles. Export-ready packaging from 5 container loading platforms to 97 countries.
