When a standard equal leg angle cannot meet the geometry of your assembly, the Unequal Leg Aluminium Angle Extrusion provides the solution. With one leg longer than the other, this asymmetric L-profile allows greater design freedom — the longer leg can serve as a robust mounting flange, while the shorter leg provides a stiffening rib or a secondary attachment surface. This simple change eliminates the need for welded-on extensions or awkward shimming in many structural and architectural applications.

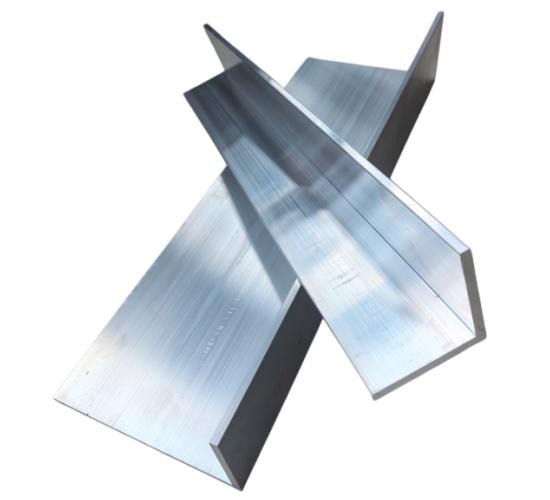

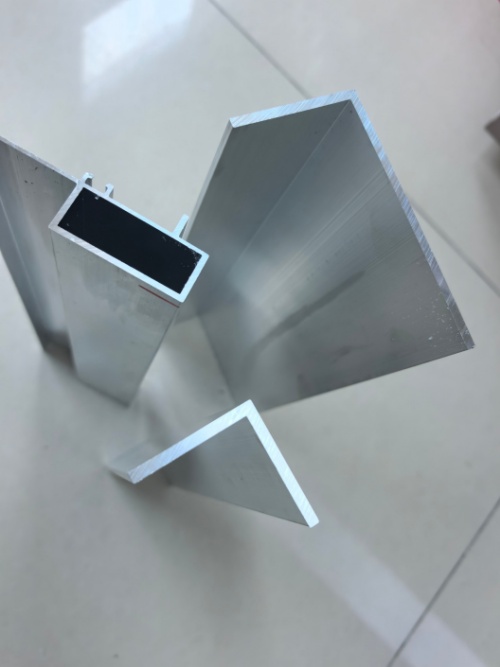

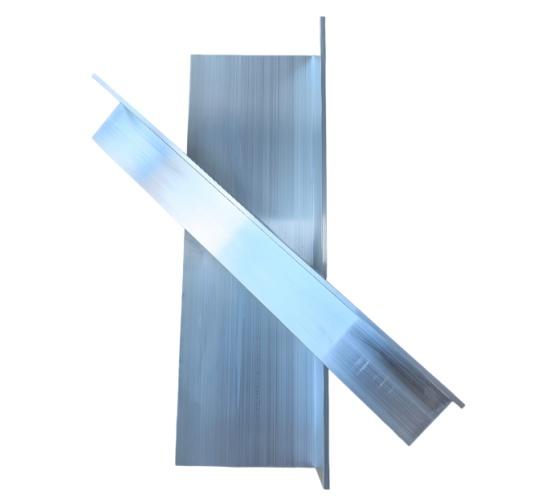

Unequal Leg Aluminium Angle Extrusion

Extruded from high-quality 6063-T5 or 6061-T6 aluminum, our unequal leg angles retain all the advantages of aluminum: light weight, corrosion resistance, and ease of fabrication. The extrusion process delivers consistent leg thickness and a sharp, precise corner radius, ensuring a reliable 90° angle regardless of the leg length difference. Common off-the-shelf combinations range from a slight 20x15mm asymmetry to significant 100x50mm offsets, and everything in between can be custom-extruded to your exact specifications.

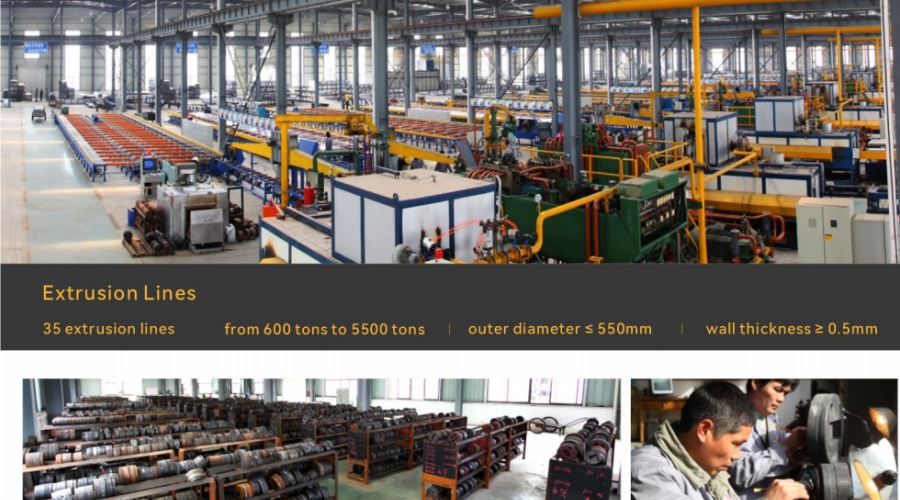

Shengxin holds an extensive die library, which often includes existing unequal leg combinations that match your requirements without new tooling costs. When a custom die is necessary, our in-house tooling team and 35 extrusion lines — from 600 to 5500 tons — ensure rapid prototyping and seamless scaling to volume production. Whether you need a few meters for a prototype or thousands of meters for a commercial contract, our process is built for flexibility.

Features & Benefits

Asymmetric leg lengths: The longer leg provides increased bearing surface, while the shorter leg offers a compact stiffener — ideal for framing where one side is visible and the other is hidden.
Design flexibility without welding: Eliminate welded bracket assemblies by integrating the desired leg offset directly into the extrusion profile.
Weight savings: Use the exact leg lengths your design requires; avoid carrying excess material on the short leg, which reduces weight and cost compared to an over-specified equal angle.
Excellent structural integrity: The 90° bend is homogeneous with the parent material, avoiding the stress concentrations found in bent or welded angles.
Surface ready for any environment: Available in mill finish, anodized, or powder coated — easily matching surrounding aluminium extrusions in your project.
Cost-effective customisation: Our vast die library often covers popular unequal leg combinations, saving you new die costs and shortening delivery times.

Common Unequal Leg Combinations (for Reference)

These are typical size pairings we regularly produce. Any leg length and thickness combination can be custom-extruded.

Leg A (long) × Leg B (short)	Thickness Range	Typical Alloy	Common Application
20 x 15 mm	1.5 – 3.0 mm	6063-T5	Trim, light-duty brackets
30 x 20 mm	2.0 – 5.0 mm	6063-T5	Furniture connectors, edge protection
50 x 30 mm	3.0 – 6.0 mm	6063-T5 / 6061-T6	Support brackets, machine frames
75 x 50 mm	4.0 – 8.0 mm	6061-T6	Solar panel supports, structural connectors
100 x 50 mm	5.0 – 10.0 mm	6061-T6	Trailer framing, heavy-duty brackets

Need a specific leg length ratio? Provide your drawing, and we will extrude the exact profile. No surcharge for standard tolerance adjustments.

Technical Specifications

Profile Type	Unequal Leg Angle (Asymmetric L-Profile)
Material Options	6063-T5, 6061-T6, 6005A, 6082 (others available)
Leg Length Range	10 mm up to 300 mm per leg; any combination
Wall Thickness	1.0 mm – 15.0 mm (per design requirement)
Angular Tolerance	±1° (standard)
Surface Finish	Mill finish, anodized (clear/black/colors), powder coated (RAL)
Length	Standard 6m bars; cut-to-length, drilling, and tapping available
Compliance	EN 755, EN 12020, GB5237, JIS H4100

Where Unequal Leg Angles Outperform Equal Angles

Flanged connections with limited space: The short leg slides behind a panel or channel while the long leg provides a wide mounting face — impossible with equal legs without overhang.
Offset brackets and supports: Used in HVAC mounting, solar panel rails, and pipe supports where the fixing surface and the load-bearing surface are at different planes.
Architectural reveal and shadow gap details: An unequal angle can create a neat, stepped shadow line between cladding panels, where the visible leg is narrow and the concealed leg is wide for fixing.
Vehicle and trailer body frames: The longer leg acts as a structural member, while the shorter leg serves as a flange for attaching side panels or floorboards — common in commercial vehicle bodies.
Reinforcement for existing structures: When retrofitting, an unequal angle can be designed with the long leg matching the existing beam width and the short leg wrapping around a corner for added stiffness.

Customisation Options

Parameter	Options Available
Leg Lengths	Any combination within extrusion capability (≤550mm each)
Alloy & Temper	6063, 6061, 6005A, 6082 — T5 or T6 as specified
Surface Finish	Anodized, powder coated, PVDF, mill
Fabrication	Cutting, mitering, drilling, tapping, CNC machining
Packaging	Protective wrapping, custom palletizing, labelling per project

Why Shengxin for Unequal Leg Aluminium Angles?

Unequal leg angles often represent a custom design decision, not a standard pick-from-catalogue choice. Shengxin’s vertical integration — from die design and extrusion to finishing and fabrication — makes us the ideal partner for these tailored profiles. We do not simply sell stock lengths; we engineer the complete solution from your drawing.

Custom Die Service

With 500,000+ dies in storage, many asymmetric combinations already exist. If not, our in-house die shop delivers a new custom die typically within 3-4 weeks.

Seamless Prototype to Production

Start with a few hundred kilos for prototype validation, then scale to multi-ton production on the same extrusion lines — no process change, no requalification.

In-House Finishing & Fabrication

Anodizing, powder coating, and CNC machining all under one roof. Your unequal angles arrive at the job site cut, drilled, and finished — ready for immediate assembly.

Global Export Expertise

Serving 97 countries with $120 million in assets, a 5,000-ton warehouse, and 5 independent loading bays. Full compliance documentation and export packaging included.

Quality Assurance: Every batch is checked for dimensional accuracy, alloy composition, and surface quality. Mill certificates and test reports are provided standard with all orders.

Unequal Leg Aluminium Angle FAQ

Q: What is the advantage of an unequal leg angle over an equal leg angle?

A: It saves material and weight by providing exactly the flange width needed on each side, rather than making both sides the larger dimension. It also solves connection problems where one fixing surface is wider than the other, without resorting to welded assemblies. For standard symmetric requirements, see our equal leg aluminium angle profiles.

Q: Can I choose any leg length ratio, or are there standard combinations?

A: Any ratio is possible within our extrusion envelope (max profile width 550mm). While we have many common combinations in our die library, a custom ratio is simply a matter of creating a new die — which we do routinely. There is no penalty for non-standard dimensions.

Q: Can unequal leg angles be curved or bent after extrusion?

A: Yes. Bending is typically performed before surface finishing. We coordinate with specialist benders and manage the complete process, supplying finished curved unequal angles with consistent coating coverage.

Q: What is the minimum order quantity for a custom unequal leg angle?

A: For a new custom die, we typically require a minimum production run of 300-500 kg. If the die already exists in our library, smaller trial quantities are welcome. Contact our sales team with your drawing for a specific MOQ quotation.

Q: Can you supply unequal angles with different alloys for each leg?

A: No. An extrusion is a single piece of aluminum; the entire profile is made from one alloy. However, we can suggest the best single alloy for your overall requirements, or discuss a welded assembly if truly different materials are needed.
