Trickle Vents in Windows – Integrated uPVC Slot Ventilators for Aluminium & uPVC Frames | Shengxin

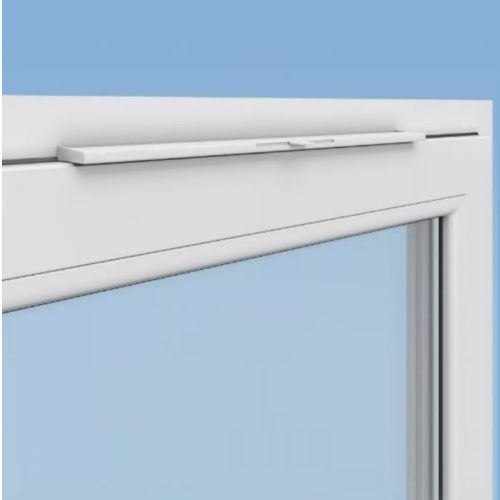

When a building's ventilation strategy calls for background airflow, trickle vents in windows are the simplest and most elegant solution. Instead of adding visible external grilles or relying on occupants to open windows in cold weather, these small uPVC ventilators are recessed into a precisely routed slot in the window frame head, becoming a quiet, almost invisible part of the window. Once installed, they provide a continuous supply of fresh air that reduces condensation, removes indoor pollutants, and helps the building meet its ventilation requirements — all without compromising security or thermal performance.

The vent itself is manufactured from UV-stabilised, impact-resistant uPVC, chosen for its durability, colour stability, and complete freedom from corrosion. A manually adjustable slider gives the room occupant full control over the airflow, from a gentle background trickle to a positive closed position during extreme weather. An integrated insect mesh stops bugs from entering, while a self-draining rain baffle ensures that even driving rain does not penetrate the window. The vent is designed to be fitted during window fabrication, when the frame section can be accurately machined, but it can also be retrofitted into existing windows by a skilled installer.

Shengxin, a specialist in extruded aluminium window profiles with 29 years of manufacturing history, understands that the details make the difference. We stock these uPVC trickle vents in the most commonly requested lengths and colours, so they can be ordered alongside your aluminium frame profiles and shipped together. This integrated approach saves you time, simplifies logistics, and gives you a single point of contact for the complete window component package.

Features & Benefits

• Fits into a standard machined slot: The vent is installed by routing a 12mm or 14mm slot into the aluminium or uPVC frame head — a standard operation on most window machining centres. Once snapped into place, it sits almost flush with the profile surface, maintaining the clean lines of the window design.
• Stays with the window for life: Because the vent becomes part of the window structure, it requires no separate fixing brackets or surface-mounted housings. It does not interfere with blinds, curtains, or secondary glazing, and it cannot be accidentally dislodged.
• Adjustable ventilation without draughts: The slider lets the occupant choose between a fully open, partially open, or fully closed position. When open, the incoming air is directed upwards through a baffled canopy, preventing the sensation of a cold draught at body level.
• Weatherproof and insect-proof: An integrated fine mesh prevents insects, leaves, and airborne debris from entering, while the rain baffle and drainage channels ensure that any water entering the external grille is expelled back to the outside.
• Meets ventilation requirements out of the box: With tested equivalent areas of 2500, 3500, or 5000 mm² depending on the vent length, a correctly specified trickle vent helps the window assembly comply with UK Approved Document F, EN 13141-1, and similar international ventilation standards.
• Discreet colour-matched finish: Available in white, brown, and beige to complement standard aluminium frame finishes. Custom RAL colour matching is available for volume projects, ensuring the vent blends invisibly into the frame.

Installation Parameters & Slot Dimensions

Achieving the correct fit and airflow depends on accurate slot machining. The table below outlines the key installation parameters for each standard vent length.

Slot length allows for a 2–3 mm clearance at each end of the vent body for thermal expansion. Ensure the slot is centred within the frame head and does not intersect with hardware screw ports or drainage channels.

Technical Specifications

Where Trickle Vents in Windows Are Used

• New-build homes and apartments: As airtightness standards rise with each update to building regulations, background ventilation is no longer optional. Trickle vents integrated into the window frame provide a reliable, low-maintenance solution that satisfies building control requirements without detracting from the window's appearance.
• Window replacement and refurbishment: When single-glazed or older double-glazed windows are replaced with modern, high-performance units, the building's natural infiltration drops significantly. Adding trickle vents during fabrication restores the ventilation balance and helps prevent condensation issues that might otherwise appear after the upgrade.
• Social housing and rental properties: For housing associations and landlords, trickle vents offer a passive ventilation solution that requires no occupant action beyond an occasional slider adjustment — reducing the risk of mould and damp complaints that can arise from inadequate ventilation in airtight homes.
• Schools and public buildings: Classrooms, offices, and community spaces with large window areas benefit from the steady, silent airflow that trickle vents provide, maintaining a healthy learning and working environment even when windows are kept closed for security or noise control.
• Coastal and exposed locations: In areas where opening windows regularly is impractical due to wind, salt spray, or noise, integrated trickle vents provide the necessary fresh air while the window remains securely closed and weathertight.

Customisation & Supply Options

Why Source Your Trickle Vents from Shengxin?

A trickle vent is a small component, but its performance has a big impact on the comfort and compliance of the finished window. Shengxin treats this accessory with the same attention to quality and supply reliability that we apply to our extruded aluminium window profiles. With 29 years in the fenestration industry, we understand the production pressures fabricators face, and we are structured to support you — from sample requests to full container loads.

Details that deliver confidence: 5 container loading platforms ensure your order is dispatched on schedule. Our technical team is available to advise on vent selection, slot dimensions, and equivalent area calculations for your specific window designs.

Trickle Vents in Windows FAQ

Custom Trickle Vent Solutions

If your window system requires a non-standard vent length, a specific RAL colour to match a unique frame finish, or a different slot width, Shengxin can arrange custom-manufactured trickle vents through our specialist uPVC extrusion partners — delivered with the same reliability and documentation as our standard range.

How It Works:

1. Share your specification — vent length, slot width, RAL colour, and estimated annual volume.
2. We coordinate with our uPVC manufacturing partner — a custom extrusion is set up, and pre-production samples are produced.
3. Receive a quotation — covering unit price, any one-off tooling costs, and delivery lead time.
4. Approve the pre-production sample — we ship physical vent samples for your fit, colour, and performance evaluation.
5. Full production & dispatch — vents are manufactured, packed, and delivered on your schedule, with complete test and compliance documentation.

⚠️ Important Note: All vent images and dimensional drawings on this page are for reference only. Final vent dimensions, slot width, colour, and equivalent area will be confirmed in your order specification and pre-production sample. Please contact our team to discuss your specific project requirements before placing a custom order.
