Trickle Air Vents for Windows – uPVC Slot Ventilators for Aluminium & uPVC Frames | Shengxin

Trickle air vents for windows are small but vital components that allow a constant, gentle stream of outside air to enter a room, even when the window is closed and locked. As modern buildings become more airtight to save energy, these vents provide the essential background ventilation needed to control humidity, remove indoor pollutants, and maintain a healthy living environment. Our uPVC trickle vents are designed to fit neatly into a routed slot in the window frame or sash, sitting almost flush with the profile and blending discreetly into the overall window design.

Each vent is extruded from UV-stabilised, impact-resistant uPVC that maintains its colour and structural integrity for decades. The built-in slider lets the occupant adjust airflow from fully open to fully closed, while an insect mesh and a rain baffle prevent bugs and water from entering the home. The vent is compatible with both aluminium and uPVC window frames, making it an ideal accessory whether you are fabricating high-performance thermal break aluminium windows or standard residential units.

Shengxin, with 29 years of experience in aluminium extrusion and global fenestration supply, stocks these trickle vents as part of a comprehensive range of window accessories. By ordering vents together with your aluminium window profiles, you simplify procurement, reduce shipping costs, and gain a single point of contact for after-sales support. Every shipment includes the necessary installation hardware, end caps, and documentation to demonstrate compliance with EN 13141-1 and national building ventilation standards.

Features & Benefits

• Universal slot compatibility: Manufactured to fit 12mm or 14mm routed slots — the two most common cutters used across aluminium and uPVC window fabrication machinery. No special tooling changes are required to integrate these vents into your production line.
• Adjustable, draught-free airflow: A smooth-action slider allows the room occupant to set the desired ventilation level. The air enters through a baffled canopy that directs the flow upwards, preventing cold draughts at body level while still refreshing the room.
• Proven weather resistance: An integrated insect mesh and a self-draining rain baffle ensure that the vent performs reliably in all weather conditions, from driving rain to high winds, without letting water or debris into the window frame.
• Helps meet building ventilation requirements: With certified equivalent areas of 2500, 3500, or 5000 mm² depending on length, these vents provide the background ventilation rates specified in UK Approved Document F, EN 13141-1, and similar international codes.
• Low-maintenance, durable construction: The uPVC body is UV-stabilised and will not rust, corrode, or need painting. An occasional wipe of the external grille is the only maintenance required for the full life of the window.
• Quick snap-fit or secure screw-fix: Installers can choose a snap-fit for rapid assembly on the production line, or a screw-fix option for added security in high-traffic or accessible locations. All screws and end caps are colour-matched and supplied in the box.

Vent Selection & Building Regulation Compliance

Use this guide to select the correct vent length and quantity to meet typical background ventilation requirements. Equivalent areas are measured according to EN 13141-1.

Equivalent area values are approximate. For precise calculations, refer to the test certificate provided with each vent model. Vents can be combined to achieve higher total equivalent areas.

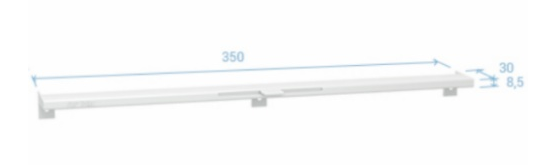

Technical Specifications

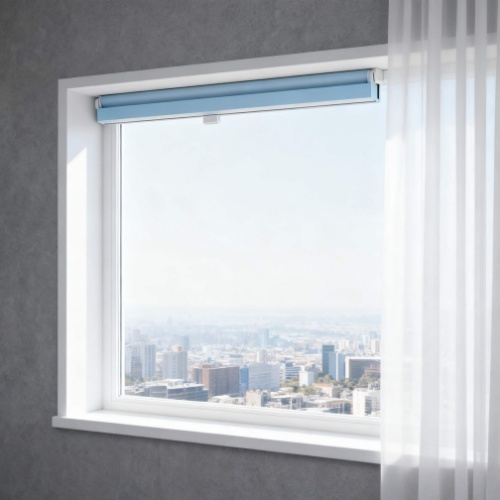

Recommended Installation Positions by Window Type

The vent should always be positioned at the highest practical point in the frame head to encourage natural convection — warm air rises, and fresh incoming air will mix before descending to occupant level.

Customisation & Supply Options

Why Buy Trickle Vents from Shengxin?

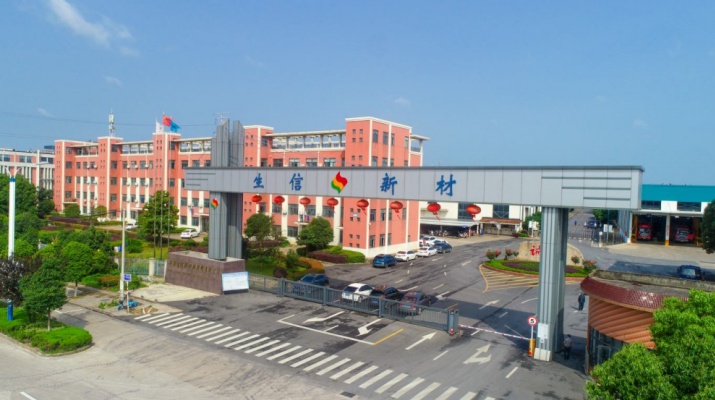

As a leading aluminium extruder with 29 years of experience, Shengxin supplies not only precision aluminium window and door profiles but also the essential accessories that make those windows compliant and comfortable. Our trickle air vents for windows are sourced from audited uPVC manufacturing partners and stocked in our 5,000-ton warehouse, ready to be added to your next profile order. One purchase order, one consolidated shipment, one reliable partner — that is the advantage of working with Shengxin.

Your fenestration partner, not just a profile supplier: $120 million in assets, 100,000-ton annual extrusion capacity, exports to 97 countries. 5 container loading platforms and a 5,000-ton warehouse ensure your orders leave on time.

Trickle Air Vents for Windows FAQ

Custom Trickle Vent Options

If your project requires a non-standard vent length, a custom RAL colour, or a specific slot width not covered by our standard range, Shengxin can arrange custom-manufactured trickle air vents through our specialist uPVC extrusion partners — delivered with the same reliability as our aluminium profiles.

How It Works:

1. Tell us your specification — vent length, slot width, RAL colour, and estimated annual usage.
2. We engage our uPVC partner — a custom extrusion run is set up, and pre-production samples are manufactured.
3. Receive a quotation — covering unit price, any one-off tooling costs, and lead time.
4. Approve the sample — we ship physical samples for your fit, colour, and airflow performance approval.
5. Full production & delivery — vents are manufactured, packed, and delivered on your schedule, with full documentation.

⚠️ Important Note: All vent images and dimensional drawings on this page are for reference only. Final dimensions, colour, and equivalent area will be confirmed in your order specification and pre-production sample. Please contact our team to discuss your project requirements before placing a custom order.
