Multi-Chamber Thermal Break Aluminium Profiles – Insulated Extrusions | Shengxin

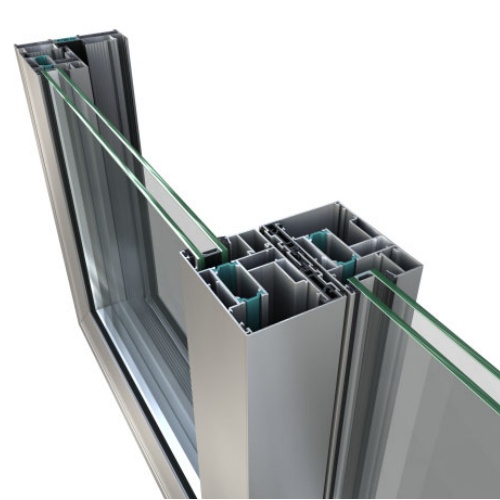

Multi-Chamber Thermal Break Aluminium Profiles attack heat loss on two fronts. The PA66 insulation strip interrupts conductive heat transfer through the metal, while multiple hollow chambers inside the profile suppress convection and radiation — the two other ways heat moves through a window frame. A single-chamber thermal break profile can stop conduction but still lose heat through internal air movement. The multi-chamber design eliminates that secondary path, pushing frame U-values down to levels that single-chamber profiles cannot reach.

The chamber walls do double duty: they create insulating air pockets and simultaneously stiffen the profile. This means a multi-chamber profile can achieve the same structural rigidity as a thicker single-chamber section while using less aluminium — a genuine weight and cost advantage. Our designs typically use three to five internal cavities, with the exact configuration tailored to the frame depth and thermal target. The result is a window or door frame that is lighter, stronger, and significantly more energy-efficient than conventional thermal break sections.

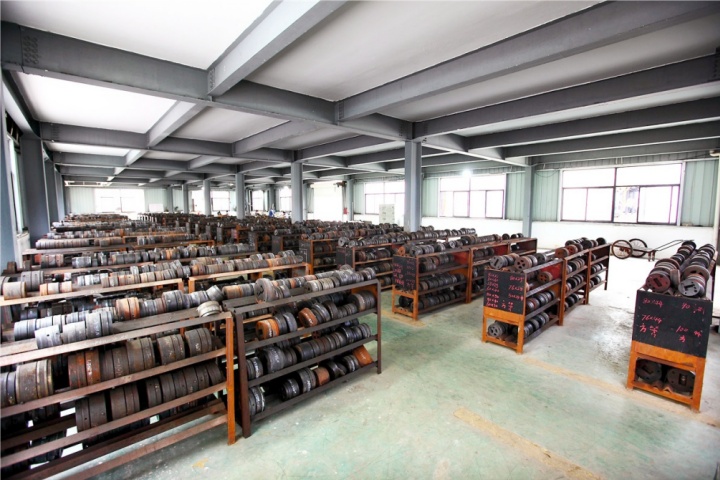

Shengxin has over 30 years of aluminium extrusion expertise and produces these profiles entirely in-house. The complex multi-chamber geometry requires precise die design — which is exactly what our in-house die shop specialises in. If your project needs a specific chamber configuration or U-value target, our custom extrusion service can develop the exact profile you need.

Features & Benefits

• Superior thermal performance: Multiple internal cavities suppress convection and radiation within the frame, delivering Uf values as low as 1.6 W/m²K when combined with a 40 mm PA66 strip.
• Lightweight structural efficiency: The chamber walls act as internal stiffeners, so the profile achieves high rigidity with less aluminium — reducing weight without sacrificing wind load capacity.
• Condensation resistance: The combination of thermal break and multi-chamber design keeps interior surfaces warmer, preventing the moisture accumulation that damages paintwork and indoor air quality.
• Acoustic dampening: The air cavities absorb and disrupt sound transmission through the frame, contributing to quieter interiors in urban and roadside locations.
• Precision die engineering: Our in-house die shop designs multi-chamber sections with uniform wall thickness and clean internal geometry, ensuring consistent thermal performance across the entire profile length.
• Customisable chamber configuration: The number and arrangement of chambers can be adjusted to balance thermal performance, structural requirements, and material weight for each specific application.

Chamber Configurations & Thermal Performance

Select the chamber count and PA66 strip width that matches your thermal target.

Chamber count and strip width are tailored to your frame depth and target U-value.

Technical Specifications

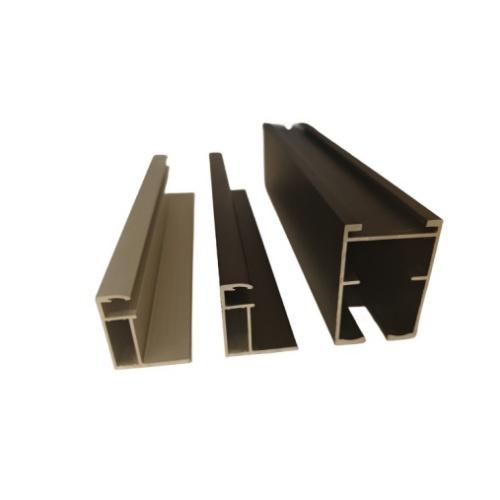

We also manufacture powder-coated custom-length cabinet door aluminum profile options for interior cabinetry, allowing a consistent finish between exterior windows and interior built-ins.

Applications of Multi-Chamber Thermal Break Aluminium Profiles

• Passive House and net-zero buildings: The combination of multi-chamber design and wide PA66 strips delivers the low U-values these projects demand, while the structural efficiency keeps frames light.
• Large window and door openings: The internal chamber walls provide extra rigidity, allowing wide sashes and tall doors without excessive deflection or the need for bulky reinforcement.
• Cold climate residential construction: In regions with severe winters, the superior insulation reduces condensation risk and keeps interior frame surfaces comfortable to touch.
• Acoustic-sensitive locations: The air cavities dampen sound transmission, making these profiles ideal for homes near roads, railways, or airports.
• Commercial and institutional buildings: Durable aluminium with excellent thermal performance meets the demanding specifications of public sector and commercial projects.

Customisation & Supply Options

Why Choose Shengxin for Multi-Chamber Profiles?

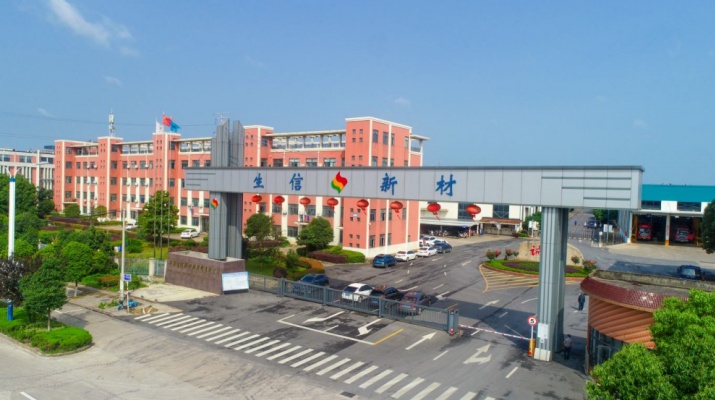

Multi-chamber extrusion is a precision engineering challenge. The internal cavity walls must be perfectly straight, uniformly thick, and cleanly formed — otherwise thermal performance and structural strength both suffer. Shengxin is an aluminium extrusion specialist with over 30 years of manufacturing experience and an in-house die shop that has produced thousands of complex multi-chamber profiles. We extrude, machine, and finish everything under one roof, giving you a single accountable partner for your most demanding window and door projects.

Related Energy Solutions: For facade-scale applications, see our curtain wall profile system. For standard thermal break sections, consider our thermal break window profiles. 5 container loading platforms ensure on-time dispatch.

Multi-Chamber Thermal Break Aluminium Profiles FAQ

Custom Multi-Chamber Thermal Break Profile Solutions

If your project requires a specific chamber configuration, a unique U-value target, or a bespoke profile geometry, Shengxin's custom extrusion service can design and produce multi-chamber thermal break profiles to your exact drawings, delivered with full thermal simulation documentation.

How It Works:

1. Send your drawing — 2D PDF/DWG or 3D STEP/IGES file showing the profile geometry and thermal requirements.
2. Our engineers review — we assess extrudability, chamber configuration, and suggest optimisations for thermal performance and strength.
3. Receive a quotation — including die cost, Uf simulation, unit price, and lead time.
4. Approve a sample — we extrude a trial section and send it for your approval.
5. Full production — consistent quality, delivered on schedule with full documentation.

⚠️ Important Note: All profile images and dimensional drawings on this page are for reference only. Final dimensions, chamber configuration, Uf values, and surface finishes will be confirmed based on your approved production drawings and thermal simulations. Please contact our engineering team to discuss your specific requirements before placing an order.

Please note: The production timelines discussed are typical estimates based on smooth design approvals and current scheduling. Actual lead times may be longer if design changes are required, multiple sample iterations are needed, or production capacity is temporarily at high demand. Your dedicated project engineer will provide updated timelines at each stage, and final delivery dates will be confirmed in your order confirmation.
