Wood Grain Finish Aluminum Extrusion Profile
Customized Wood grain finish aluminum extrusion profile
Brand:
ANHUI SHENGXINItem NO.:
SX-WM465Payment:
T/T, or L/C at sightProduct Origin:
Anhui ChinaColor:
Customized ColorShipping Port:
Shanghai/Ningbo/Wuhu PortLead Time:

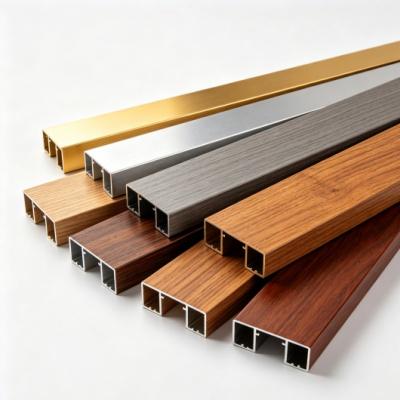

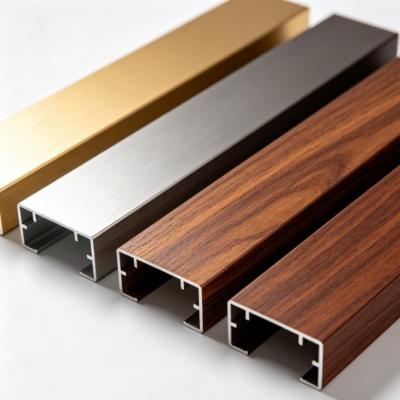

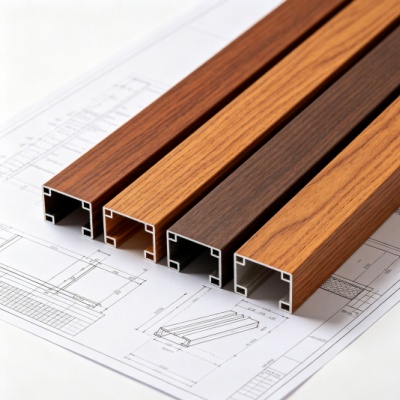

25 - 30 DaysWood grain aluminium extrusions deliver the authentic look and tactile feel of natural timber without the drawbacks of rotting, warping, or termite damage. Using advanced thermal sublimation and PVDF coating technologies, we transfer highly realistic wood patterns onto extruded aluminum profiles — creating products that are virtually indistinguishable from real wood at a fraction of the weight and with dramatically longer service life.
Our wood grain finishes are available in two premium systems. The 3D wood grain transfer process embeds the pattern into the powder-coated surface through vacuum heat transfer, producing rich depth and texture that replicates oak, walnut, teak, mahogany, and custom wood species. For exterior and high-UV applications, PVDF wood grain coatings provide industry-leading color retention and chalk resistance, making them ideal for façade cladding, sunshades, and outdoor furniture exposed to intense sunlight.
All profiles begin as high-quality 6000-series aluminum extrusions, manufactured in-house on our 35 extrusion lines. After precision cutting and any required fabrication, the profiles undergo a chromate-free pretreatment, base powder coating, and finally the wood grain transfer or PVDF application. The result is a durable, scratch-resistant surface that meets the aesthetic demands of architects and interior designers while fulfilling the structural requirements of modern construction. These decorative aluminum profiles are fully recyclable and contribute to sustainable building certifications.
| Feature | 3D Sublimation Wood Grain | PVDF Wood Grain Coating |
|---|---|---|
| Finish Depth | Deep, textured grain with tactile feel | Smooth, satin or matte visual only |
| UV Resistance | Good (interior & semi-exterior) | Excellent (exterior, 20+ year durability) |
| Ideal Application | Interior doors, partitions, furniture, ceilings | Façade cladding, sunshades, outdoor railings |
| Color & Pattern Library | Extensive standard wood patterns; custom film available | Custom formulation per project color target |
| Cost Consideration | Economical for interior volume projects | Higher initial cost, lowest lifecycle cost for exteriors |
Our technical team helps you select the right technology based on your project’s exposure, design language, and budget. Both finishes are produced in-house, ensuring consistent quality and lead time control.
| Base Material | Al 6063 / 6061 / 6005A (T5 or T6 temper) |
| Wood Grain Technology | 3D sublimation transfer / PVDF coating |
| Finish Standards | Qualanod, AAMA 2604 (3D), AAMA 2605 (PVDF) |
| Profile Width | Up to 550 mm (extrusion capability) |
| Length | Up to 7 meters; cut-to-length available |
| Wood Species Library | Oak, walnut, teak, mahogany, ash, cherry + custom |
| Recycled Content | 100% recyclable aluminum; LEED / BREEAM contributory |
| Parameter | Available Options |
|---|---|
| Profile Shape | Custom die design; 500,000+ existing molds to adapt from |
| Wood Pattern | Standard library or matched from your sample/photo |
| Finish Type | Matte, satin, or semi-gloss 3D grain; PVDF smooth wood effect |
| Color Matching | RAL, Pantone, or custom sample matching for base coat |
| Fabrication Services | Cutting, punching, drilling, mitering, and assembly |
| Packaging | Protective film wrapping, custom palletizing, labeled per project |

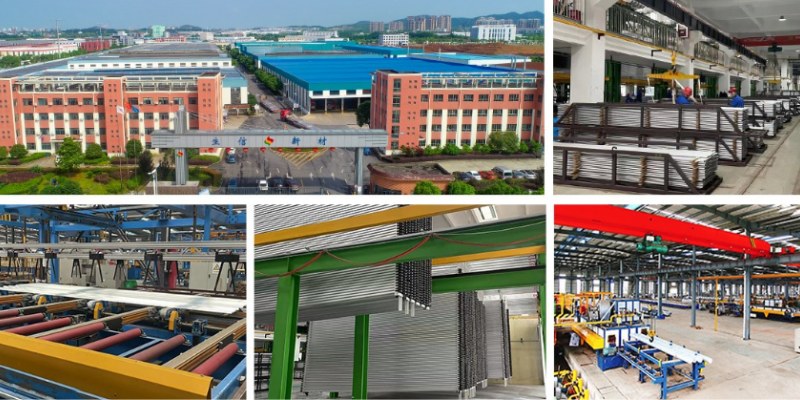

Shengxin brings 29 years of aluminum manufacturing expertise to every wood grain profile we produce. Our dedicated wood grain finishing campus houses multiple production lines under strict quality control, ensuring your project receives profiles with consistent color, grain alignment, and surface integrity — batch after batch.
Dedicated 3D sublimation and PVDF wood grain coating lines capable of processing profiles up to 7 meters — one of the largest wood grain finishing capacities in the region.
From billet to finished wood grain profile, every step occurs within Shengxin’s facility: extrusion, powder coating, and wood grain transfer. No subcontracting, no split responsibility.
Our vacuum heat transfer process achieves grain depths of 40-80 microns, creating a tactile wood feel. The pattern penetrates the powder coat, eliminating peeling issues common with film laminates.
Products exported to 97 countries across 6 continents. We understand international building codes and finishing standards, and provide full compliance documentation with every shipment.
Stocked & Ready: 5,000-ton warehouse holds commonly specified wood grain profiles and matching accessories. 5 container loading platforms ensure efficient export packing — custom protective wrapping, palletizing, and labeling to match your site logistics.
A: PVDF wood grain finishes are rated for 20+ years of exterior exposure with minimal color change (AAMA 2605). For semi-exterior or interior applications, our 3D sublimation finish provides excellent resistance to UV and humidity. We recommend the appropriate technology based on your project's sun exposure and climate.
A: Absolutely. Send us a physical sample, photo, or color reference, and our lab will formulate a matching wood grain film or PVDF coating. We provide A4-sized approval samples before proceeding to production.
A: Yes. The base aluminum profile can be engineered with the necessary wall thickness and internal reinforcement to meet structural requirements. The wood grain finish is applied post-extrusion and does not compromise the mechanical properties. Discuss load requirements with our engineering team.
A: For new profile dies, we can start with as little as 500 kg for trial orders. For standard profiles from our existing die library finished in wood grain, lower minimums may apply. We’re flexible and will work with your project phase.
A: The finish is hardened during the transfer or curing process, achieving good scratch resistance for normal handling and service. Cleaning is simple: mild soap and water with a soft cloth. Avoid abrasive cleaners. PVDF finishes are particularly easy to maintain and resist graffiti when specified with anti-graffiti clear coat.
