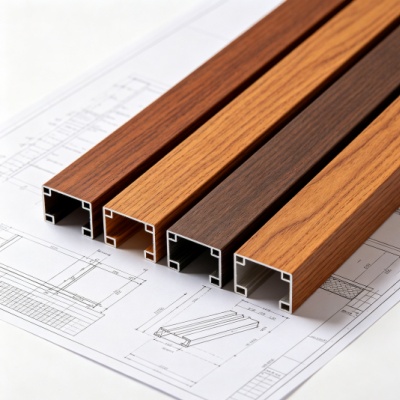

What Are Wood Grain Aluminium Extrusions?

Wood grain aluminium extrusions are formed by forcing heated aluminium billets (typically 6063 or 6061 alloys) through a precision-engineered die under high pressure. This process creates continuous profiles with a uniform grain structure and consistent mechanical properties. After extrusion, the profiles undergo a wood grain transfer or powder coating process to replicate the appearance of natural timber. Unlike standard profiles, extrusions offer unparalleled design flexibility—allowing for complex geometries, varying wall thicknesses, and integrated features like snap-fit joints or thermal breaks, all while maintaining superior structural integrity.

The Extrusion Advantage – Why Choose Custom Extrusions?

Choosing custom wood grain aluminium extrusions over standard profiles provides multiple engineering and economic benefits:

• Complex cross-sections – Our 35 extrusion lines (ranging from 600 to 5,500 tons) support outer diameters up to 550mm and wall thicknesses as low as 0.5mm, enabling intricate multi-void shapes that eliminate secondary assembly steps.
• Superior mechanical performance – The extrusion process aligns the metal grain structure, resulting in higher tensile strength and fatigue resistance compared to cast or machined parts.
• Cost-effective production – Once the die is developed, extrusion offers high-speed, continuous production with minimal material waste, making it ideal for both small-batch custom orders and large-scale mass production.
• Integrated functionalities – We can incorporate grooves, ribs, snap-fits, or slots directly into the extrusion design, reducing downstream machining and assembly time.

Advanced Extrusion & Wood Grain Finishing Process

At Shengxin, we ensure every step of the manufacturing chain meets the highest quality standards:

• Billet heating & extrusion – Aluminium billets are heated to 450-500°C and extruded through custom dies at controlled speeds to maintain optimal grain structure and surface quality.
• Quenching & stretching – Immediately after extrusion, profiles are quenched to lock in the T5 or T6 temper, then stretched to relieve internal stresses and achieve precise straightness.
• Wood grain transfer (sublimation) – For realistic wood textures, we apply heat transfer paper under vacuum and high temperature, allowing the wood pattern to permanently infuse into the coated surface.
• Powder coating with wood effect – Alternatively, we use electrostatic spraying with wood-effect pigments, cured to form a thick, weather-resistant layer, ideal for exterior applications.

Both finish options deliver a UV-resistant, scratch-resistant surface that maintains its color and texture for decades, even under harsh outdoor conditions.

Technical Specifications – Extrusion Capabilities

Custom Die Design & Mold Development

One of the greatest strengths of wood grain aluminium extrusions is the ability to create entirely custom shapes. At Shengxin, we offer comprehensive in-house die design and manufacturing services:

• Rapid prototyping – Our engineering team uses advanced CAD/CAM software to simulate extrusion flow and optimize die geometry before production, reducing trial runs and accelerating lead times.
• Extensive mold inventory – We maintain over 500,000 finished molds in stock, so many standard and semi-custom shapes are ready for immediate production without waiting for new tooling.
• Custom die development – For unique cross-sections, we design and produce exclusive dies within a short timeframe, ensuring your project stands out with bespoke profiles.
• Die maintenance & longevity – Our regular die maintenance ensures consistent dimensional stability across millions of extrusions, guaranteeing repeatable quality for long-run orders.

Structural & Architectural Applications

Thanks to their high strength-to-weight ratio and exceptional design freedom, our wood grain aluminium extrusions are extensively used across multiple industries:

• Curtain walls & building facades – Load-bearing extrusion systems with integrated thermal breaks and wood-finish aesthetics.
• Window & door framing systems – Multi-chamber extrusions that provide superior insulation, water drainage, and structural stability.
• Structural supports & columns – High-strength 6061 extrusions used in pergolas, carports, and heavy-duty architectural frameworks.
• Industrial automation & machinery – Custom extruded channels and rails with precision slots for conveyor systems and production lines.
• Decking & boardwalks – Interlocking extrusion designs with wood grain surfaces that resist moisture and heavy foot traffic.
• Solar panel mounting structures – Lightweight yet rigid extrusions optimized for wind load resistance and corrosion protection.

Our Manufacturing Strength – Built for Custom Extrusions

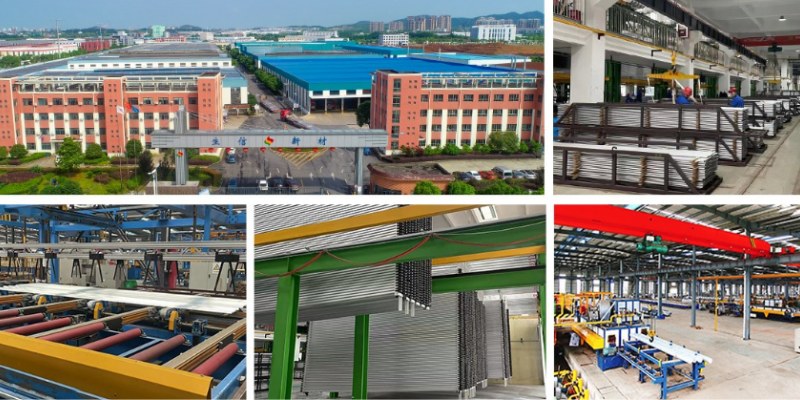

With 29 years of industry expertise, Shengxin stands as a global leader in aluminium extrusion manufacturing. We operate 35 extrusion lines (600 to 5,500 tons), delivering an annual production capacity of 100,000 tons. Our dedicated wood grain finishing department includes 4 transfer lines, alongside 3 anodizing lines, 3 powder coating lines (2 vertical, 1 horizontal), and 1 PVDF coating line – enabling full RAL customization, 3D wood grain, and PVDF wood effects.

We have partnered with over 10 global distributors and exported to 97 countries, covering South America, Europe, Central Asia, the Middle East, and Africa. Our fully equipped 5,000-ton warehouse, custom labeling and pallet packaging services, plus five independent container loading platforms, guarantee efficient logistics and on-time delivery. Every product strictly complies with GB5237, Qualanod BS3987, JIS H8601, EN755, and EN12020 international quality standards.

Why Choose Shengxin for Your Extrusion Projects?

We differentiate ourselves through engineering excellence and customer-centric service:

• End-to-end solutions – From billet casting and die design to extrusion, surface finishing, and CNC deep processing (cutting, milling, drilling) – we manage it all in-house.
• Precision deep processing – Advanced imported CNC equipment supports full-process operations, delivering finished parts ready for assembly.
• Flexible order quantities – We welcome both prototype orders and high-volume mass production with equal commitment to quality.
• Rapid response & technical support – Our engineering team provides real-time feedback on design feasibility, alloy selection, and cost optimization.

Customization Options – Tailored to Your Drawings

We understand that every extrusion project has unique requirements. Our customization services cover:

• Custom cross-sectional shapes – We develop exclusive dies based on your 2D/3D CAD files or physical samples.
• Alloy & temper selection – Choose from 6063, 6061, 6005, or specialized alloys for enhanced strength, corrosion resistance, or weldability.
• Wood grain patterns & colors – Match any wood species or RAL color code with our extensive library.
• Length, cutting, & machining – We cut to exact lengths, mill slots, drill holes, and perform deburring to your specifications.
• Packaging & logistics – Customized packaging for fragile surfaces, with protective film and tailored container loading plans.

Simply send us your technical drawings, and our team will provide a feasibility analysis, die development timeline, and competitive pricing within 24 hours.

Wood Grain Aluminium Extrusions FAQs

Q1: What is the maximum complexity achievable for custom aluminium extrusions?
Our 5,500-ton extrusion press can handle complex multi-void hollow sections, asymmetric shapes, and profiles with integrated functional grooves. With outer diameters up to 550mm and wall thicknesses as low as 0.5mm, we can produce highly intricate designs that meet strict architectural and industrial requirements.

Q2: How long does it take to develop a new extrusion die?
For custom dies, the development lead time typically ranges from 15 to 25 days, depending on the complexity of the cross-section. We also offer rapid prototyping services for urgent projects. Once the die is approved, mass production begins immediately.

Q3: Can you provide both standard and custom wood grain colors?
Yes. We support a full range of RAL colors and offer 3D wood grain, PVDF wood grain, and traditional heat transfer wood patterns. We can also match physical wood samples or Pantone references to achieve your exact visual requirement.

Q4: What quality inspections are performed on finished extrusions?
We conduct comprehensive dimensional checks (straightness, twist, wall thickness), mechanical tests (tensile strength, hardness), and surface quality inspections (color consistency, adhesion, scratch resistance). All tests follow EN755, GB5237, and JIS H8601 protocols.

Q5: Do you offer free samples for custom extrusions?
Yes, we provide sample sections for design verification and quality testing before full production. You can request samples of different wood grain patterns or alloy grades to ensure they match your project specifications.

Ready to Start Your Custom Extrusion Project?

Whether you need standard wood grain aluminium extrusions or fully bespoke shapes with complex cross-sections, Shengxin is your trusted manufacturing partner.

Get your custom solution in 4 simple steps:

1. Share your designs – Upload 2D/3D drawings or sketch your requirements.
2. Feasibility & cost analysis – Our engineers review the design and provide a tailored quotation within 24 hours.
3. Die development & sampling – We manufacture the die and produce initial samples for your approval.
4. Mass production & delivery – Full-scale production with strict quality control and global logistics support.

Contact us today to discuss your project, request a free sample, or get a comprehensive quote. We look forward to engineering excellence for your brand.
