Shengxin, a professional manufacturer of commercial and exterior aluminum window louvers with 29 years of industry experience, focuses on custom production based on client drawings. Made from 6063‑T5 / 6061‑T6 extruded aluminum, our louvers feature precision extrusion and CNC machining for consistent, reliable performance. As a factory-direct supplier, we provide competitive pricing, steady delivery, and full OEM support for both bulk and project orders. Exporting to 97 countries worldwide, we deliver dependable solutions for industrial buyers, including high-quality aluminum ventilation louver options. Reach out to us for a free quotation tailored to your commercial or project requirements.

exterior aluminum window louvers

Custom Aluminium Window Louvre - Product Drawing Description

Product Drawing Reference (Schematic Diagram) Disclaimer: This technical schematic demonstrates the structural principles, assembly techniques and angle adjustment functionality of custom aluminium window louvre systems. Detailed annotations cover standard frame profiles, assembly joints and drainage layouts for architectural louver window applications. Due to customized project requirements, including dimensional adjustments, profile wall thickness, blade pitch and coating finishes, each order features unique parameters. This reference drawing is applicable only for pre-construction discussion and on-site installation positioning. All production and acceptance standards must be based on final verified technical documents. The manufacturer reserves the right to implement technical optimization and design updates.

Key Features

Feature Type	Feature Details
Durability & Material Strength	Constructed from 6063‑T5 / 6061‑T6 high-quality extruded aluminum, our louvers undergo precision extrusion and CNC machining, resulting in a burr-free finish and precise dimensions (tolerance ±0.5mm). They offer strong corrosion resistance, wind load capacity (≥2.0 kPa), and a long service life, fully complying with international standards such as GB5237, Qualanod BS3987, JIS H8601, EN755, and EN12020.
Outdoor & Industrial Usage	Well-suited for industrial and waterproof project applications, our aluminum window louvers and aluminum ventilation louvers are ideal for commercial building facades, office ventilation systems, coastal windows, and industrial facilities. They deliver excellent salt spray resistance and waterproof performance, making them adaptable to harsh outdoor and marine conditions, especially for exterior aluminum window louver installations.
Custom Design Capability	Our louvers support adjustable angles (0°–180°), cut-to-size services, and custom-shaped slats (flat, curved, angled). With customizable blade widths (50mm / 75mm / 100mm) and thicknesses (1.2mm / 1.5mm / 2.0mm), they seamlessly fit various window frames and architectural designs for commercial and project use.
OEM Support	We provide comprehensive OEM services for aluminum window louvers, including custom and commercial OEM options. Our in-house mold development, surface treatment customization, and precision deep processing capabilities are fully tailored to meet client requirements.
Application Relevance	Ideal for commercial and industrial projects, our louvers combine functionality with aesthetic appeal. Featuring low maintenance (no rust or decay), they reduce on-site labor and long-term costs, making them widely applicable in residential, commercial, and coastal settings.

Specifications Table

Specification Item	Specification Details
Material	Material: 6063‑T5 / 6061‑T6 extruded aluminum, processed via precision extrusion and CNC machining, with burr-free end treatment and a dimensional tolerance of ±0.5mm. Multiple alloy options are available to suit different project demands.
Size	Size: Fully customizable, including blade widths (50mm / 75mm / 100mm, customizable), thicknesses (1.2mm / 1.5mm / 2.0mm), cut-to-size options, and flat/curved/angled slats. Themaximum single fan size is W≤3000mm × H≤1500mm (splicable), based on client drawings.
Surface Treatment	Surface Treatment: Available options include powder coating (RAL full color, 10–15 years weather resistance), anodizing (silver gray, frosted, antique, corrosion-resistant), PVDF coating (20 years no fading, ideal for coastal areas), and wood grain transfer (3D/PVDF wood grain, wood-like texture). All treatments meet international standards.
Color	Color: Full RAL color customization is available, along with 3D/PVDF wood grain finishes. All colors are UV and fade resistant, suitable for long-term outdoor use.
MOQ	MOQ: Flexible minimum order quantity with a 50㎡ minimum for small batches, negotiable based on order specifics. Small trial orders are available for quality testing purposes.
Application	Application: Suitable for commercial building facades, exterior aluminum window louver installation, office ventilation, coastal windows, residential windows, industrial facilities, and public facilities. It fits project and wholesale orders, and is compatible with embedded, external hanging, and curtain wall integrated installation methods, including aluminum ventilation louver configurations.

Applications

Application Type	Specific Uses & Details
Commercial Buildings	Commercial Buildings: Used for facade ventilation, sunshade, and decoration in office towers, shopping malls, and public buildings, effectively meeting the needs of commercial scenarios.
Industrial Facilities	Industrial Facilities: Provide ventilation and protection for factories, warehouses, and industrial plants, making them suitable for project industrial aluminum window louver orders.
Coastal Properties	Coastal Properties: Offer waterproof and corrosion-resistant solutions for coastal buildings. PVDF coating enhances salt spray resistance, fully meeting project waterproof requirements.
Residential Buildings	Residential Buildings: Used for window ventilation, light control, and exterior decoration, and are compatible with commercial aluminum window louver customization.
Infrastructure Projects	Infrastructure Projects: Suitable for public facilities, transportation hubs, and commercial complexes, supporting bulk and project-based procurement.

Factory Advantages

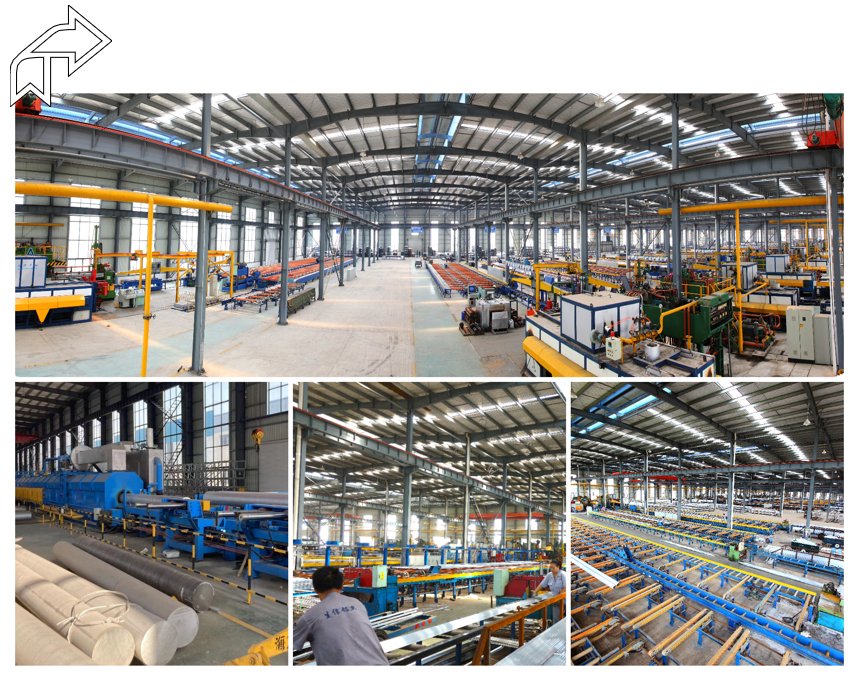

Shengxin is a high-end manufacturer of industrial aluminum profiles and commercial aluminum window louvers, with 29 years of industry experience, total assets of $120 million, and an annual production capacity of 100,000 tons (8,000 tons per month). As a factory-direct supplier, we offer competitive wholesale pricing and stable mass production, with products exported to 97 countries globally. Equipped with 35 extrusion lines (600-5500 tons) and 500,000 in-stock molds, we support in-house mold development for bulk and project orders. Our surface treatment workshops (3 anodizing lines, 3 powder coating lines, 1 PVDF line, 4 wood grain transfer lines) and imported CNC equipment ensure precision processing. All products adhere to international standards (GB5237, Qualanod BS3987, etc.). We provide comprehensive OEM services (oem aluminium window louvre, oem custom options), along with customized labeling, packaging, and efficient delivery through our 5,000-ton warehouse and 5 container loading platforms. Full product inspection is carried out, with quality certificates available upon request.

Shengxin

Price & MOQ

We offer competitive bulk pricing for commercial aluminum window louvers, ranging from $80–$180/㎡ (depending on material, thickness, surface treatment, and order quantity). Pricing is determined based on client drawings and specific requirements. Our MOQ is flexible: 50㎡ for small batches, and negotiable for bulk or project orders. We commit to providing a customized quotationwithin 24 hours of receiving your drawings or requirements. Preferential pricing and flexible payment terms are available for bulk orders, and our factory-direct supply model helps wholesale clients save costs.

Call to Action (Inquiry & Support)

Get Quote: Submit your drawings or requirements (English versions accepted) to receive a customized quotation; we will respond within 24 hours.
Contact Supplier: Consult our professional English-speaking team for one-on-one support via WeChat, WhatsApp, or Email.
Request Sample: Order a sample to test quality prior to bulk or project purchases (sample fee is negotiable and can be deducted from formal orders).
Get Price: Inquire about the latest bulk and wholesale pricing for our products and related OEM options.

Frequently Asked Questions (FAQ)

Q: Does your commercial aluminum window louver meet international quality standards?
A: Yes, all our products strictly adhere to GB5237, Qualanod BS3987, JIS H8601, EN755, and EN12020 standards; relevant certification and inspection reports can be provided upon request.
Q: What is the lead time for orders?
A: The lead time is 7-10 days for small trial orders (≥50㎡) and 25-45 days for bulk or project orders, with real-time production progress updates provided throughout.
Q: Is the sample fee refundable?
A: Yes, the sample fee is negotiable and can be fully deducted from the total payment once your bulk order meets the agreed quantity.
Q: Do you provide OEM services for commercial aluminum window louver orders?
A: Yes, we offer comprehensive OEM services, including mold development, surface treatment, OEM branding, and custom packaging, all tailored to your project and wholesale needs.
Q: What payment terms do you accept for overseas wholesale orders?
A: We acceptT/T and L/C at sight, and support major international currencies for your convenience.
Q: Can you provide customs clearance documents for exported products?
A: Yes, we supply a full set of export documents (invoice, packing list, certificate of origin, etc.) to ensure smooth customs clearance in your country.
