Aluminium Facade Panel – Architectural Cladding Solutions | Shengxin

Aluminium Facade Panels are the modern building envelope solution that combines design freedom with long-term durability. As a lightweight, non-combustible cladding material, aluminium allows architects to create precise, flat, and seamless exterior surfaces that resist weather, pollution, and UV exposure for decades. Whether the project calls for a monolithic solid panel, a perforated screen, or a custom pattern, our facade panels are engineered to deliver consistent appearance and reliable performance across the entire building elevation.

Each panel is fabricated from 6063-T5 aluminium sheet and extrusions, then finished in-house with your choice of coating. PVDF coating to AAMA 2605 provides the highest level of colour and gloss retention for exposed facades. Powder coating to AAMA 2604 offers a wider RAL colour range at a competitive cost. Anodizing to Qualanod standards delivers a premium metallic finish that will not fade or chalk. All finishes are applied on our own lines, ensuring batch-to-batch colour consistency that is critical when panels are installed side by side.

Shengxin has over 30 years of aluminium extrusion expertise and manufactures facade panels entirely in-house, from sheet fabrication to final coating. This vertical integration means we control the flatness, edge detail, and finish quality of every panel. For perforated or decorative options, see our perforated aluminium curtain wall panels. For structural framing, explore our curtain wall profile system.

Features & Benefits

• Design flexibility: Available in solid, perforated, louvered, and custom patterns. Panels can be flat, curved, or folded to suit complex facade geometries.
• Lightweight and non-combustible: Aluminium panels weigh significantly less than stone or steel cladding, reducing structural loads, while achieving Class A1/A2 fire classification per EN 13501-1.
• Durable architectural finishes: PVDF (AAMA 2605), powder coating (AAMA 2604), and anodizing (Qualanod) are all applied in-house, with documented colour and gloss retention for 20+ years.
• Weather and pollution resistance: The coated aluminium surface resists rain, salt spray, industrial pollutants, and UV radiation without corrosion, chalking, or fading.

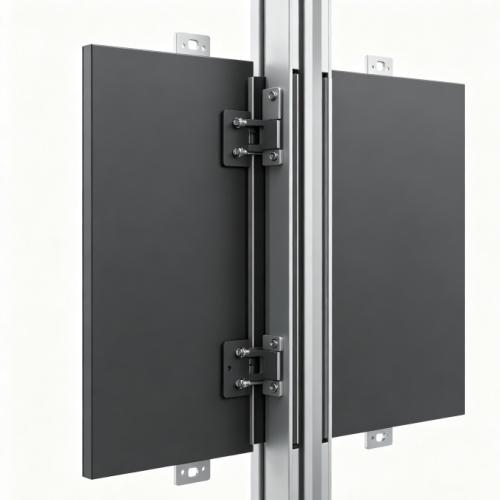

• Precision fabrication: CNC cutting, folding, and punching ensure consistent panel dimensions and clean edges, allowing fast installation with concealed fixing systems.
• Sustainable and recyclable: Aluminium is 100% recyclable at end of life, contributing to LEED and BREEAM credits and supporting circular construction practices.

Panel Types & Thickness Guide

Select the panel configuration that matches your facade design and performance requirements.

Custom thicknesses and sizes are available. Panels can be supplied with matching extrusions for framing and fixing.

Technical Specifications

These panels are part of our wider aluminum wall panels range, which also includes solid, perforated, and custom patterned options for interior and exterior applications.

Applications of Aluminium Facade Panels

• Commercial building facades: Office towers, hotels, and retail centres use aluminium panels for clean, modern elevations that resist weathering and maintain their appearance.
• Rainscreen cladding systems: The panels form the outer skin of ventilated rainscreen assemblies, protecting the building envelope while allowing drainage and airflow behind.
• Residential apartment buildings: Lightweight panels reduce structural loads on multi-storey residential projects, with colour options to suit any architectural style.
• Transport and infrastructure: Airports, railway stations, and car parks specify aluminium facade panels for their durability, low maintenance, and non-combustible properties.
• Refurbishment and over-cladding: Existing buildings can be transformed with new aluminium facades that improve thermal performance, weather resistance, and aesthetics.

Customisation & Supply Options

Why Choose Shengxin for Aluminium Facade Panels?

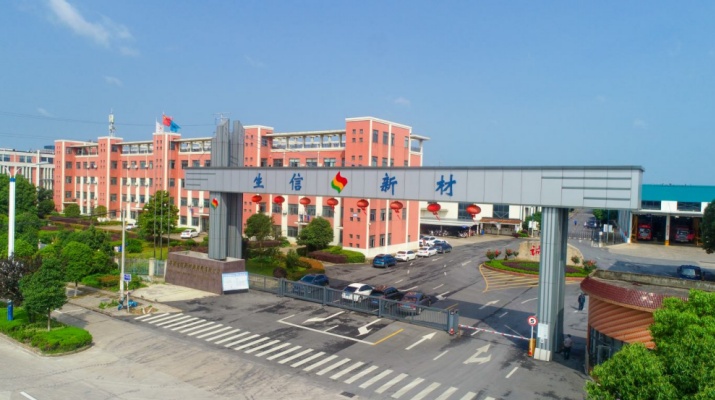

Facade panels are judged by their flatness, colour consistency, and long-term durability — three things that depend on manufacturing control. Shengxin has over 30 years of aluminium manufacturing experience and produces facade panels entirely in-house, from sheet fabrication to final coating. This means we can guarantee that every panel in your order has the same finish, the same dimensions, and the same structural quality. With $120 million in assets, 35 extrusion lines, and exports to 97 countries, we have the capacity and experience to support projects of any scale.

Related Facade Solutions: For structural framing, see our curtain wall profile system. For high-rise applications, consider our high-rise facade profiles. 5 container loading platforms ensure on-time dispatch.

Aluminium Facade Panel FAQ

Custom Aluminium Facade Panel Solutions

If your facade design requires custom panel sizes, a unique perforation pattern, or a specific finish, Shengxin's custom fabrication service can produce panels to your exact drawings, delivered with full finish documentation.

How It Works:

1. Send your design — architectural drawings, panel schedule, and finish specification.
2. Our engineers review — we assess feasibility, flatness, and structural requirements, then suggest optimisations.
3. Receive a quotation — including panel fabrication, finish cost, and lead time.
4. Approve a sample — we produce a sample panel with your finish for approval.
5. Full production — consistent quality and finish across every panel, delivered on schedule.

⚠️ Important Note: All panel images and dimensional drawings on this page are for reference only. Final dimensions, finishes, and fixing details will be confirmed based on your approved production drawings and sample panels. Please contact our engineering team to discuss your specific requirements before placing an order.

Please note: The production timelines discussed are typical estimates based on smooth design approvals and current scheduling. Actual lead times may be longer if design changes are required, multiple sample iterations are needed, or production capacity is temporarily at high demand. Your dedicated project engineer will provide updated timelines at each stage, and final delivery dates will be confirmed in your order confirmation.
